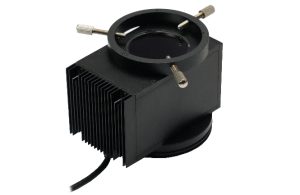

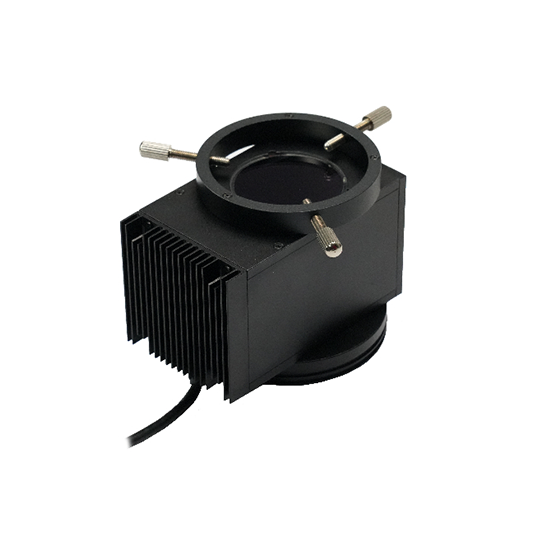

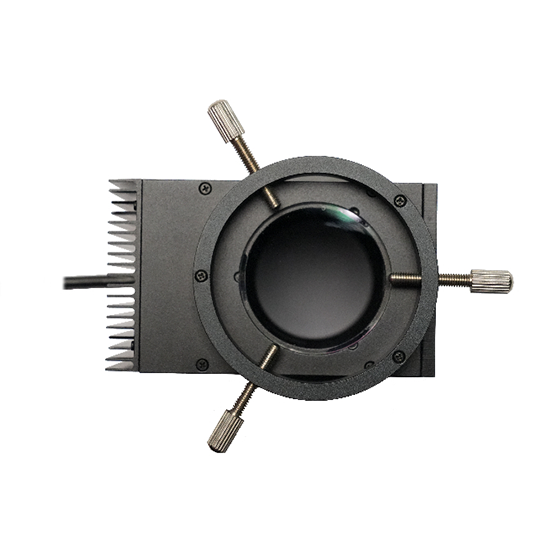

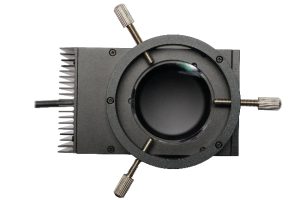

BCR-48 coaxial epi-illuminator is specifically designed for stereomicroscopes and monocular microscopes. It creatively integrates a coaxial illuminator with an LED ring light, supporting three lighting modes: coaxial illumination only, LED ring light only, and simultaneous operation of both.

The coaxial illuminator emits collimated light onto the sample in a direction aligned with the microscope’s optical axis. In this mode, scratches, cracks, foreign particles, dents, and other defects that do not produce specular reflection are clearly detectable. With a wide illumination area, it is ideal for the large field of view required by stereo microscopes. The collimated, uniform light ensures sharp, high-contrast microscopic images.

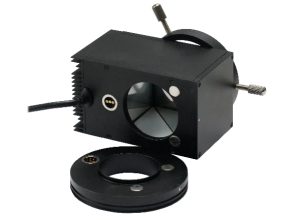

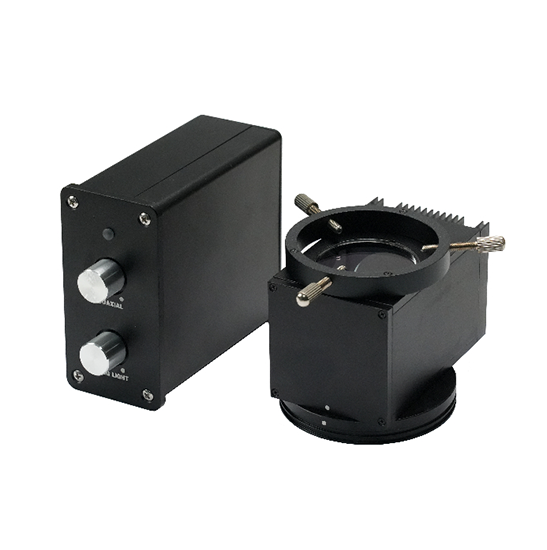

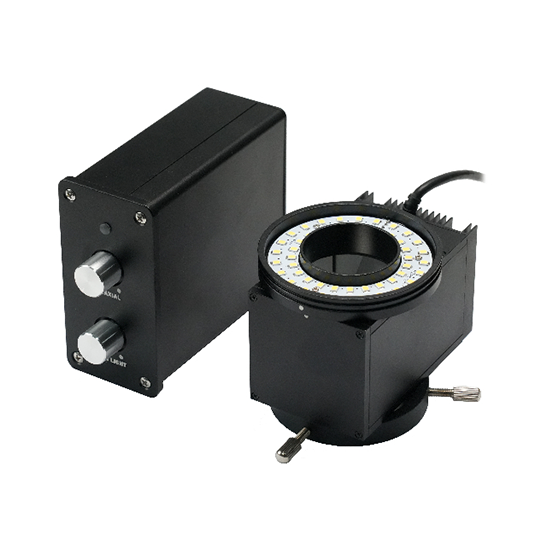

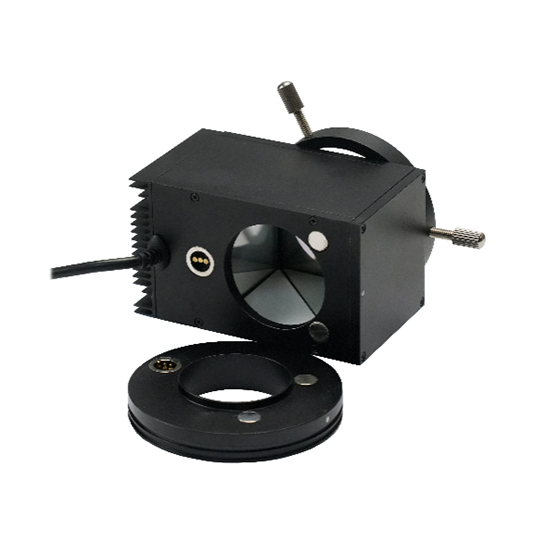

The standard-equipped LED ring light can be easily and securely attached to the bottom of the coaxial epi-illuminator via magnets, requiring no additional wiring. It can be freely attached or detached based on application needs, and its brightness is adjustable through the same control unit. By operating the controller, the brightness of the coaxial epi-illuminator and the ring light can be independently controlled, allowing for switchable observation modes.

Universal power supply (100-240V).

1.The inside lenses adopt multi-layer coating technology, which improves light transmittance, reduces image blurring caused by reflected light on the lens surface, and ensures clear imaging throughout the entire magnification range of the microscope.

2.High-quality LED chips are used as the light source, combined with a dense-tooth heat sink. This provides sufficient illumination intensity and excellent heat dissipation performance within a limited volume, endowing the coaxial illuminator with a long service life and stable color temperature.

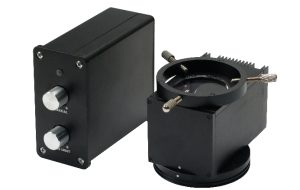

3.The housing of the dimming controller is made of aluminum profile, featuring a compact internal structure, stable construction, and a sleek and modern appearance.

4.The power controller supports continuous stepless dimming, with no flicker or noise.

5.It can be turned on and off instantly, requiring no cool-down period.

6.An external power adapter is adopted, which is compliant with safety certifications of various countries.

Optional lamps

Multiple color temperatures (white LED) and various colors of LED lamps are available as optional configurations.

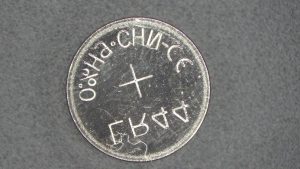

Coaxial illumination (high parallelism)

Ring lighting (low parallelism)
