What is a polarizing microscope?
A polarizing microscope converts ordinary light into polarized light, which is used to observe birefringent materials. Birefringence is a fundamental property of crystals, making polarizing microscopes widely used in fields such as geology, petrology, mineralogy, materials science, biology, medicine, and chemistry.
Featured Products
BS-5040B is equipped with an infinite optical system, a comfortable viewing head and a set of Strain-free Infinite Plan Objectives which offers a magnification range of 40X – 400X.

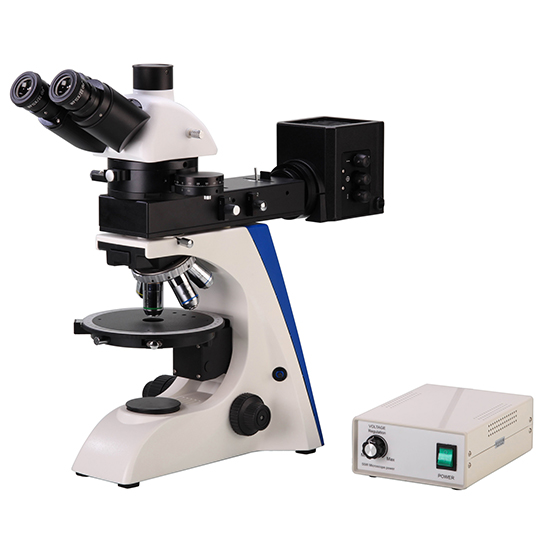

BS-5062TR with reflected illumination features a highly robust construction and first class optics to provide a long life and excellent quality images. Accessories like gypsum slide, mica slide, quartz wedge and mechanical stage are available.
BS-5064T with long working distance plan destressing objectives and professional measuring stage is based on ergonomic designs, the operation is more convenient and comfortable.
BS-5095TRF has been specially designed for laboratory and scientific research work and university education, it combines with the practical, easy operation and superior optical system, and can be used for single polarization, orthogonal polarization, conoscopic light observation.
Polarizing Microscope with Transmitted Illumination and Reflected Illumination
A polarizing microscope includes an upper polarizing system with a reflected light source and a lower polarizing system with a transmitted light source. Transmitted light is typically used in petrology(petrographic microscope), while reflected light is usually used in mineralogy(ore microscope). When both the upper and lower polarizing systems are combined, they form crossed polars, which allow for better observation of the sample’s properties, including interference colors, extinction types, and twinning features. The following polarizing microscope is equipped with both transmitted and reflected light sources.
Trinocular Head / WF10×/20 mm Eyepiece / 4X, 10X, 20X, 40X Infinite Strain Free Plan Achromatic Objective (Transmitted) / 50X LWD Infinite Strain Free Plan Achromatic Objective (Reflected) / 5W LED Transmitted Illumination / 5W LED Reflected Illumination
Trinocular Head / PL10X/22mm Eyepiece / 5X, 10X, 20X, 50X Long Working Distance Plan Destressing Objectives / 12V/50W Halogen Lamp House for Reflected Illumination / 12V/50W Halogen Lamp House for Transmitted Illumination
Trinocular Head / Plan EW10×/22mm Eyepiece / 5X, 10X, 20X, 50X, 100X Strain-Free Plan Achromatic Objective / 24V/100W Halogen Lamp House for Reflected Illumination / 24V/100W Halogen Lamp House for Transmitted Illumination
ISO9001, ISO13485, ISO14001 Management System Certificate.
Most of the products are CE certified.
Big quantity orders can be delivered in a short time.
All the products are provided with 3 years warranty.
- Gallery
- Features
- Specification
1. Perfect optical system
Excellent infinite optical system with high resolution and perfect definition. High resolution and perfect definition from infinity correct optical system. 100X water objective is available for convenient viewing.
2. Viewing head
Professional binocular head can keep the cross in the right-hand eyepiece always same when the eyepiece tubes turned.
3. Analyzer unit
Analyzer, 360° rotatable analyzer with division, can be locked and moved out of the light path.
Bertrand lens, built-in, focus adjustable.
4. Nosepiece, stage & polarizing unit
Centering nosepiece, stain-free infinity plan objective.
Rotatable 360° stage, division 1°, vernier division 6’, adjustable center which can be locked.
Polarizing unit, 360° rotatable, scaled, can be locked.
5. Mechanical stage, compensator and condenser
POL-Stage1, attached polarizing mechanical stage. Focusing needs to be adjusted first before use, which is inconvenient compared to POL-Stage 2.
POL-Stage2, attached polarizing mechanical stage, professional design for laboratory’s user to avoid objective hitting.
Compensator: quartz wedge, first class red slip, λ/4 slip.
Swing-out condenser, swing the lens in to get excellent image when using high power objective to make observation.
|
Item |
Specification |
BS-5062B (LED) |
BS-5062BR (LED) |
BS-5062BTR (LED) |
|
|
Optical System |
Infinite Optical System |
● |
● |
● |
|
|
Viewing Head |
Inclined 30° binocular tube, 360° rotatable, interpupillary distance: 48-76mm |
● |
● |
● |
|
|
Inclined 30° trinocular tube, 360° rotatable, interpupillary distance: 48-76mm, splitting ratio: eyepiece: trinocular=100:0 or 20:80 |
○ |
○ |
○ |
||
|
Eyepiece |
Wide field eyepiece WF10X/22mm, adjustable, tube diameter: 30mm |
● |
|
|
|
|
Wide field eyepiece WF10X/22mm, adjustable, with reticule 0.1mm |
● |
|
|
||
|
Wide field eyepiece WF10X/20mm, adjustable, tube diameter: 30mm |
|
● |
● |
||
|
Wide field eyepiece WF10X/20mm, adjustable, with reticule 0.1mm |
|
● |
● |
||
|
Objective |
Stain-free Infinity Plan Objectives (Transmitted) |
4X/ NA 0.10, WD=12.1mm |
● |
|
● |
|
10X/ NA 0.25, WD=4.64mm |
● |
|
● |
||
|
20X/ NA 0.40 (S), WD=2.41mm |
● |
|
● |
||
|
40X/ NA 0.66 (S), WD=0.65mm |
● |
|
● |
||
|
60X/ NA 0.80 (S), WD=0.33mm |
○ |
|
○ |
||
|
(Oil) 100X/ NA 1.25 (S), WD=0.12mm |
○ |
|
○ |
||
|
Stain-free Infinity Long Working Distance Plan Objectives (Reflected) |
5X/ NA 0.15, WD=21.0mm |
|
● |
○ |
|
|
10X/ NA 0.30, WD=20.0mm |
|
● |
○ |
||
|
20X/ NA 0.40, WD=15.0mm |
|
● |
○ |
||
|
50X/ NA 0.55, WD=10.0mm |
|
● |
● |
||
|
(Dry) 100X/ NA 0.85, WD=3.0mm |
|
○ |
○ |
||
|
Nosepiece |
Quintuple nosepiece, center adjustable |
● |
● |
● |
|
|
Analyzer Unit |
Rotatable 360°, module type, can be locked |
● |
● |
● |
|
|
Bertrand Lens |
Bertrand lens, built-in, focus adjustable. |
● |
● |
● |
|
|
Optical Compensator |
λ slip, first class red |
● |
● |
● |
|
|
1/4λ slip |
● |
● |
● |
||
|
(Ⅰ-Ⅳ Class) Quartz wedge |
● |
● |
● |
||
|
(Ⅰ-Ⅳ Class) Quartz wedge, lengthened |
○ |
○ |
○ |
||
|
Stage |
Coaxial coarse and fine focusing knobs, travel range: 25mm, fine stroke per rotation: 0.2mm, fine division: 2um. Revolving round stage, 360° rotatable, can be locked. Division 1°, vernier division 6′. Diameter Φ174mm. |
● |
|
● |
|
|
Coaxial coarse and fine focusing knobs, travel range: 25mm, fine stroke per rotation: 0.2mm, fine division: 2um. Revolving round stage, 360° rotatable, can be locked. Division 1°, vernier division 6′. Diameter Φ148mm. |
|
● |
|
||
|
POL-Stage1, Polarizing attached mechanical stage |
○ |
○ |
○ |
||
|
POL-Stage2, Polarizing attached mechanical stage, thinner, does not affect the rotation of the objective lens |
○ |
○ |
○ |
||
|
Focusing |
Coaxial coarse and fine focusing knobs, travel range: 25mm, fine stroke per rotation: 0.2mm, fine division: 2um. |
● |
● |
● |
|
|
Swing-out Condenser |
N.A.0.9/0.13 swing-out condenser |
● |
|
● |
|
|
Polarizing Unit |
with scale, 360° rotatable, can be locked |
● |
|
● |
|
|
Illumination |
Transmitted illumination: 5W LED lamp, input voltage: 100V-240V |
● |
○ |
● |
|
|
Reflected illumination: 5W LED lamp, input voltage: 100V-240V |
○ |
● |
● |
||
|
Transmitted illumination: 6V/30W Halogen lamp, input voltage: 100V-240V |
○ |
○ |
○ |
||
|
Reflected illumination: 12V/50W Halogen lamp, input voltage: 100V-240V |
○ |
○ |
○ |
||
|
Filter |
Blue filter (Φ45) |
○ |
|
○ |
|
|
Amber filter (Φ45) |
○ |
|
○ |
||
|
Green filter (Φ45) |
○ |
|
○ |
||
|
Neutral filter (Φ45) |
○ |
|
○ |
||
|
C-mount |
0.5X C-mount adapter, adjustable focus |
○ |
○ |
○ |
|
|
0.75X C-mount adapter, adjustable focus |
○ |
○ |
○ |
||
|
1X C-mount adapter, adjustable focus |
○ |
○ |
○ |
||
|
Packing |
Packing size 520mm*470mm*285mm, gross weight 12.5kgs, net weight 10kgs |
● |
|
|
|
|
Packing size 520mm*470mm*430mm, gross weight 15kgs, net weight 11.5kgs |
|
● |
|
||
|
Packing size 520mm*470mm*430mm, Gross Weight 16kgs, Net Weight 12.5kgs |
|
|
● |
||
