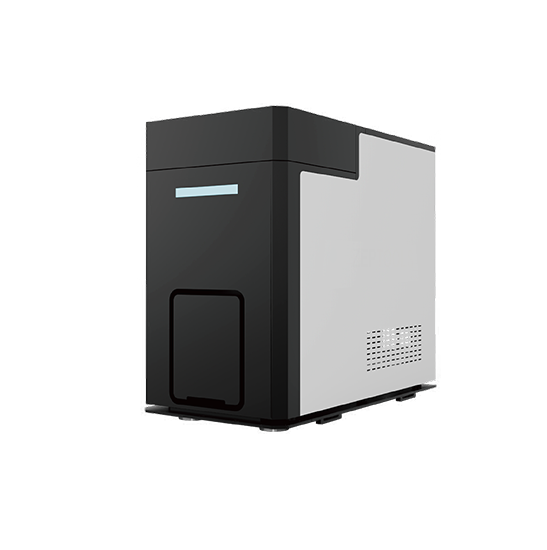

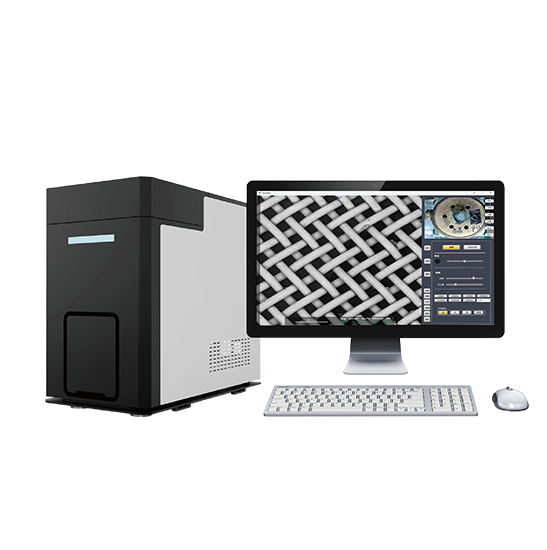

BDEM-15C Desktop Tungsten Filament Scanning Electron Microscope
Introduction
The BDEM-15C scanning electron microscope is equipped with a pre-centered tungsten filament, eliminating the need for complicated steps such as centering the diaphragm and allowing for direct image capture after focusing and dispersion.
Details
Overview
Packaging & Delivery
Packaging Details:Strong Carton with Polyfoam Protection
Port:Beijing
Lead Time:Within 2-4 Weeks after Receiving Payment
Introduction
Introduction
The BDEM-15C scanning electron microscope is equipped with a pre-centered tungsten filament, eliminating the need for complicated steps such as centering the diaphragm and allowing for direct image capture after focusing and dispersion. With integrated high voltage and control system, BDEM-15C is compact and easy to move around without any special environmental requirements, and can be operated with a stable table and power supply.
Features
- Tungsten-filament
Pre-matching tungsten filament, users can be replaced by themselves, low maintenance cost, cost-effective.
- Resolution
Up to 150,000x magnification with 10nm@15kV resolution.
- Easy to operate
User interface with different language. Plug and play. All operation can be done by one mouse.
- Compact size
Main unit size:283*553*505(mm), compact size, can be placed in the ordinary laboratory table.
- Multistage anti-vibration
Multi-stage vibration isolation, no need for additional shock absorbers.
Specification
|
Item |
Specification |
|
Environmental Requirements |
AC 220V, 50Hz, 1kW. No shock absorber required |
|
Acceleration Voltage |
5kV/10kV/15kV, three-speed adjustable |
|
Electron Gun |
Pre-centered tungsten filament, one-piece spotting scope, no need to manually adjust the objective diaphragm |
|
Magnifying Power |
150,000X |
|
Craft |
Four-division backscattered electron detector |
|
|
Secondary electron detector (optional) |
|
Stroke of Sample Stage |
X/Y motorized sample stage, moving stroke: 25mm*25mm |
|
Maximum Sample Size |
Ф50mm*35mm (H) |
|
Working Distance |
5-30mm |
|
High Vacuum Mode |
Fully automatic control, vacuuming time less than 2minutes |
|
Imaging Mode |
Video Mode: 512*512 pixels without small window scanning. Fast Scan Mode: 512*512 pixels. Slow Scan Mode: 2048*2048 pixels. Image Format: BMP, TIFF, JPEG, PNG |
|
Navigation Function |
Optical camera navigation |
|
Automatic Function |
One-touch auto-configuration of brightness, contrast, auto-focus, etc. |
|
Sizes |
Main unit: 283mm*553mm*505mm |
Note: ● Standard Outfit, ○ Optional
Sample Images
Particle detection
Fiber testing
Industrial monitoring
Anode materials for lithium battery
Powered medicine material
Diatom
Hydrogel
Aluminum nitride
Tubular nanomaterials
Functional nanomaterials
Functional inorganic material
Research and teaching
