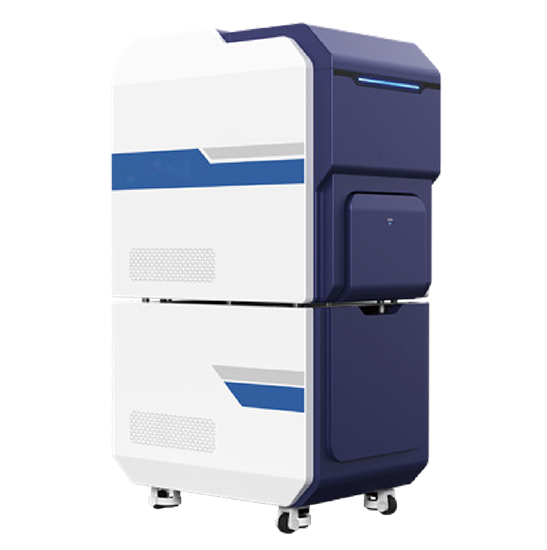

BDEM-25 Field Emission Desktop Scanning Electron Microscope
Introduction
BDEM-25 Field Emission Desktop SEM adheres to the characteristics of BDEM series of fast imaging, fully automatic operation, excellent seismic performance and stable performance. It can be equipped with backscattered electron imaging, secondary electron imaging, EDS, and EBSD functions in one desktop field emission SEM. The high-brightness Schottky field-emitting electron source makes it easy for users to obtain high-resolution images.
Details
Overview
Packaging & Delivery
Packaging Details:Strong Carton with Polyfoam Protection
Port:Beijing
Lead Time:Within 2-4 Weeks after Receiving Payment
Introduction
Introduction
BDEM-25 Field Emission Desktop SEM adheres to the characteristics of BDEM series of fast imaging, fully automatic operation, excellent seismic performance and stable performance. It can be equipped with backscattered electron imaging, secondary electron imaging, EDS, and EBSD functions in one desktop field emission SEM. The high-brightness Schottky field-emitting electron source makes it easy for users to obtain high-resolution images.
Features
1.Fully automatic operation.
2.Easy to use.
3.Schottky field fires electron guns.
4.High stability.
5.High-resolution observation.
6.Rich expanding.
Specification
|
Item |
Specification |
|
Resolution |
<2nm |
|
Magnification |
500,000X |
|
Image Pixel Size (Default) |
Video: 512*512 Image: 2048*2048 |
|
Acceleration Voltage |
15kV continuously adjustable |
|
Filament Type |
Field emission filament |
|
Magnification |
XY 2-axis/XYZ 3-axis/XYT 3-axis/5-axis |
|
Detector |
BSE |
|
|
SE |
|
|
EDS |
|
Deceleration Mode |
Optional (0-10kV stage voltage deceleration) |
|
Optical navigation |
Optical navigation, warehouse camera |
|
Internal Dimensions of the Sample Chamber |
185mm (L)*176mm (W)*125mm (H) |
|
Automatic Function |
Auto brightness contrast, auto focus, large picture stitching |
|
In-situ Stage Expansion Function |
Equip |
Note: ● Standard Outfit, ○ Optional
Sample Images

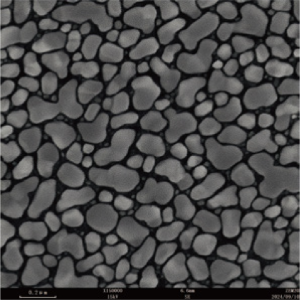

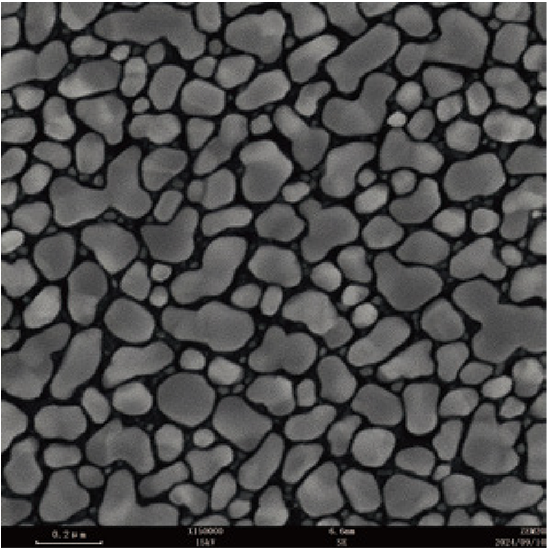

Gold particle 150,000X

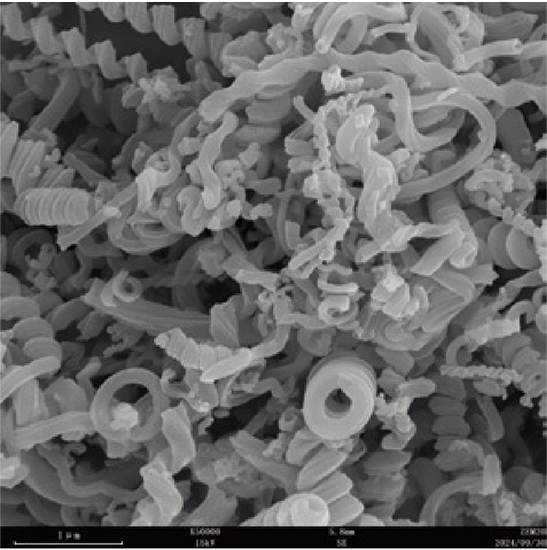

Carbon nanotubes 50,000X

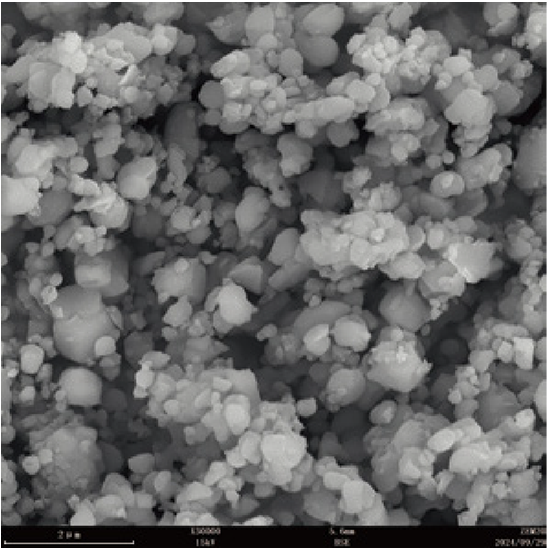

Lithium iron phosphate 30,000X

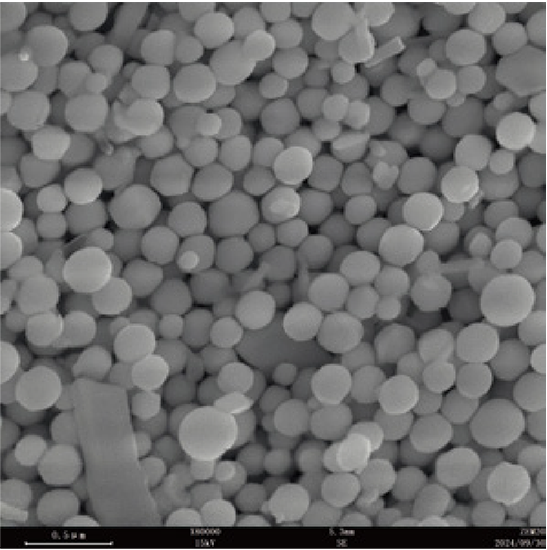

Silicon dioxide 80,000X
