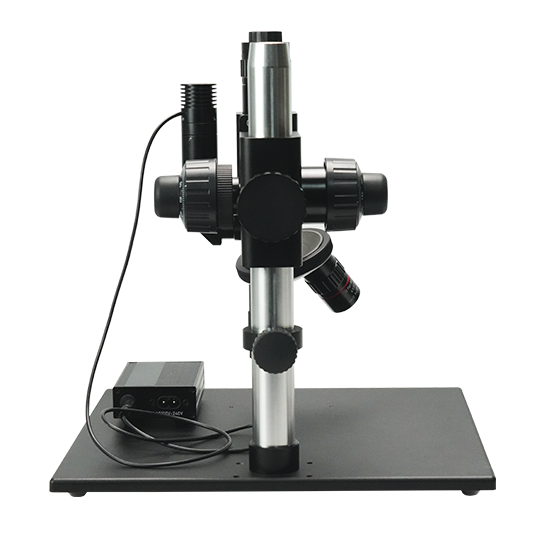

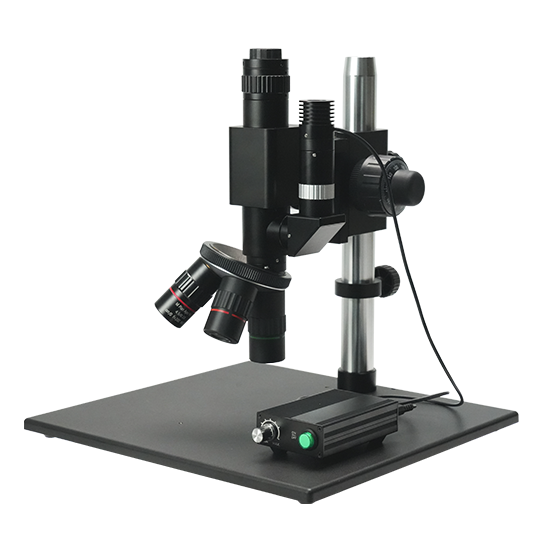

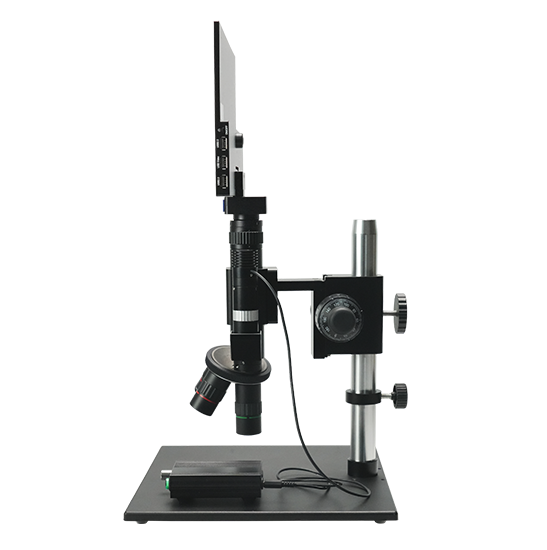

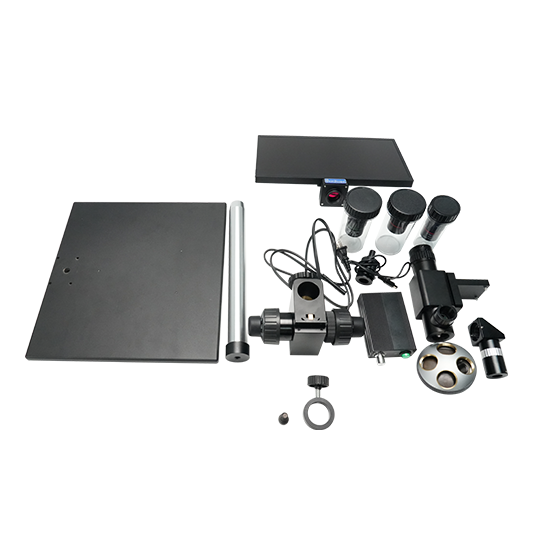

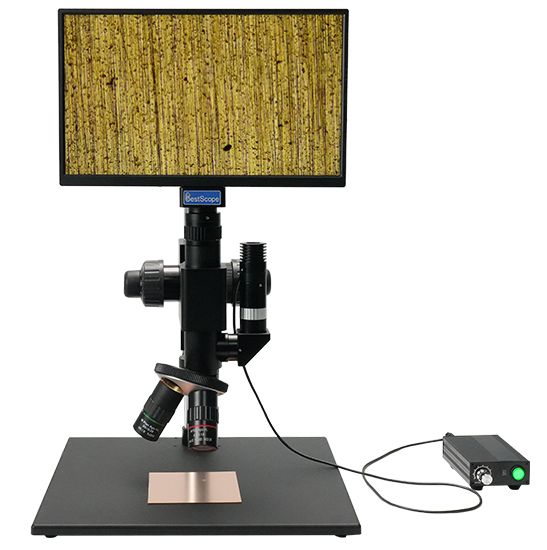

BLM5-1200A LCD Digital Video Metallurgical Microscope
Introduction
BLM5-1200A Video Metallurgical Microscope adopts apochromatic optical system. There are variety of accessories for option, including coaxial device, stand and focus arm, objectives, illuminators, etc.
Details
Overview
Packaging & Delivery
Packaging Details:Strong Carton with Polyfoam Protection
Port:Beijing
Lead Time:Within 2-4 Weeks after Receiving Payment
Introduction
Introduction
BLM5-1200A Video Metallurgical Microscope adopts apochromatic optical system. There are variety of accessories for option, including coaxial device, stand and focus arm, objectives, illuminators, etc.
BLM5-1200A adopts a multifunctional all-in-one camera that integrates a 13.3-inch display screen of resolution 1920*1080, with HDMI2.0, USB2.0 and WIFI multi output. It can capture 8M (3840*2160) pictures, 4K videos and do measurement, controlled with mouse.
BLM5-1200A is a combination of BTL200AMM without BWHC4-4KAF8MPA camera, and BLC-480B all-in-one camera.
Features

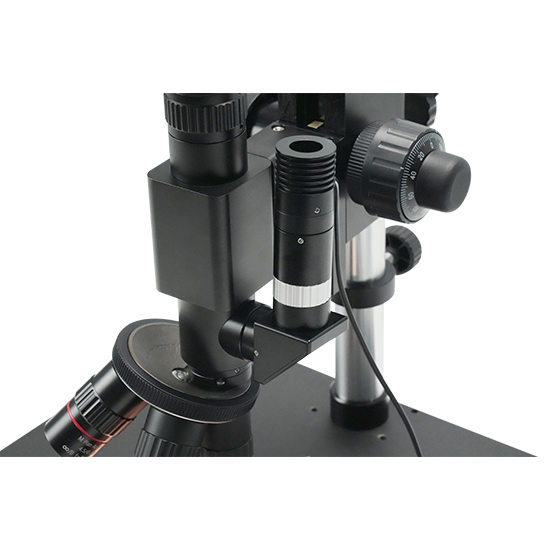

There are linear coaxial device and L-type coaxial device. L-type coaxial device with iris adjustable, adjustment range: φ0.5-φ12. Coaxial illuminator can be used with LED point light or optical fiber.
It can be equipped with long working distance plan APO objective for better observation.
Specification
|
Item |
Specification |
BLM5-1200A |
|
Optical System |
Apochromatic optical system |
● |
|
Magnification |
1X |
● |
|
Thread Size of Objective |
M26*0.706 |
● |
|
Focal Length |
F”=200mm |
● |
|

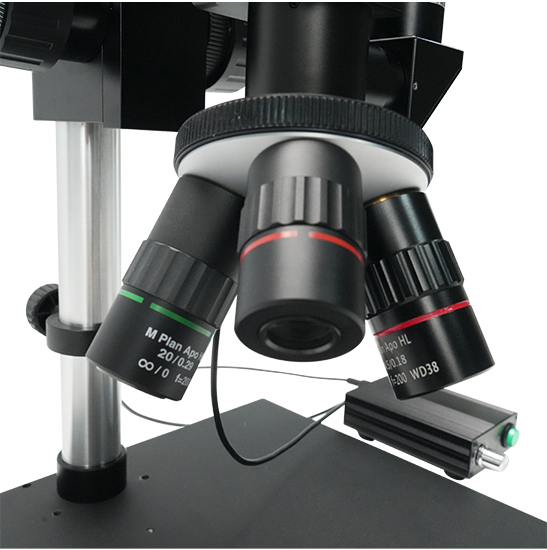

Nosepiece |
Quadruple nosepiece, 26mm thread |
● |
|
LCD Digital Camera |
BLC-480B LCD digital camera with HDMI2.0, USB2.0 and WIFI multi output, 30fps@4K or 60fps@1080P, can capture 8M (3840*2160) pictures, 4K videos and do measurement, control with mouse. With 13.3 inch LCD screen, resolution 1920*1080. |
● |
|
Infinite LWD Plan Achromatic Metallurgical Objective (MA200A) |
2.5X/ NA=0.07, WD=11mm |
○ |
|
5X/ NA=0.12, WD=26.1mm |
○ |
|
|
10X/ NA=0.25, WD=20.2mm |
○ |
|
|
20X/ NA=0.4, WD=8.8mm |
○ |
|
|
40X/ NA=0.6, WD=3.98mm |
○ |
|
|
50X/ NA=0.7, WD=3.68mm |
○ |
|
|
60X/ NA=0.75, WD=1.22mm |
○ |
|
|
60X/ NA=0.75, WD=3.18mm |
○ |
|
|
80X/ NA=0.8, WD=1.25mm |
○ |
|
|
100X/ NA=0.85, WD=0.4mm |
○ |
|
|
Infinite LWD Plan Apochromatic Objectives (LWD M APO200A) |
2X/ NA=0.055, WD=34.6mm |
○ |
|
3.5X/ NA=0.1, WD=40.93mm |
○ |
|
|
5X/ NA=0.13, WD=44.5mm |
○ |
|
|
10X/ NA=0.28, WD=34mm |
○ |
|
|
20X/ NA=0.29, WD=31mm |
○ |
|
|
50X/ NA=0.42, WD=20.1mm |
○ |
|
|
Infinite LWD Plan Apochromatic Objectives (LWD M APO200B) |
2X/ NA=0.075, WD=50mm |
● |
|
4X/ NA=0.15, WD=36mm |
○ |
|
|
4.5X/ NA=0.18, WD=38mm |
● |
|
|
20X/ NA=0.35, WD=29mm |
● |
|
|
Coaxial light Device |
Coaxial device, does not include light source |
○ |
|
L-Type Coaxial Device with iris diaphragm, light input port Φ11mm, does not include light source |
● |
|
|
Ring Light |
BAL-80A LED Ring light, brightness adjustable |
○ |
|
BAL-52AP LED polarizing ring light, brightness adjustable |
○ |
|
|
BAL-52ASL LED side ring light, brightness adjustable |
○ |
|
|
BAL-228A Four-zone lighting control separately big area LED ring light |
○ |
|
|
BAL-228AG LED four-zone ring light with frosted glass |
○ |
|
|
BAL-16P LED polarizing ring light, brightness adjustable |
○ |
|
|
BAL-52A LED Ring light, brightness adjustable |
○ |
|
|
Back Light |
BTL-60A LED back light |
○ |
|
Point Light |
BPL-3A LED point light, 3W, brightness adjustable. |
● |
|
BPL-3MC LED multi color point light, 3W, white, purple, blue, yellow, red, green and mixed light, brightness adjustable |
○ |
|
|
BPL-4A LED point light with numerically adjustable light adapter, 4W, brightness adjustable |
○ |
|
|
Bar Light |
BBL-5A bar LED illuminator, 60 LED, 12V/5W |
○ |
|
Cold Light Source |
BSL-3B LED light source with dual goose neck light guide, 6.5W |
○ |
|
BSL-15A-2 Cold LED light source with Dual Light Guide, 15W LED lamp |
○ |
|
|
BSL2-150A-2 Cold light source with Dual Light Guide, 21V/150W Halogen lamp |
○ |
|
|
Stage |
BMS-302 X-Y moving stage |
○ |
|
BMS-303 X-Y moving stage |
○ |
|
|
BMS-311 X-Y measuring stage |
○ |
|
|
BMS-316A X-Y measuring stage |
○ |
|
|
BMS-316B X-Y measuring stage |
○ |
|
|
BMS-400A large working stage |
○ |
|
|
BMS-260A XY working stage |
○ |
|
|

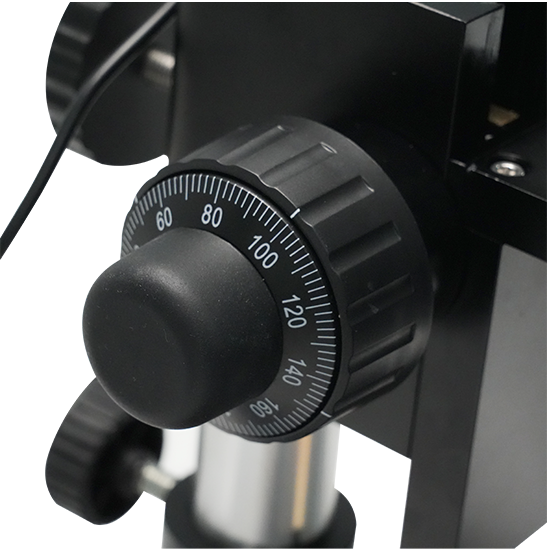

Stand and focus Arm |
BA1 Round type column plain stand with coarse focus arm. Stroke: 50mm. |
○ |
|
BA2 Round type column plain stand with coarse focus arm, transmitted 12V/5W LED illumination, brightness adjustable. Stroke: 50mm. |
○ |
|
|
BA3 Round type column plain stand with coarse and fine focus arm. Stroke: 67mm, fine precision: 0.002mm. |
● |
|
|
BA4 Round type column plain stand with coarse and fine focus arm, transmitted 12V/5W LED illumination, brightness adjustable. Stroke: 67mm, fine precision: 0.002mm. |
○ |
|
|
BA5 Square type column plain stand with coarse focus arm. Stroke: 150mm. |
○ |
|
|
BA6 Square type column plain stand with coarse focus arm, transmitted 12V/5W LED illumination, brightness adjustable. Stroke: 150mm. |
○ |
|
|
BA7 Square type column plain stand with coarse and fine focus arm. Stroke: 260mm, fine precision: 0.002mm. |
○ |
|
|
BA8 Square type column plain stand with coarse and fine focus arm, transmitted 12V/5W LED illumination, brightness adjustable. Stroke: 260mm, fine precision: 0.002mm. |
○ |
|
|
BA9 multi-angle column plain stand with coarse focus arm. Stroke: 60mm. |
○ |
|
|
BA10 multi-angle column plain stand with coarse and fine focus arm. Stroke: 60mm, fine precision: 0.002mm. |
○ |
|
|
BA11 universal boom stand with coarse focus arm. Column height: 320mm, horizontal column length: 340mm, Φ32mm, 360° rotatable. Base size: 330mm*300mm. Stroke: 50mm. |
○ |
|
|
BA12 universal boom stand with coarse and fine focus arm. Column height: 320mm, horizontal column length: 340mm, Φ32mm, 360° rotatable. Base size: 330mm*300mm. Stroke: 65mm, fine precision: 0.002mm. |
○ |
|
|
BA13 Round type column large plain stand with coarse focus arm. Column height: 320mm, Φ25mm, stroke: 50mm, base size: 380mm*260mm. Gross weight: 1.5kg. |
○ |
|
|
BFA-1 coarse focus arm. Stroke: 50mm. |
○ |
|
|
BFA-2 coarse and fine focus arm. Stroke: 65mm, fine precision: 0.002mm. |
○ |
|
|
BFA-3 multi-angle coarse focus arm, angle adjustable. Stroke: 50mm. |
○ |
|
|
BFA-4 multi-angle coarse and fine focus arm, angle adjustable. Stroke: 60mm, fine precision: 0.002mm. |
○ |
|
|
BFA-5 electric coarse and fine focus arm, supporting manual focusing and electric focusing. It has 5 preset positions, paired with 5 different magnification objectives. Stroke: 65mm, fine precision: 0.005mm. |
○ |
|
|
BFA-6 N interface coarse focus arm. Stroke: 50mm. |
○ |
|
|
BFA-7 N interface coarse and fine focus arm. Stroke: 65mm, fine precision: 0.002mm. |
○ |
Note: ●Standard Outfit, ○Optional
|
Order Code |
Sensor & Size (mm) |
Pixel (μm) |
G Sensitivity Dark Signal |
FPS/Resolution ADC |
Binning |
Exposure |
|
BLM5-1200ALCD1 |
Sony IMX678(C) |
2.0×2.0 |
1364mv with 1/30s |
30@3840*2160 |
1×1 |
0.04~1000 |
|
Order Code |
Video Saving (FPS/Resolution) |
HDMI2.0 (FPS/Resolution) |
USB2.0 (FPS/Resolution) |
WiFi (FPS/Resolution) |
|
BLM5-1200ALCD1 |
30@3840*2160 |
30@3840*2160 |
30@3840*2160 |
30@3840*2160 |

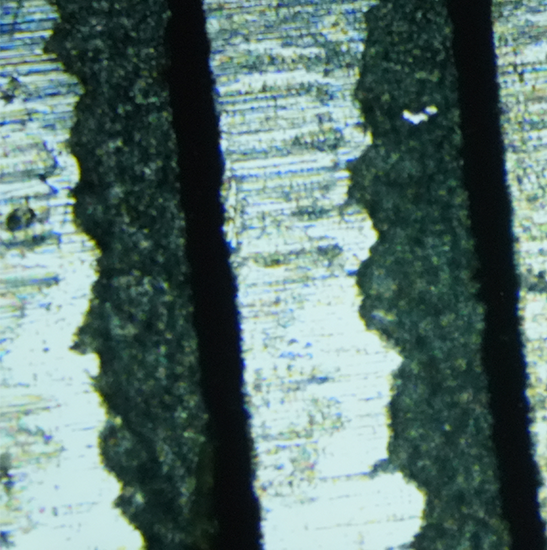

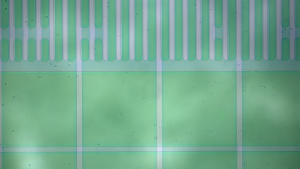

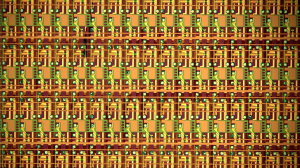

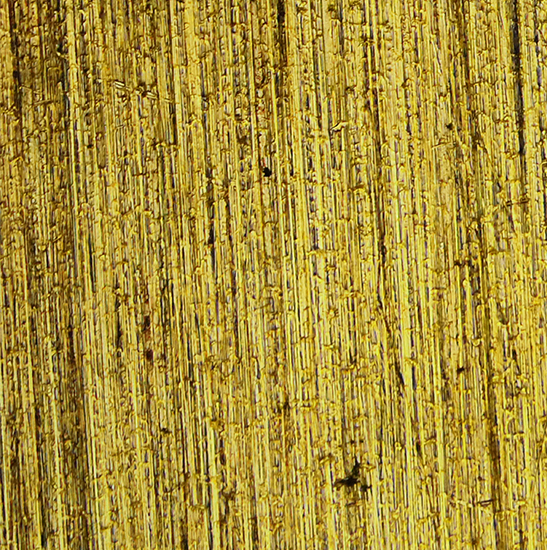

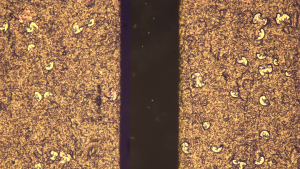

Sample Image
