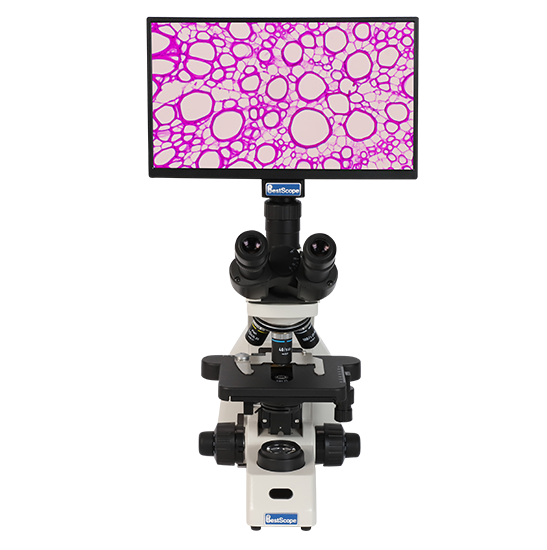

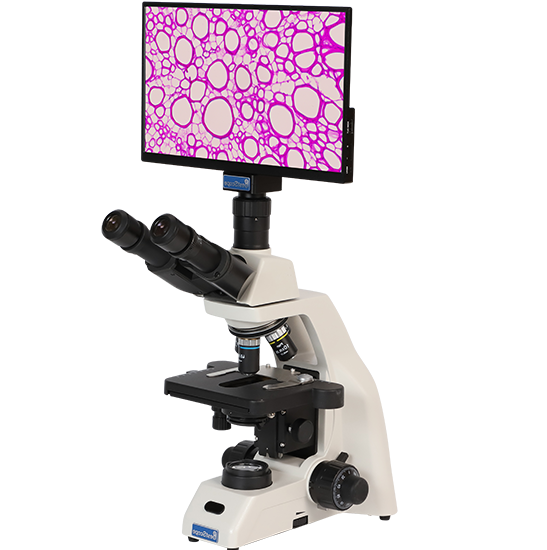

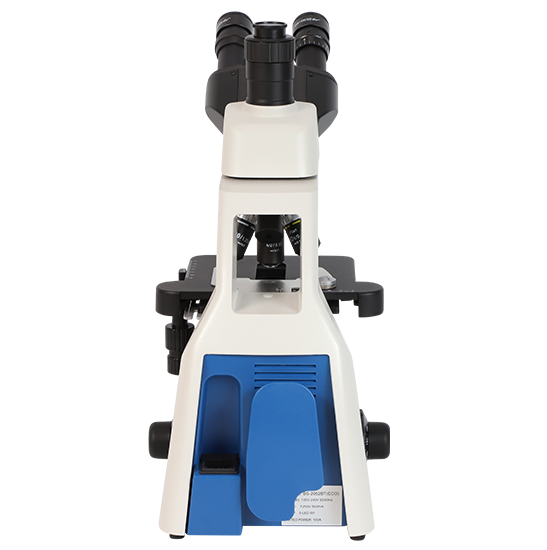

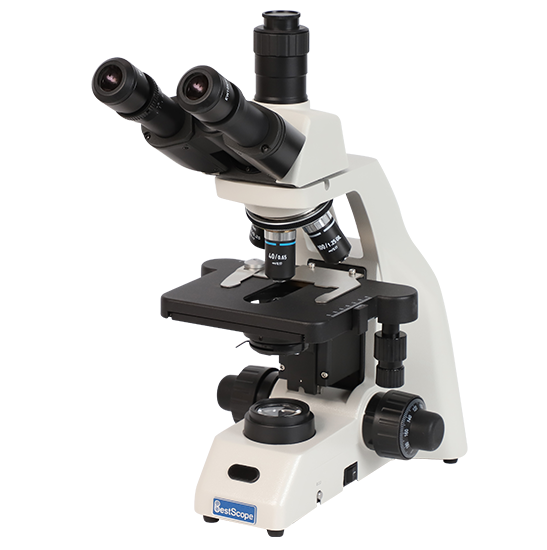

BLM5-252 LCD Digital Biological Microscope
Introduction
BLM5-252 LCD Digital Biological Microscope is classical biological microscopes with ingenious stand, high-definition optical system, sharp image and comfortable operation, which make your work much enjoyable.
Details
Overview
Packaging & Delivery
Packaging Details:Strong Carton with Polyfoam Protection
Port:Beijing
Lead Time:Within 2-4 Weeks after Receiving Payment
Introduction
Introduction
BLM5-252 LCD Digital Biological Microscope is classical biological microscopes with ingenious stand, high-definition optical system, sharp image and comfortable operation, which make your work much enjoyable.

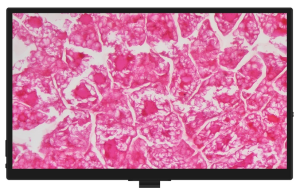

BLM5-252 adopts a multifunctional all-in-one camera that integrates a 13.3-inch display screen of resolution 1920*1080, with HDMI2.0, USB2.0 and WIFI multi output. It can capture 8M (3840*2160) pictures, 4K videos and do measurement, controlled with mouse.
BLM5-252 is a combination of BS-2052BT and BLC-480B all-in-one camera.
Features
1.High contrast and sharp image with high quality optical system.
2.Low environment requirement with anti-mold technology.
3.Comfortable operation with low position coarse and fine adjustment knobs.

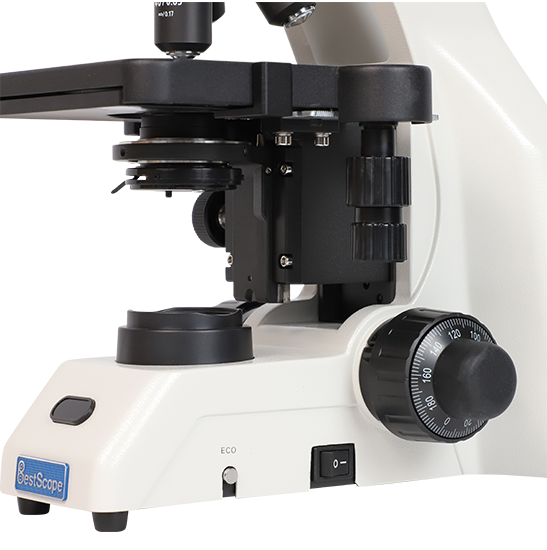

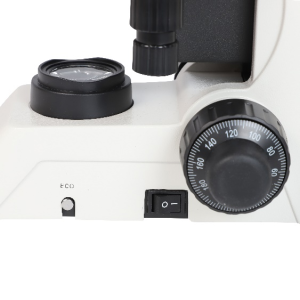

4.ECO function is optional, automatically turn off after 15 mins of no use.

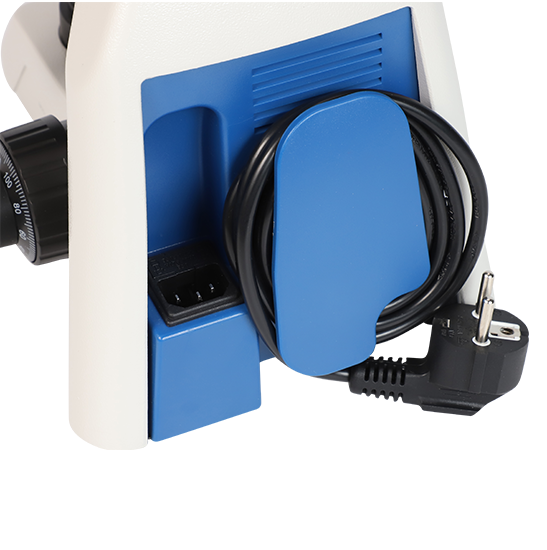

5.With cord rest on the back, making the working table clean and tidy.
6.BLM5-252 adopts a multifunctional all-in-one camera that integrates a 13.3-inch display screen of resolution 1920*1080, with HDMI2.0, USB2.0 and WIFI multi output. It can capture 8M (3840*2160) pictures, 4K videos and do measurement, controlled with mouse.
Application
BLM5-252 LCD Digital Biological Microscope is ideal instruments in biological, pathological, histological, bacterial, immune, pharmacological and genetic fields. They can be widely used in medical and sanitary establishments, such as hospitals, clinics, laboratories, medical academies, colleges, universities and related research centers.
Specification
|
Item |
Specification |
BLM5-252 |
|
Optical System |
Infinite Optical System |
● |
|
LCD Digital Camera |
BLC-480B LCD digital camera with HDMI2.0, USB2.0 and WIFI multi output, 30fps@4K or 60fps@1080P, can capture 8M (3840*2160) pictures, 4K videos and do measurement, control with mouse. With 13.3 inch LCD screen, resolution 1920*1080. |
● |
|
Eyepiece |
WF10×/20mm |
● |
|
Viewing Head |

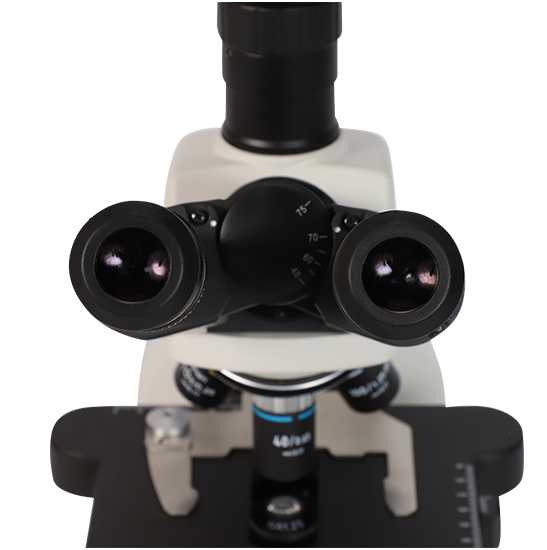

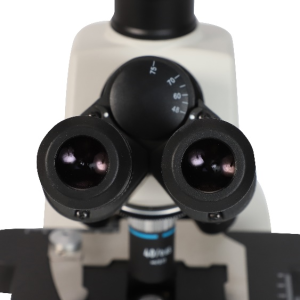

Seidentopf trinocular head, inclined at 30°, interpupillary distance: 47-78mm |
● |
|

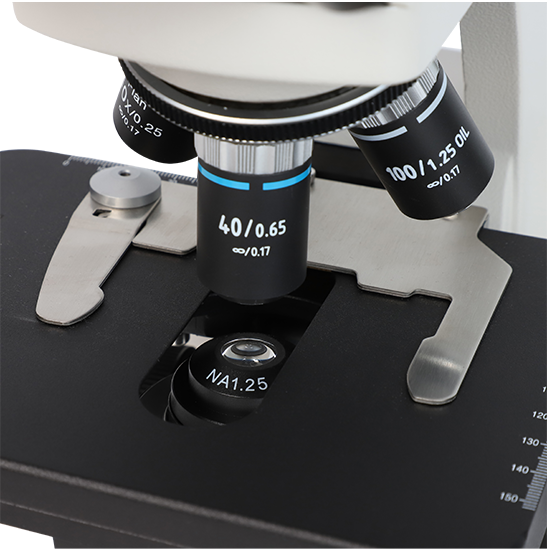

Objective |

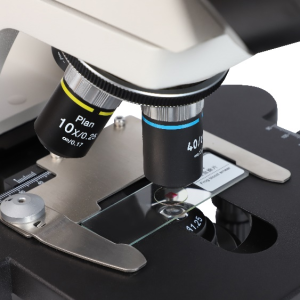

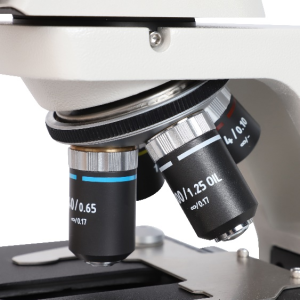

Infinite Semi-Plan Achromatic Objectives 4×, 10×, 40×, 100× |
● |
|
Infinite Plan Achromatic Objectives 2×, 4×, 10×, 20×, 40×, 60×, 100× |
○ |
|
|
Infinite Plan Fluorescent Objective 4×, 10×, 20×, 40×, 100× |
○ |
|
|
Nosepiece |
Backward Quadruple Nosepiece |
● |
|
Backward Quintuple Nosepiece |
○ |
|
|
Stage |

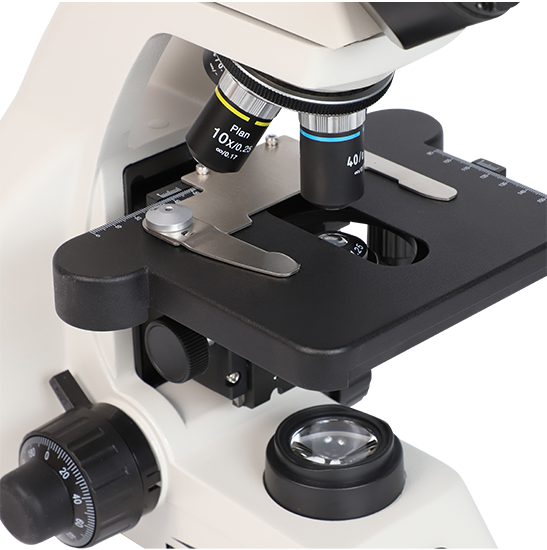

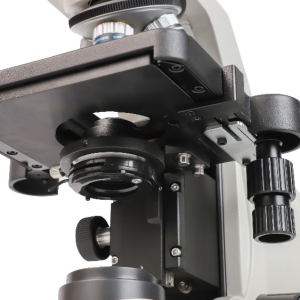

Double layers mechanical stage 140mm*140mm, moving range 75mm*50mm |
|
|
Rackless double layers mechanical stage 150mm*139mm, moving range 75mm*52mm |
● |
|
|
Condenser |
Abbe condenser NA1.25 |
● |
|
Dark field condenser (Dry / Oil) |
○ |
|
|
Focusing |

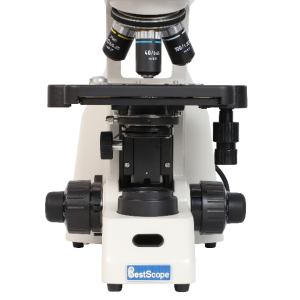

Coaxial coarse and fine adjustment, fine division 0.002mm, moving range 25mm |
● |
|

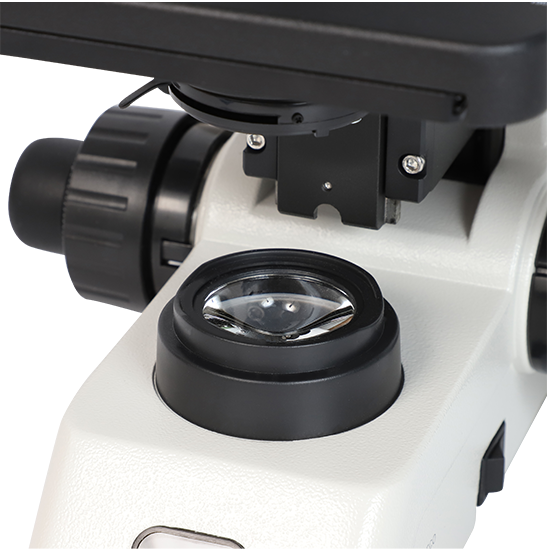

Illumination |

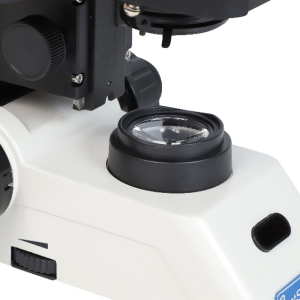

S-LED illumination, brightness adjustable |
● |
|
S-LED illumination with rechargeable battery, brightness adjustable |
○ |
|
|
6V/20W halogen lamp, brightness adjustable |
○ |
|
|
Kohler illumination |
○ |
|
|
ECO function, automatically turn off after 15 mins of no use |
○ |
|
|
Plane-concave mirror |
○ |
|
|
Optional accessories |
Phase contrast kit |
○ |
|
Polarizing set |
○ |
|
|
FL-LED Epi-fluorescent attachment |
○ |
Note: ●Standard Outfit, ○Optional
|
Order Code |
Sensor & Size (mm) |
Pixel (μm) |
G Sensitivity Dark Signal |
FPS/Resolution ADC |
Binning |
Exposure |
|
BLM5-252 |
Sony IMX678(C) |
2.0×2.0 |
1364mv with 1/30s |
30@3840*2160 |
1×1 |
0.04~1000 |
|
Order Code |
Video Saving (FPS/Resolution) |
HDMI2.0 (FPS/Resolution) |
USB2.0 (FPS/Resolution) |
WiFi (FPS/Resolution) |
|
BLM5-252 |
30@3840*2160 |
30@3840*2160 |
30@3840*2160 |
30@3840*2160 |

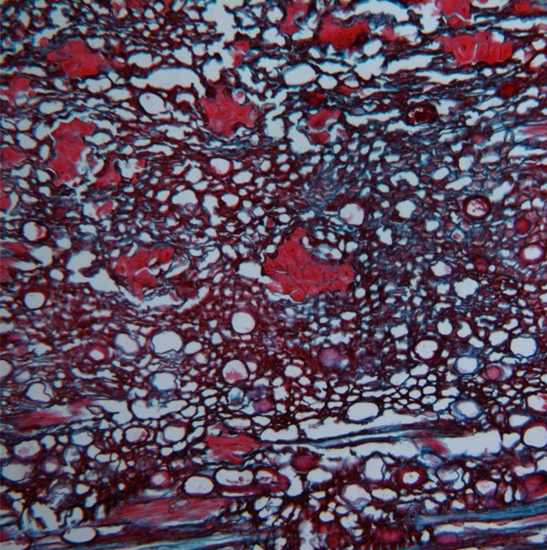

Sample Image

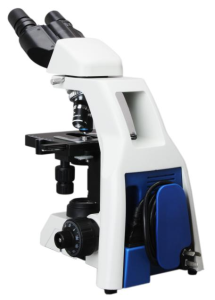

Dimension
