BS-1008LCD3 LCD Digital Zoom Monocular Microscope
Introduction

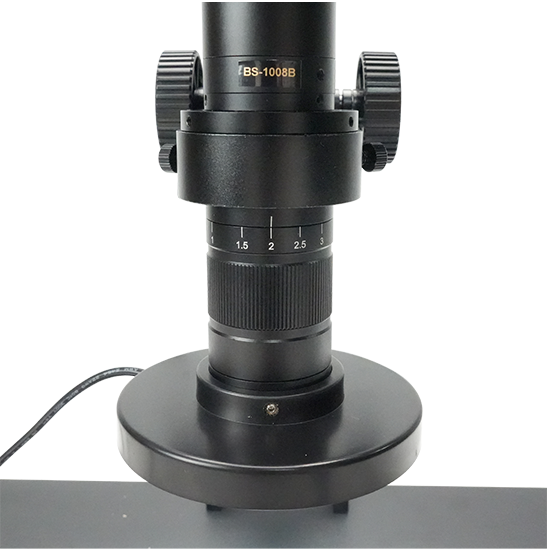

The main body of BS-1008LCD1/2/3/4 adopts semi-apochromatic parallel optical imaging system, and uses advanced multi-layer coating technology, which perfectly correct the imaging on the edge of field of view, get high-resolution and high contrast images, and naturally restore the true colors of observed objects. It has 0.7X to 5.6X zoom range and 1:8 zoom ratio. It is a high-quality precision Monocular Zoom Objective that provides high resolution and large depth of field.
Details
Overview
Packaging & Delivery
Packaging Details:Strong Carton with Polyfoam Protection
Port:Beijing
Lead Time:Within 1-2 Weeks after Receiving Payment
Introduction
Introduction
The main body of BS-1008LCD1/2/3/4 adopts semi-apochromatic parallel optical imaging system, and uses advanced multi-layer coating technology, which perfectly correct the imaging on the edge of field of view, get high-resolution and high contrast images, and naturally restore the true colors of observed objects. It has 0.7X to 5.6X zoom range and 1:8 zoom ratio. It is a high-quality precision Monocular Zoom Objective that provides high resolution and large depth of field.

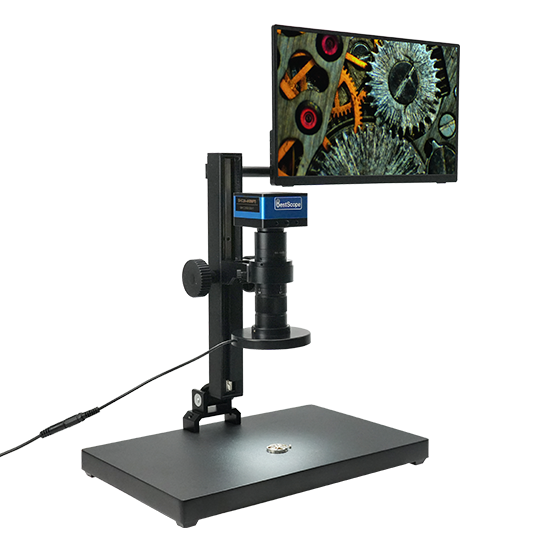

BS-1008LCD LCD Digital Zoom Monocular Microscope adopts a HDMI camera with HDMI1.4 output and a 15.6-inch display screen of resolution 1920*1080. BS-1008LCD1/2 can capture 8M (3840*2160) pictures, 4K videos and do measurement, controlled with mouse. BS-1008LCD3/4 can capture 2M (1920*1080) pictures, 1080P videos and do measurement, controlled with mouse.

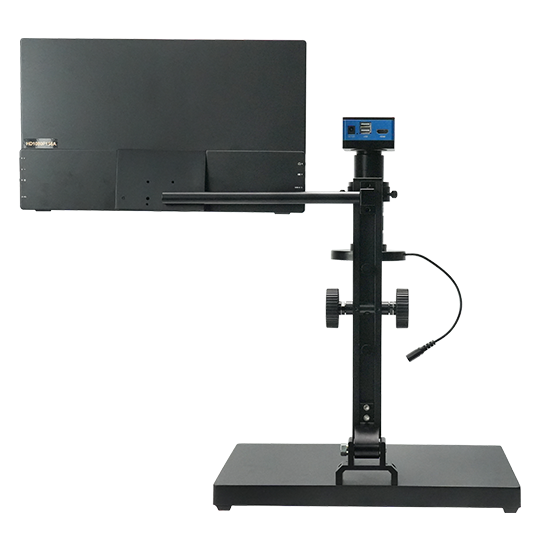

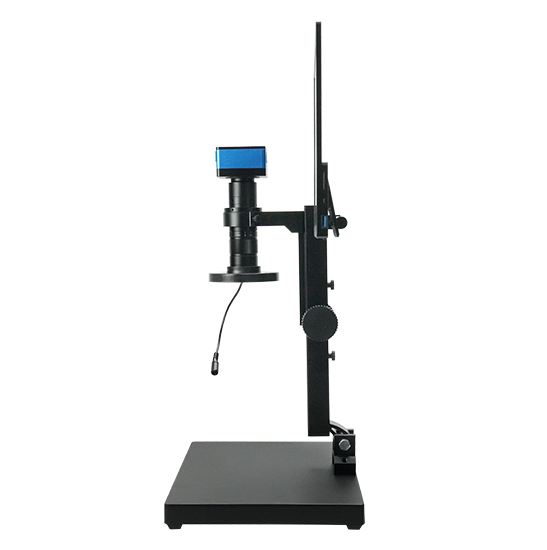

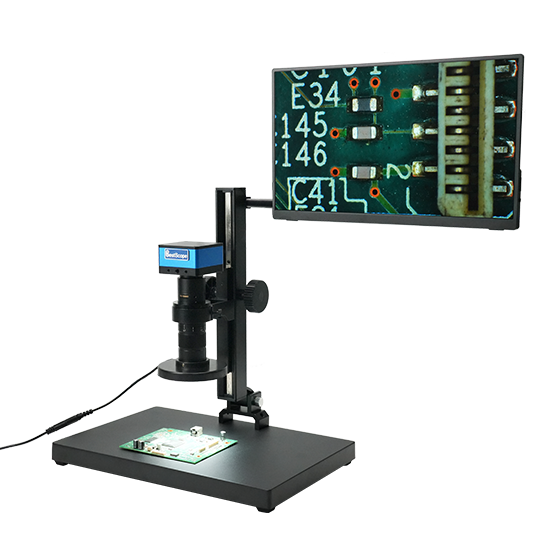

BS-1008LCD1 is a combination of BS-1008B with 0.75X C-mount adapter and 0.75 auxiliary lens, BAL3-40A ring light, BS-210A stand with cross arm, BHC2A-4K8MPA HDMI digital camera and HD1080P156A LCD screen.
BS-1008LCD2 is a combination of BS-1008B with 0.75X C-mount adapter and 0.75 auxiliary lens, BAL3-40A ring light, BS-210A stand with cross arm, BHC2A-4K8MPB HDMI digital camera and HD1080P156A LCD screen.
BS-1008LCD3 is a combination of BS-1008B with 0.75X C-mount adapter and 0.75 auxiliary lens, BAL3-40A ring light, BS-210A stand with cross arm, BHC2A-1080P2MPA HDMI digital camera and HD1080P156A LCD screen.
BS-1008LCD4 is a combination of BS-1008B with 0.75X C-mount adapter and 0.75 auxiliary lens, BAL3-40A ring light, BS-210A stand with cross arm, BHC2A-1080P2MPB HDMI digital camera and HD1080P156A LCD screen.
Features
The main features are shown below:
1.Provide basic zoom objectivewith 0.7X~5.6X zoom range.
2.Large optical zoom ratio: 1:8.
3.Larger NA: 0.013-0.069 (When using 75XAuxiliary Lens).
4.Larger field of view: 0.99mm-31.74mm(Object plane).
5.Larger sensor size: 1/8” (When using 0.75XTV Lens).
6.Working distance: 37.5mm-160mm.
7.Parfocal in zoom range.
8.Compatible with infinity objectives (both biological and metallographic).
9.Compact size: 150 mm (length) × 40 mm (diameter) .
10.Auxiliary Lens with 0.50x, 0.75x, 1.00x, 1.50x and 2.00x magnification (Optional).
11.TV Lens with 0.50x, 0.75x, 1.00x, 1.50x and 2.00x magnification (Optional).

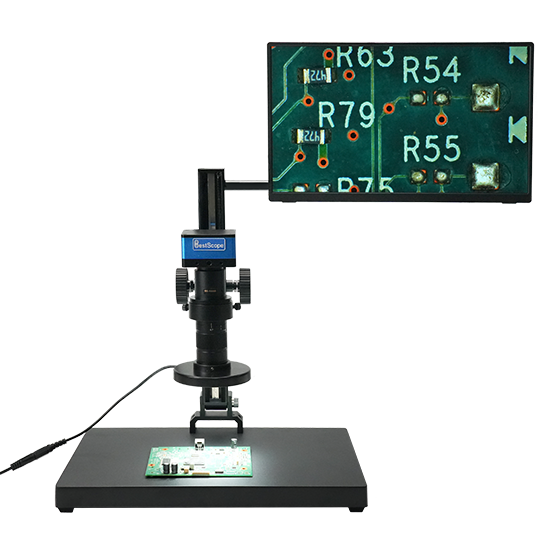

12.15.6-inch display screen of resolution 1920*1080, on the stand with cross arm.
13.HDMI color digital camera with HDMI4. Itcan capture pictures, record videos and do measurement, control with mouse.
Specification
|
Item |
Specification |
BS-1008LCD1 |
BS-1008LCD2 |
BS-1008LCD3 |
BS-1008LCD4 |
|
Optical System |
Semi-apochromatic parallel optical system |
● |
● |
● |
● |
|
Zoom Lens |
Optical zoom magnification: 0.7X-5.6X (without click stop) |
○ |
○ |
○ |
○ |
|
Optical zoom magnification: 0.7X-5.6X (with click stop) |
● |
● |
● |
● |
|
|
Zoom ratio |
1:8 |
● |
● |
● |
● |
|
Mounting Size |
Φ40mm |
● |
● |
● |
● |
|
LCD Screen |
HD1080P156A LCD screen, 15.6inch HDMI Displayer, 1080P |
● |
● |
● |
● |
|
HDMI Digital Camera |
BHC2A-4K8MPA HDMI color digital camera with HDMI1.4. Sensor size 1/1.8”. 30fps@4K or 30fps@1080P, can capture 8M (3840*2160) pictures, 4K videos and do measurement, control with mouse. |
● |
|
|
|
|
BHC2A-4K8MPB HDMI color digital camera with HDMI1.4. Sensor size 1/2.8”. 30fps@4K or 30fps@1080P, can capture 8M (3840*2160) pictures, 4K videos and do measurement, control with mouse. |
|
● |
|
|
|
|
BHC2A-1080P2MPA HDMI color digital camera with HDMI1.4. Sensor size 1/2”. 60fps@1080P, can capture 2M (1920*1080) pictures, 1080P videos and do measurement, control with mouse. |
|
|
● |
|
|
|
BHC2A-1080P2MPA HDMI color digital camera with HDMI1.4. Sensor size 1/2.8”. 60fps@1080P, can capture 2M (1920*1080) pictures, 1080P videos and do measurement, control with mouse. |
|
|
|
● |
|
|
C-mount Adapter |
1.0X C-mount adapter |
○ |
○ |
○ |
○ |
|
0.5X C-mount adapter |
○ |
○ |
○ |
○ |
|
|
0.75X C-mount adapter |
● |
● |
● |
● |
|
|
1.5X C-mount adapter |
○ |
○ |
○ |
○ |
|
|
2X C-mount adapter |
○ |
○ |
○ |
○ |
|
|
Auxiliary Lens |
1.0X Auxiliary Objective |
○ |
○ |
○ |
○ |
|
0.5X Auxiliary Objective |
○ |
○ |
○ |
○ |
|
|
0.75X Auxiliary Objective |
● |
● |
● |
● |
|
|
1.5X Auxiliary Objective |
○ |
○ |
○ |
○ |
|
|
2.0X Auxiliary Objective |
○ |
○ |
○ |
○ |
|
|
Coaxial light Device |
BCL-1A coaxial light. Point light with coaxial light adapter. Power supply 12V/1A. |
○ |
○ |
○ |
○ |
|
Ring Light |

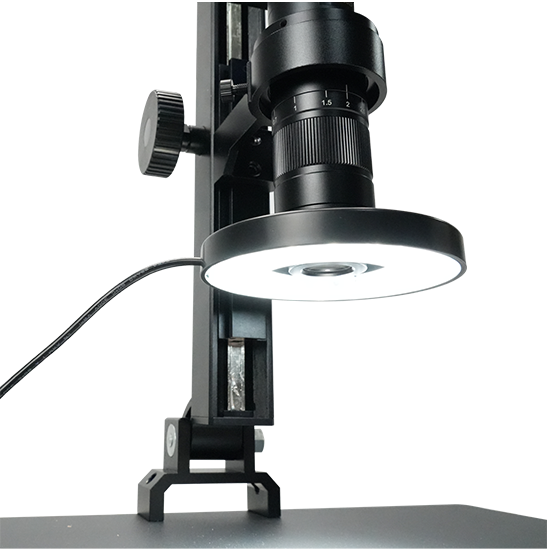

BAL3-40A ring light, brightness continuously adjustable, 18 high brightness LEDs with a professionally designed uniform lens array. Working distance: 80mm-130mm, the illumination uniformity can reach more than 80%, solving the problem of uniformity at different working distances. Inner diameter Φ40mm, outer diameter Φ100mm. Input: AC 100-240V 50Hz/60Hz, output: DC 12V 1A. |
● |
● |
● |
● |
|
BAL3-48A ring light, 48 LED arranged in two rows. Inner diameter Φ40mm, outer diameter Φ65mm, height 24mm. |
○ |
○ |
○ |
○ |
|
|
BAL3-60A ring light, 60 LED arranged in two rows. Inner diameter Φ40mm, outer diameter Φ85mm, height 24mm. |
○ |
○ |
○ |
○ |
|
|
BAL3-48AP LED polarizing ring light, 48 LED arranged in two rows. Inner diameter Φ40mm, outer diameter Φ65mm, height 28mm. |
○ |
○ |
○ |
○ |
|
|
Back Light |
BTL-37A LED transmitted light, the diameter of the lighting area is 37mm. Outer diameter Φ95, height 26mm. |
○ |
○ |
○ |
○ |
|

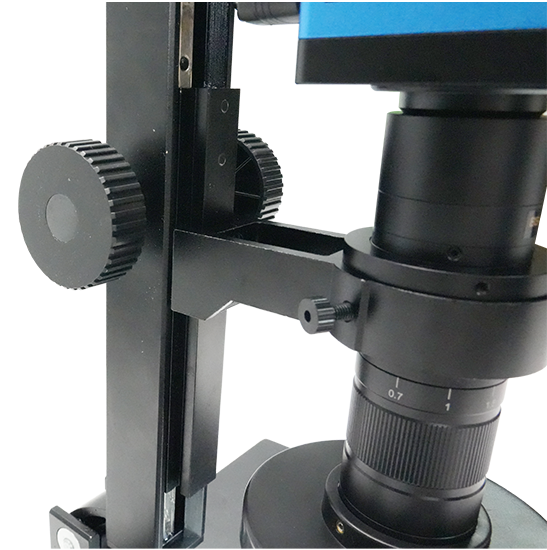

Stand and focus Arm |
BS-210A Square type column plain stand with coarse focus arm and cross arm. Column height: 360mm, stoke: 350mm, base size: 375mm*250mm. |
● |
● |
● |
● |
|
Order Code |
Sensor & Size(mm) |
Pixel(μm) |
G Sensitivity Dark Signal |
FPS/Resolution ADC |
Binning |
Exposure |
|
BS-1008LCD1 |
Sony IMX678(C) |
2.0×2.0 |
1364mv with 1/30s |
30@3840*2160(HDMI) |
1×1 |
0.04~1000 |
|
BS-1008LCD2 |
Sony IMX415(C) 1/2.8″(5.57×3.13) |
1.45×1.45 |
300mv with 1/30s 0.13mv with 1/30s |
30@3840*2160(HDMI) |
1×1 |
0.04~1000 |
|
BS-1008LCD3 |
Sony IMX385(C) |
3.75×3.75 |
1175mv with 1/30s |
60@1920*1080(HDMI) |
1×1 |
0.04~1000 |
|
BS-1008LCD4 |
Sony IMX462(C) 1/2.8″(5.57×3.13) |
2.9×2.9 |
921mv with 1/30s 0.15mv with 1/30s |
60@1920*1080(HDMI) |
1×1 |
0.04~1000 |
Optical Parameter
The specifications of BS-1008 with different Auxiliary Lens and TV Lens are shown in Table 1. Auxiliary Lens and TV Lens with 1.0x are listed in the left-up cell. Its data is the basis of the other parameters in the whole table.
Table 1 BS-1008A/B and Its Extensions
|
Auxiliary Lens |
Specs |
TV Lens |
|||||||||
|
1.0X(For 2/3″ Sensors) TV100 |
0.5X(For 1/3″ Sensors) TV050 |
0.75X(For 1/1.8″ Sensors) TV075 |
1.5X(For 1″ Sensors) |
2.0X(For 4/3″ Sensors) |
|||||||
|
Low |
High |
Low |
High |
Low |
High |
Low |
High |
Low |
High |
||
|
1.0X (80mm WD) W100 |
PMAG |
0.70X~5.60X |
0.35X~2.80X |
0.53X~4.20X |
1.05X~8.40X |
1.40X~11.20X |
|||||
|
FOV |
15.8mm |
1.96mm |
15.8mm |
1.96mm |
15.8mm |
1.96mm |
15.8mm |
1.96mm |
15.8mm |
1.96mm |
|
|
NA |
0.018 |
0.092 |
0.018 |
0.092 |
0.018 |
0.092 |
0.018 |
0.092 |
0.018 |
0.092 |
|
|
0.5X (160mm WD) W050 |
PMAG |
0.35X~2.80X |
0.18X~1.40X |
0.26X~2.10X |
0.53X~4.20X |
0.70X~5.60X |
|||||
|
FOV |
31.74mm |
3.93mm |
31.74mm |
3.93mm |
31.74mm |
3.93mm |
31.74mm |
3.93mm |
31.74mm |
3.93mm |
|
|
NA |
0.009 |
0.046 |
0.009 |
0.046 |
0.009 |
0.046 |
0.009 |
0.046 |
0.009 |
0.046 |
|
|
0.75X (105mm WD) W075 |
PMAG |
0.53X~4.20X |
0.26X~2.10X |
0.40X~3.15X |
0.79X~6.30X |
1.05X~8.40X |
|||||
|
FOV |
20.99mm |
2.61mm |
20.99mm |
2.61mm |
20.99mm |
2.61mm |
20.99mm |
2.61mm |
20.99mm |
2.61mm |
|
|
NA |
0.013 |
0.069 |
0.013 |
0.069 |
0.013 |
0.069 |
0.013 |
0.069 |
0.013 |
0.069 |
|
|
1.5X (51.5mm WD) W150 |
PMAG |
1.05X~8.40X |
0.53X~4.20X |
0.79X~6.30X |
1.58X~12.60X |
2.10X~16.80X |
|||||
|
FOV |
10.46mm |
1.31mm |
10.46mm |
1.31mm |
10.46mm |
1.31mm |
10.46mm |
1.31mm |
10.46mm |
1.31mm |
|
|
NA |
0.026 |
0.138 |
0.026 |
0.138 |
0.026 |
0.138 |
0.026 |
0.138 |
0.026 |
0.138 |
|
|
2.0X (37.5mm WD) W200 |
PMAG |
1.40X~11.20X |
0.70X~5.60X |
1.05X~8.40X |
2.10X~16.80X |
2.80X~22.40X |
|||||
|
FOV |
7.90mm |
1.00mm |
7.90mm |
0.99mm |
7.90mm |
0.99mm |
7.90mm |
0.99mm |
7.90mm |
0.99mm |
|
|
NA |
0.035 |
0.182 |
0.035 |
0.182 |
0.035 |
0.182 |
0.035 |
0.182 |
0.035 |
0.182 |
|
|
Remarks |
When using coaxial lighting, low magnification may produce vignetting. When using infinity objectives as Auxiliary Lens Module (adapter available), the PMAG, FOV and NA of the BS-1008 depends on the parameters of the objectives. |
||||||||||
WD: Working Distance.
PMAG: Primary Magnification.
FOV: Field of View in the Object side.
NA: Numerical Aperture.
Note: Infinity corrected objectives limit system’s usable zoom range due to uneven illumination.
Max sensor format is 2/3″.

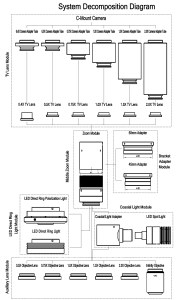

System Diagram
The Basic and Optional Modules of the Monocular Zoom Objective
Application
The applications of the BS-1008LCD1/2/3/4 are machine vision, small details inspection, industrial inspection especially electronic components, scientific research, medical industry and education industry.

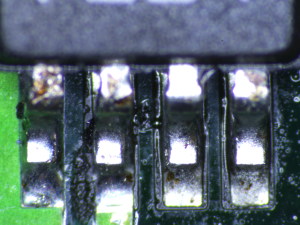

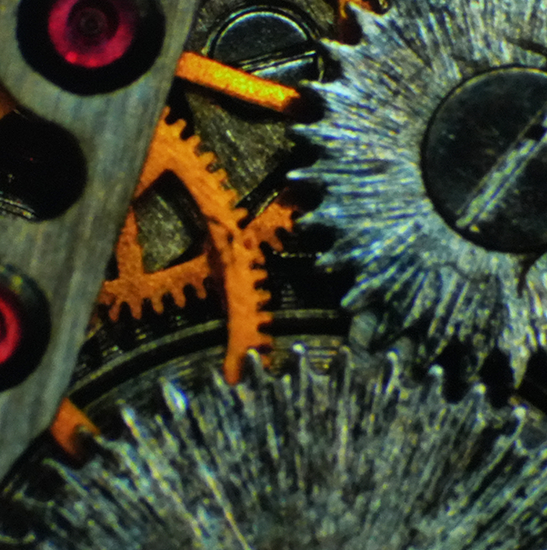

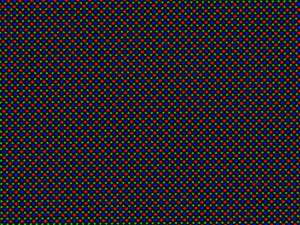

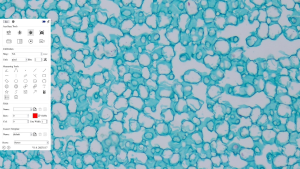

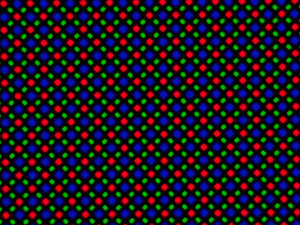

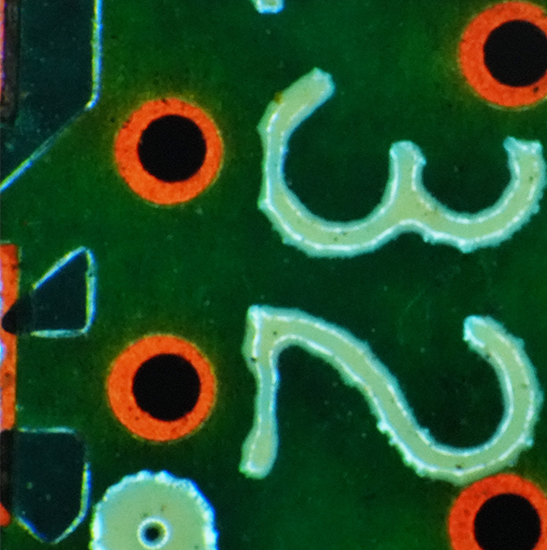

Sample Image
