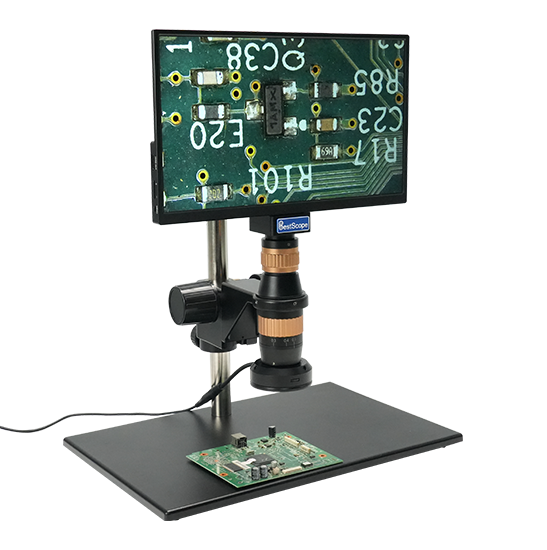

BS-1082LCD1 LCD Digital 4K Monocular Zoom Microscope
Introduction
BS-1082LCD1 LCD Digital 4K Monocular Zoom Microscope adopts apochromatic high quality optical system and provide high resolution and sharp stereoscopic images. This microscope is designed for the applications in the fields of machine vision, industrial inspection and scientific research.
Details
Overview
Packaging & Delivery
Packaging Details:Strong Carton with Polyfoam Protection
Port:Beijing
Lead Time:Within 1-2 Weeks after Receiving Payment
Introduction
Introduction
BS-1082LCD1 LCD Digital 4K Monocular Zoom Microscope adopts apochromatic high quality optical system and provide high resolution and sharp stereoscopic images. This microscope is designed for the applications in the fields of machine vision, industrial inspection and scientific research.
BS-1082LCD1 adopts a multifunctional all-in-one camera that integrates a 13.3-inch display screen of resolution 1920*1080, with HDMI2.0, USB2.0 and WIFI multi output. It can capture 8M (3840*2160) pictures, 4K videos and do measurement, controlled with mouse.

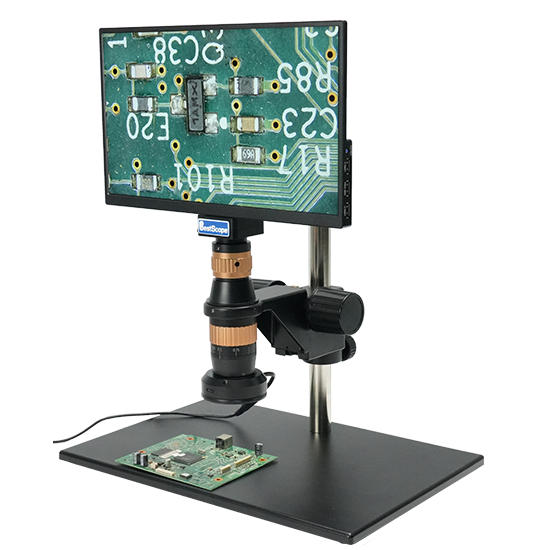

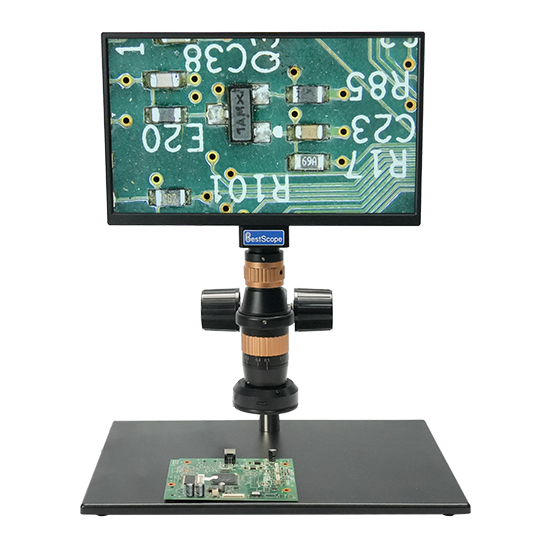

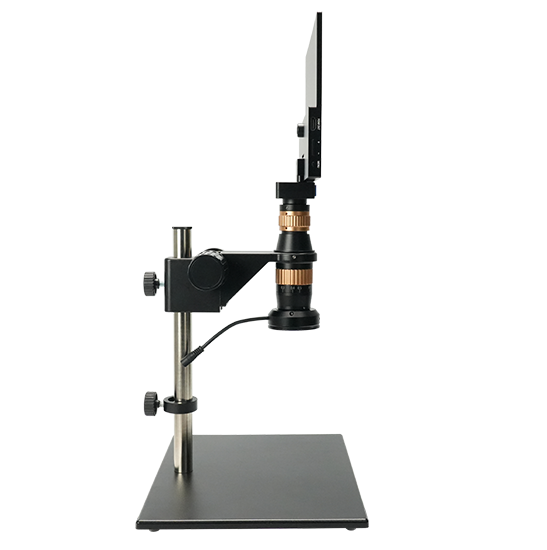

BS-1082LCD1 is a combination of BS-1082 with BAL-80A ring light, BA1 stand and BLC-480B all-in-one camera.
Features
1.High quality opticalsystem
High quality optical system, better effect image with 4K camera.
2.Durable and sturdy
Adopt high hardness wear-resisting material, long use life.
3.Zoom ratio
0.3-2.5X zoom magnification, 8.3:1 big ratio. Different magnification auxiliary objective for optional: 0.3X, 0.4X, 0.5X, 0.6X, 1.5X, 2X. To meet different multiplier requirements.
4.All-in-one Camera
BS-1082LCD1 adopts a multifunctional all-in-one camera with HDMI2.0, USB2.0 and WIFI multi output, 30fps@4K or 60fps@1080P, can capture 8M (3840*2160) pictures, 4K videos and do measurement, control with mouse. With 13.3inch LCD screen, resolution 1920*1080.
Application

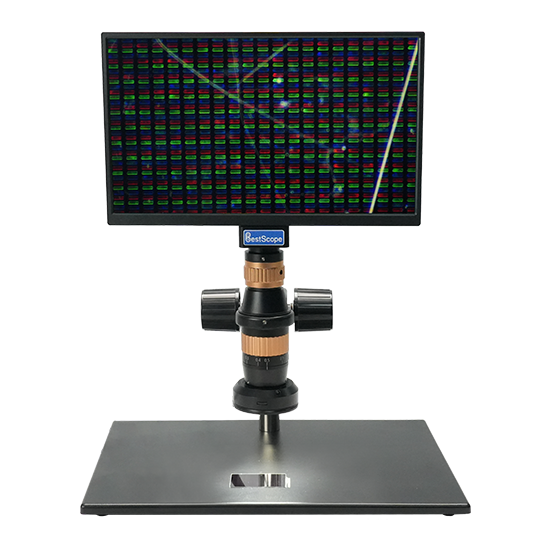

BS-1082LCD1 LCD Digital 4K Monocular Zoom Microscope is widely used in educational demonstration, agriculture research, industrial material, semi-conductor, integrated circuit board inspection area and so on. Widely used in electric equipment, semi-conductor, LCD and LED, for digital image observation, inspection and measurement.
Specification
|
Item |
Specification |
BS-1082LCD1 |
|
Optical System |
High quality optical system |
● |
|

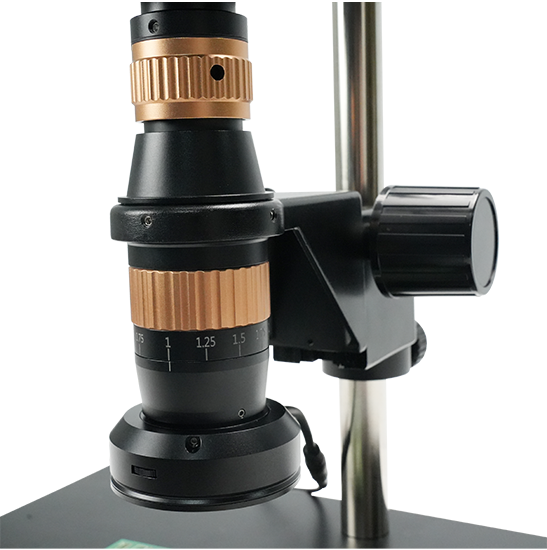

Zoom Lens |

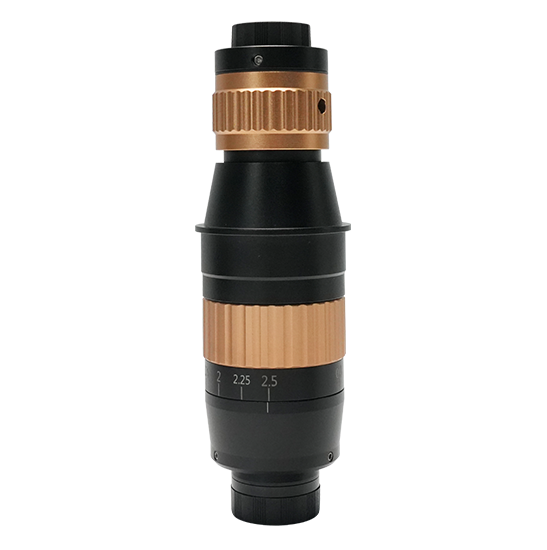

Optical zoom magnification: 0.3-2.5X |
● |
|
Zoom ratio |
1:8.3 |
● |
|
Mounting Size |
Φ50mm |
● |
|
LCD Digital Camera |
BLC-480A LCD digital camera with HDMI2.0, USB3.0 and WIFI multi output, 60fps@4K or 60fps@1080P, can capture 8M (3840*2160) pictures, 4K videos and do measurement, control with mouse. With 13.3 inch LCD screen, resolution 1920*1080. |
○ |
|

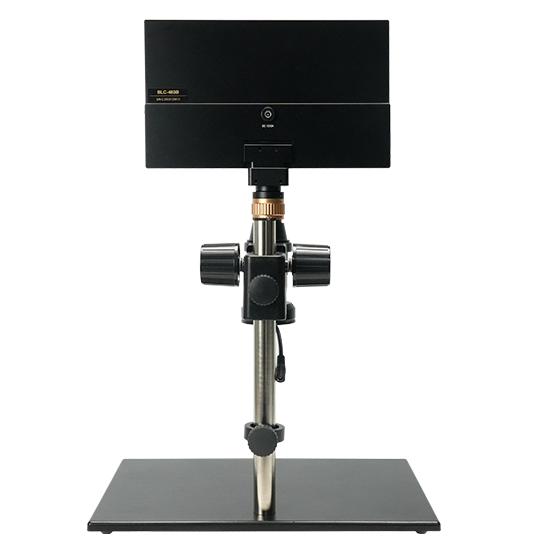

BLC-480B LCD digital camera with HDMI2.0, USB2.0 and WIFI multi output, 30fps@4K or 60fps@1080P, can capture 8M (3840*2160) pictures, 4K videos and do measurement, control with mouse. With 13.3 inch LCD screen, resolution 1920*1080. |
● |
|
|
BLC-580AF LCD digital camera with HDMI2.0, USB and WIFI multi output, with built-in Auto Focus system, 60fps@4K or 60fps@1080P, can capture 8M (3840*2160) pictures, 4K videos and do measurement, control with mouse. With 13.3 inch LCD screen, resolution 1920*1080. |
○ |
|
|
Auxiliary Lens |

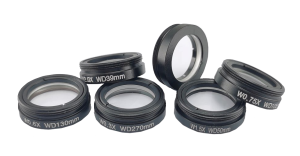

1.0X Auxiliary Objective |
● |
|
0.3X Auxiliary Objective |
○ |
|
|
0.4X Auxiliary Objective |
○ |
|
|
0.5X Auxiliary Objective |
○ |
|
|
0.6X Auxiliary Objective |
○ |
|
|
0.75X Auxiliary Objective |
○ |
|
|
1.5X Auxiliary Objective |
○ |
|
|
2.0X Auxiliary Objective |
○ |
|
|
Ring Light |
BAL-80A LED Ring light, brightness adjustable |
● |
|
BAL-52AP LED polarizing ring light, brightness adjustable |
○ |
|
|
BAL-52ASL LED side ring light, brightness adjustable |
○ |
|
|
BAL-228A Four-zone lighting control separately big area LED ring light |
○ |
|
|
BAL-228AG LED four-zone ring light with frosted glass |
○ |
|
|
BAL-16P LED polarizing ring light, brightness adjustable |
○ |
|
|
Back Light |
BTL-60A LED back light |
○ |
|
Point Light |
BPL-3A LED point light, 3W, brightness adjustable. |
○ |
|
BPL-3MC LED multi color point light, 3W, white, purple, blue, yellow, red, green and mixed light, brightness adjustable |
○ |
|
|
BPL-4A LED point light with numerically adjustable light adapter, 4W, brightness adjustable |
○ |
|
|
Bar Light |
BBL-5A bar LED illuminator, 60 LED, 12V/5W |
○ |
|
Cold Light Source |
BSL-3B LED light source with dual goose neck light guide, 6.5W |
○ |
|
BSL-15A-2 Cold LED light source with Dual Light Guide, 15W LED lamp |
○ |
|
|
BSL2-150A-2 Cold light source with Dual Light Guide, 21V/150W Halogen lamp |
○ |
|
|
Stage |
BMS-302 X-Y moving stage |
○ |
|
BMS-303 X-Y moving stage |
○ |
|
|
BMS-311 X-Y measuring stage |
○ |
|
|
BMS-316A X-Y measuring stage |
○ |
|
|
BMS-316B X-Y measuring stage |
○ |
|
|
BMS-400A large working stage |
○ |
|
|
BMS-260A XY working stage |
○ |
|
|
Stand and focus Arm |
BA1 Round type column plain stand with coarse focus arm. Stroke: 50mm. |
● |
|
BA2 Round type column plain stand with coarse focus arm, transmitted 12V/5W LED illumination, brightness adjustable. Stroke: 50mm. |
○ |
|
|
BA3 Round type column plain stand with coarse and fine focus arm. Stroke: 67mm, fine precision: 0.002mm. |
○ |
|
|
BA4 Round type column plain stand with coarse and fine focus arm, transmitted 12V/5W LED illumination, brightness adjustable. Stroke: 67mm, fine precision: 0.002mm. |
○ |
|
|
BA5 Square type column plain stand with coarse focus arm. Stroke: 150mm. |
○ |
|
|
BA6 Square type column plain stand with coarse focus arm, transmitted 12V/5W LED illumination, brightness adjustable. Stroke: 150mm. |
○ |
|
|
BA7 Square type column plain stand with coarse and fine focus arm. Stroke: 260mm, fine precision: 0.002mm. |
○ |
|
|
BA8 Square type column plain stand with coarse and fine focus arm, transmitted 12V/5W LED illumination, brightness adjustable. Stroke: 260mm, fine precision: 0.002mm. |
○ |
|
|
BA9 multi-angle column plain stand with coarse focus arm. Stroke: 60mm. |
○ |
|
|
BA10 multi-angle column plain stand with coarse and fine focus arm. Stroke: 60mm, fine precision: 0.002mm. |
○ |
|
|
BA11 universal boom stand with coarse focus arm. Column height: 320mm, horizontal column length: 340mm, Φ32mm, 360° rotatable. Base size: 330mm*300mm. Stroke: 50mm. |
○ |
|
|
BA12 universal boom stand with coarse and fine focus arm. Column height: 320mm, horizontal column length: 340mm, Φ32mm, 360° rotatable. Base size: 330mm*300mm. Stroke: 65mm, fine precision: 0.002mm. |
○ |
|
|
BA13 Round type column large plain stand with coarse focus arm. Column height: 320mm, Φ25mm, stroke: 50mm, base size: 380mm*260mm. Gross weight: 1.5kg. |
○ |
|
|
BFA-1 coarse focus arm. Stroke: 50mm. |
○ |
|
|
BFA-2 coarse and fine focus arm. Stroke: 65mm, fine precision: 0.002mm. |
○ |
|
|
BFA-3 multi-angle coarse focus arm, angle adjustable. Stroke: 50mm. |
○ |
|
|
BFA-4 multi-angle coarse and fine focus arm, angle adjustable. Stroke: 60mm, fine precision: 0.002mm. |
○ |
|
|
BFA-5 electric coarse and fine focus arm, supporting manual focusing and electric focusing. It has 5 preset positions, paired with 5 different magnification objectives. Stroke: 65mm, fine precision: 0.005mm. |
○ |
|
|
BFA-6 N interface coarse focus arm. Stroke: 50mm. |
○ |
|
|
BFA-7 N interface coarse and fine focus arm. Stroke: 65mm, fine precision: 0.002mm. |
○ |
Note: ●Standard Outfit, ○Optional
|
Order Code |
Sensor & Size (mm) |
Pixel (μm) |
G Sensitivity Dark Signal |
FPS/Resolution ADC |
Binning |
Exposure |
|
BS-1082LCD1 |
Sony IMX678(C) |
2.0×2.0 |
1364mv with 1/30s |
30@3840*2160 |
1×1 |
0.04~1000 |
|
Order Code |
Video Saving (FPS/Resolution) |
HDMI2.0 (FPS/Resolution) |
USB2.0 (FPS/Resolution) |
WiFi (FPS/Resolution) |
|
BS-1082LCD1 |
30@3840*2160 |
30@3840*2160 |
30@3840*2160 |
30@3840*2160 |
Optical Parameter
|
Model |
BS-1082LCD1 |
|
Optical Magnification |
0.3-2.5X |
|
Working distance |
86mm |
|
FOV |
25.6×14.4-3.07×1.72mm（Base on 7.68×4.32mm sensor 4K camera） |
|
NA |
0.021-0.090mm |
|
Resolution |
0.004-0.016mm |
|
Depth of field |
0.018-6.24mm |
|
Mount |
Standard C mount |
|
Install diameter |
50mm |
Accessories

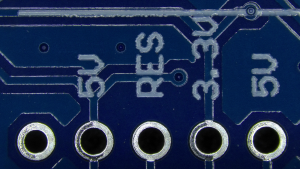

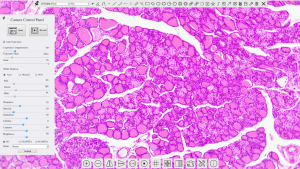

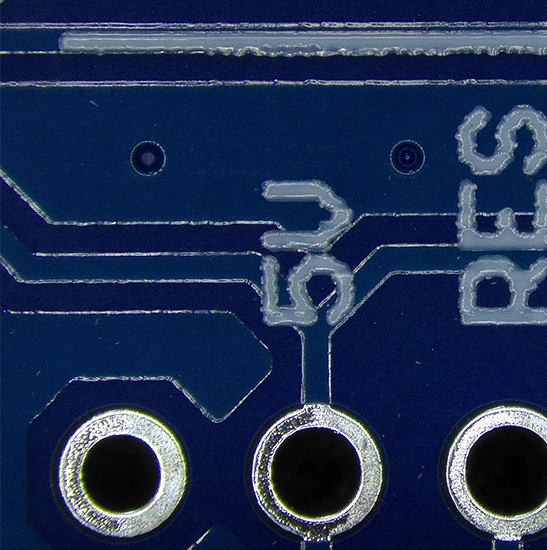

Sample Image
