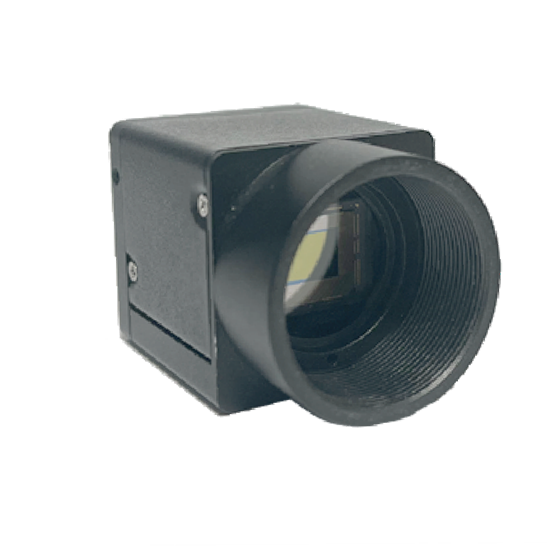

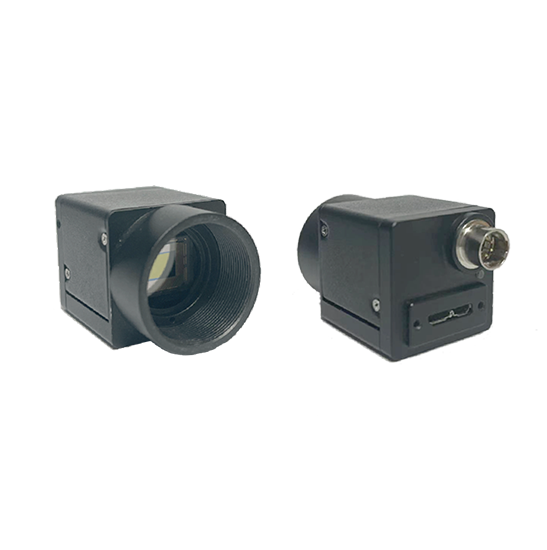

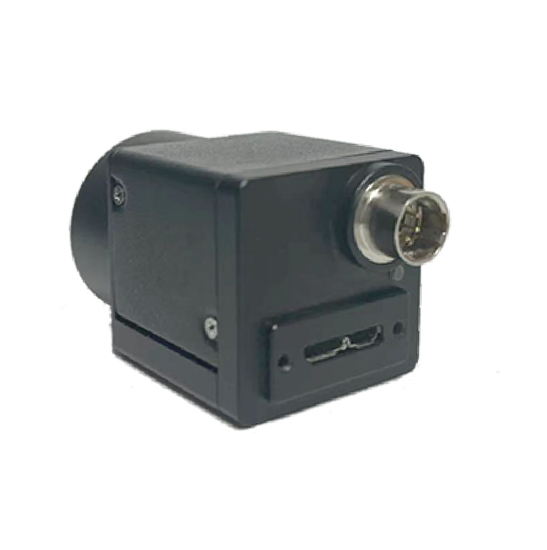

CAM130i Infrared Shortwave Digital Camera
Introduction
Details
Overview
Packaging & Delivery
Packaging Details:Strong Carton with Polyfoam Protection
Port:Beijing
Lead Time:Within 1-2 Weeks after Receiving Payment
Introduction
Specification
|
Product Model |
CAM130i |
CAM30i |
|
Image Sensor |
InGaAs |
|
|
Color |
Mono |
|
|
Shutter Type |
Global Shutter |
|
|
Effective Pixel |
1.3MP |
0.3MP |
|
Sensor Size |
1/2” |
1/4” |
|
Pixel size |
5µm*5µm |
|
|
Maximum Resolution |
1296*1032 |
656*520 |
|
Frame Rate |
70fps |
137fps |
|
Spectral Response Range |
400nm-1700nm |
|
|
Data Interface |
USB3.0 |
|
|
Power Supply |
USB3.0 interface power supply, 5V |
|
|
Collection Synchronization |
Free mode, hardware trigger, software trigger |
|
|
General Purpose Input/ Output Ports (GPIOs) |
4line GPIOs |
|
|
Output Bit |
8-bit, 12-bit |
|
|
Mono Pixel Format |
Mono8, Mono12 |
|
|
Image Buffer |
512MB |
|
|
Lens interface |
C -mount |
|
|
Working Temperature |
0°C to +45°C |
|
|
Camera Size |
29mm*29mm*28.9mm (W*H*L) |
|
|
Camera Weight |
45g |
|
Application
Visible light imaging
Infrared shortwave imaging

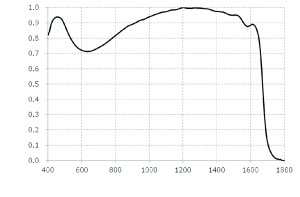

Quantum Conversion Efficiency
Interface
|
Trigger Serial No. |
Function Symbol |
Function Definition |
Description |
|
1 |
Line3 |
IN/OUT |
General purpose GPIO, configurable input or output |
|
2 |
Line0 |
IN |
Optocoupler isolation signal input |
|
3 |
Line2 |
IN/OUT |
General purpose GPIO, configurable input or output |
|
4 |
Line1 |
OUT |
Optocoupler isolation signal output |
|
5 |
Line0, line1 earth wire |
|
Optocoupler signal ground |
|
6 |
Line2, line3 earth wire |
|
General GPIO ground |

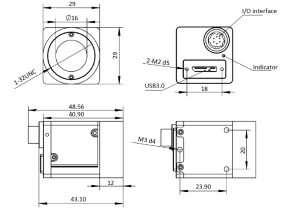

Dimension
Unit: mm
