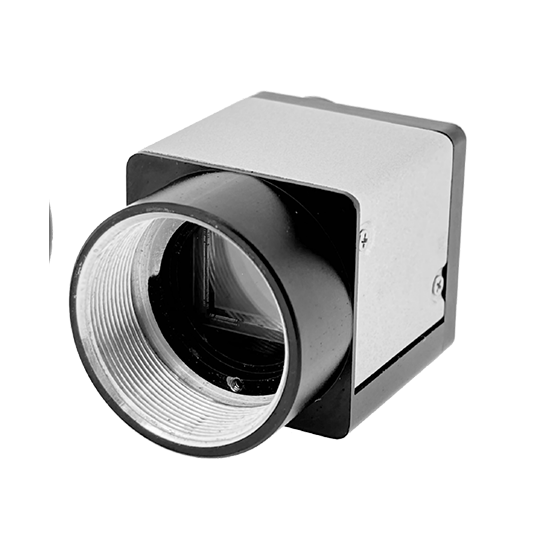

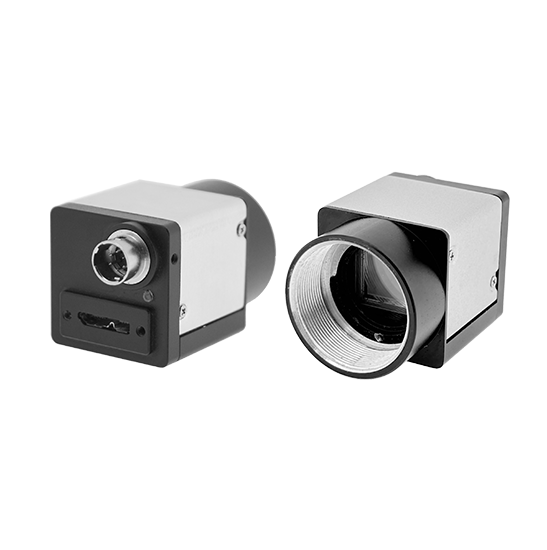

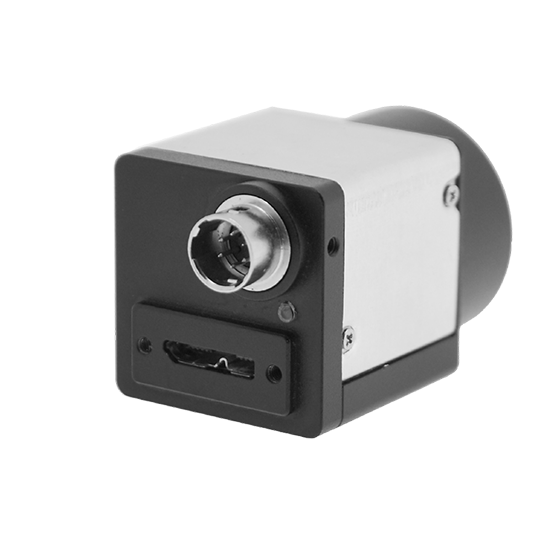

CB-jrA810-40UM-UV Ultraviolet Industrial Digital Cameras
Introduction
JrA810 ultraviolet industrial digital cameras equipped with SONY IMX 487 ultraviolet CMOS sensor, 8.1 mega-pixel global exposure. JrA810 is capable for sensing UV wavelengths ranging from 200nm to 400nm. It has excellent image quality, high frame rate and flexible ROI control. The camera adopts USB 3.0 interface, plug and play. The camera has small size, low weight, low power consumption. Secondary development packages for PC systems and embedded systems are provided. Affordable prices, providing customization and OEM services
Details
Overview
Packaging & Delivery
Packaging Details:Strong Carton with Polyfoam Protection
Port:Beijing
Lead Time:Within 1-2 Weeks after Receiving Payment
Introduction
Introduction
JrA810 ultraviolet industrial digital cameras equipped with SONY IMX 487 ultraviolet CMOS sensor, 8.1 mega-pixel global exposure. JrA810 is capable for sensing UV wavelengths ranging from 200nm to 400nm. It has excellent image quality, high frame rate and flexible ROI control. The camera adopts USB 3.0 interface, plug and play. The camera has small size, low weight, low power consumption. Secondary development packages for PC systems and embedded systems are provided. Affordable prices, providing customization and OEM services
Features
1.JrA810 adopts SONY IMX487 ultraviolet CMOS sensor, supporting 8.1 mega-pixel and global exposure.
2.Capable of sensing UV wavelengths ranging from 200nm to 400nm
3.Excellent image quality, high frame rateand flexible multi ROI control
4.USB 3.0 interface,plug and play.
5.Small size, low weight, low power consumption.
6.Provide secondary development packages for PC systems and embedded systems
Application
Arc Detection
Semiconductor Detection
Material Sorting
Fire Early Warning
1.Semiconductor industry: chip defect detection
2.Detection and analysis:arc detection, ultraviolet laser analysis, fluorescence detection
3.Monitoring:Visual enhancement (e.g. fire early warning and monitoring)
4.Recycling industry:classification of transparent plastics and glass
5.Counterfeit Detection:counterfeit currency inspection
6.Security:criminal investigation (e.g. colorless sweat fingerprints)
7.Agriculture:pesticide residue testing
Specification
|
Model |
CB-jrA810-40UM-UV |
|
Sensor Model |
SONY IMX487 |
|
Color |
Mono |
|
Spectral Response Range |
200nm-1000nm |
|
Image Sensor |
CMOS |
|
Sensor Size |
2/3” |
|
Effective Pixels |
8.1MP |
|
Pixel Size |
2.74μm*2.74μm |
|
Max. Resolution |
2848*2848 |
|
Frame Rate |
40fps (Mono8)/23fps (Mono12) |
|
Exposure Mode |
Global |
|
ADC |
12Bit |
|
RAM |
512MB |
|
Data Interface |
USB 3.1 Gen 1 Micro-B |
|
Lens Interface |
C-Mount |
|
Output Bit |
8-bit, 12-bit |
|
Mono Pixel Format |
Mono8, Mono12 |
|
General Purpose Input/ Output Ports (GPIOs) |
4line GPIOs |
|
Work Temperature |
0°C to +45°C |
|
Power Supply |
USB3.0 Power Supply, 5V DC |
|
Weight |
45g |
|
Camera Dimension |
40.9mm*29mm*29mm (L*W*H) |

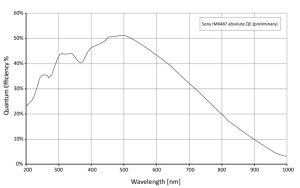

Quantum Conversion Efficiency
Interface
|
Trigger Serial No. |
Function Symbol |
Function Definition |
Description |
|
1 |
Line3 |
IN/OUT |
General purpose GPIO, configurable input or output |
|
2 |
Line0 |
IN |
Optocoupler isolation signal input |
|
3 |
Line2 |
IN/OUT |
General purpose GPIO, configurable input or output |
|
4 |
Line1 |
OUT |
Optocoupler isolation signal output |
|
5 |
Line0, line1 earth wire |
|
Optocoupler signal ground |
|
6 |
Line2, line3 earth wire |
|
General GPIO ground |
Dimension
Unit: mm
