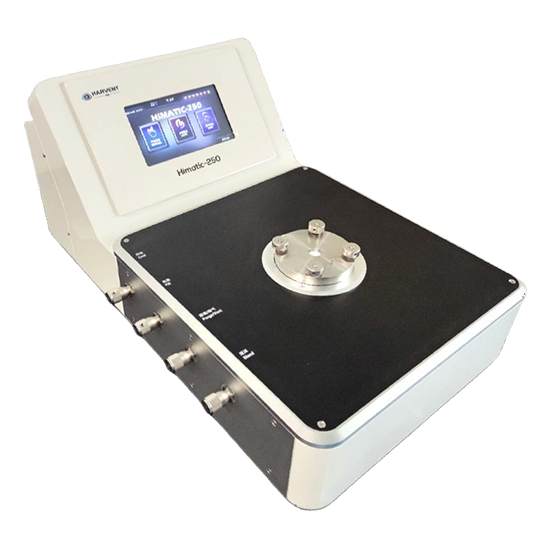

Himatic-250 Harvent Critical Point Dryer

Chamber Size:2.5" (Inner diameter) *1.25" (Depth)

Chamber Volume:100 ml

Dimension:31.5cm (H)*39.3cm (W)*58.2cm (L)

Temperature Pressure Range:- 30°C ~ 60°C, 0 ~2000 psi

Packaging Details:Strong Carton with Polyfoam Protection

Port:Beijing

Lead Time:Within 2-4 Weeks after Receiving Payment

1.LCDtouch screen.

2.Not suit able for dust free room.

3.Manual,auto and loop mode.

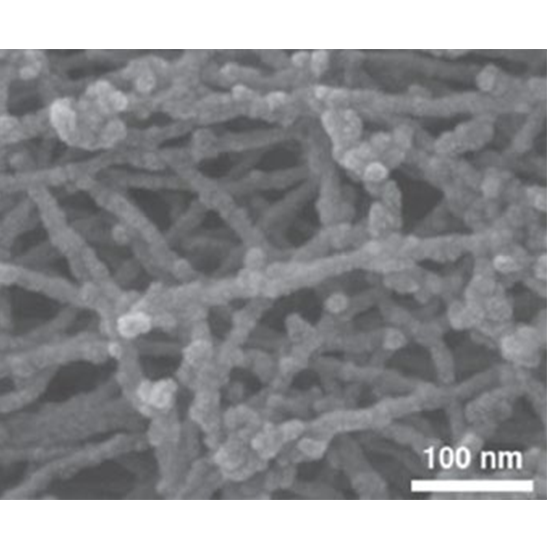

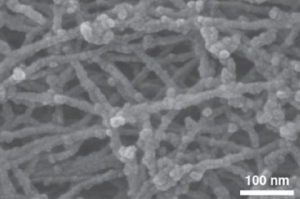

4.Suitable for SEM, TEM, MEMSetc. sample preparation.

5.Built-in pressure control,automatically control system pressure and maintain stability of pressure.

6.Multiple default processing program, customized available.

7.Observation window with light for observing the state of sample.

8.Built-in filter system, protect sample and valve.

9.External 5μm filter, remove water,oil and particle.

10.Micro metering valve controls the flow of LCO₂with scale.

11.Operating parameter repeatable setting available, make sure the repeatability of result.

12.For Hsimart-250 Pro: LCO2 replacement timessettable under loop mode, suitable for gelt type sample.

13.For Hsimart-250 Pro: Automatically control system pressure and maintain stable pressure.

14.For Hsimart-250 Pro: Low speed flash,adapt to various fragile sample.

Specification	Himatic-250	Hismart-250 Pro
Control	LCD touch screen control Fully automatically control
Chamber Size	2.5″ (Inner diameter) *1.25″ (Depth)
Chamber Volume	100 ml
Dimension	31.5cm (H)39.3cm (W)58.2cm (L)
Temperature Pressure Range	– 30°C ~ 60°C, 0 ~2000 psi

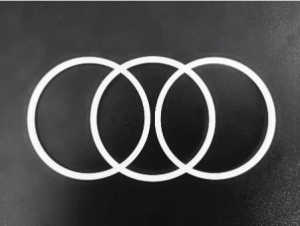

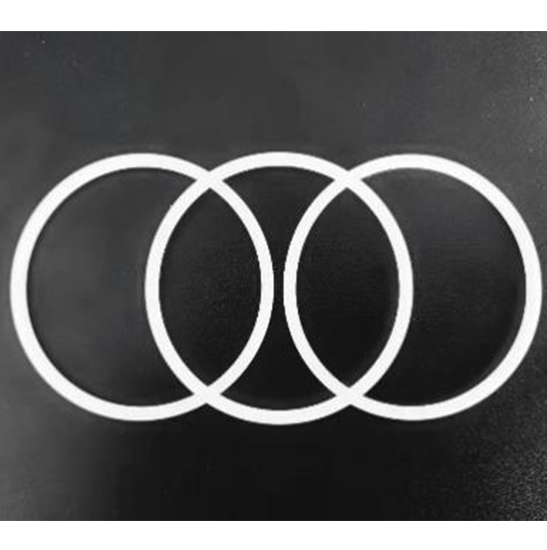

Configuration	Flexible high pressure LCO₂ pipeline, 2m External LCO₂ filter unit (remove particle over 0.5 μm) Antistatic and anti-freezing discharge pipeline Sample chamber sealing ring2 Chamber bulb2 Installation kit Wrench Touch screen pen Flowmeter Operation Manual	Flexible high pressure LCO₂ pipeline, 2 m External LCO₂ filter unit (remove particle over 0.5 μm) 2.5” ~1.25” chamber diameter changing ring Antistatic and anti-freezing discharge pipeline Sample chamber sealing ring2 Chamber bulb2 Installation kit Wrench Touch screen pen Flowmeter Operation Manual
