Introduction

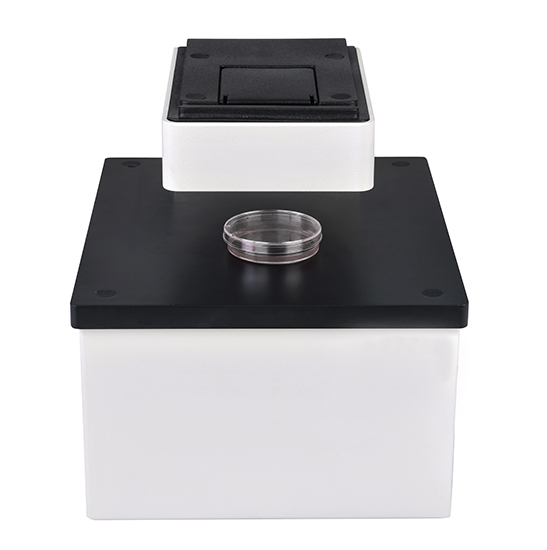

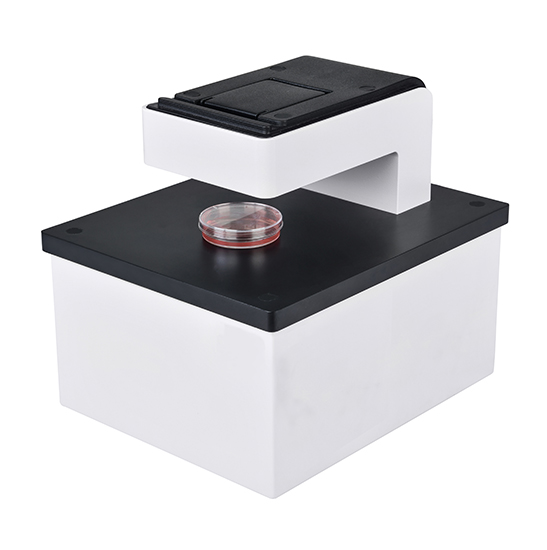

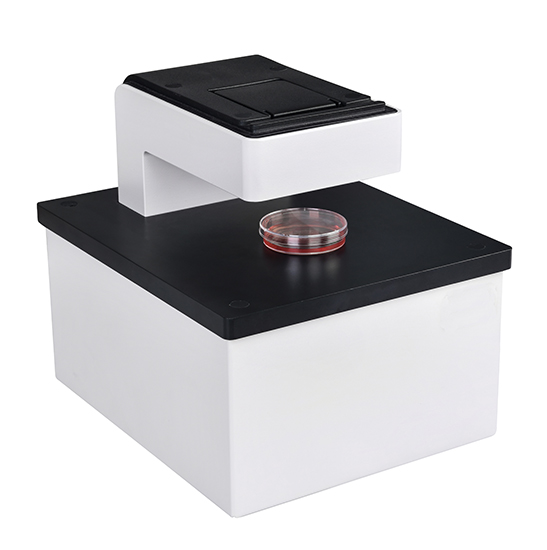

The BCM series is a fully automatic live cell imaging system, with phase contrast model BCM-1 and phase contrast & fluorescence model BCM-2. BCM is a revolutionary upgrade product for live cell imaging and analysis. It abandons the bulky housing and complicated operating steps of ordinary biological microscopes, allowing cell observation in one step. The built-in high-sensitivity camera has a time-lapse shooting function, which can fully record the cell culture process.

Details

Model:BCM-2
Stage:Fixed Stage
Transmitted Illumination:3W 627nm Red LED Lamp
Reflected Illumination:3W 525nm Green LED Lamp
Objective:10x
Focusing:Electric Focus
Built-in Camera:5.0MP
Software Language:Simplified Chinese, English
Share

Overview

Packaging & Delivery

Packaging Details:Strong Carton with Polyfoam Protection

Port:Beijing

Lead Time:Within 2-4 Weeks after Receiving Payment

Introduction

The BCM series is a fully automatic live cell imaging system, with phase contrast model BCM-1 and phase contrast & fluorescence model BCM-2. BCM is a revolutionary upgrade product for live cell imaging and analysis. It abandons the bulky housing and complicated operating steps of ordinary biological microscopes, allowing cell observation in one step. The built-in high-sensitivity camera has a time-lapse shooting function, which can fully record the cell culture process.

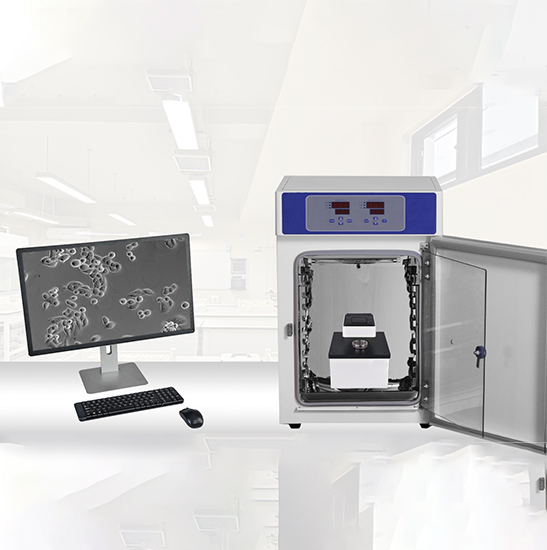

At the same time, the compact body of the BCM is convenient for cell observation anywhere, whether it is an experimental console, an ultra-clean workbench or a cell incubator.

Features

1.Small size, can be placed in a cell incubator.

2.Z-axis auto focus, electric focus adjustment, easy operation.

3.A 10X infinite plan semi-apochromatic phase contrast objective lens has been adopted, which can achieve high signal-to-noise ratio, high-resolution and high-contrast imaging effects in a variety of illumination modes.

4.It uses a 5.0MP high-sensitivity camera with functions of photographing, video recording and time-lapse shooting to record cell growth status in real time.

5.The built-in phase contrast observation module is specially designed for live cell observation, with high contrast of cell imaging.

6.The transmitted light uses a 627nm red LED light source, which is friendly to cells and avoids long-term exposure to damage to cells; epi-fluorescence uses Blue and Green LED fluorescence light source to meet different needs of fluorescence imaging.

7.Compatible with various culture flasks and petri dishes.

8.High humidity resistance, chemical corrosion resistance, UV resistance, long service life and easy maintenance.

9.It has good airtightness and miniaturization design, can be placed in various incubators, and can work normally in an environment with 95% humidity, 37°C temperature, certain CO2 concentration or H2O2 gas.

Application

This live cell imaging system is mainly used in the fields of stem cell culture, biopharmaceuticals, scientific research and other life sciences applications, providing monitoring and data recording for stem cell growth, cell resistance, drug screening, cell proliferation and migration.

The main application areas are as follows:

* Live cell imaging and cell growth monitoring;

* Optimization of cell analysis experiment conditions;

* Cell migration research;

* Cell quality control;

* Biopharmaceutical;

* Cell drug screening;

* Genetic analysis;

* Toxicological analysis.

Specification

Item

Specification

BCM-1

BCM-2

Transmitted Illumination

3W 627nm Red LED lamp

Reflected Illumination

3W 525nm Green LED lamp, 3W 485nm Blue LED lamp

Brightness Adjustment

Electric control brightness adjustment



Electric control transmitted and reflected illumination switching, electric fluorescence module switching, electric brightness adjustment



Stage

Fixed stage, compatible with various culture flasks and petri dishes

Objective

10X Infinite Plan Semi-apochromatic phase contrast objective (10X, NA=0.30, WD=7.4mm, cover slip thickness: 1.2mm)

Focusing

Electric focus, auto focus; focus stroke: up 7mm, down 1.5mm; manual 2mm/ circle

Built-in Camera

5.0MP high sensitive CMOS mono USB3.0 digital camera (CMOS sensor, 2/3”, pixel size 3.45µm, resolution: 2448*2048, maximum frame rate: 35fps, interface: USB3.0)

Software

With basic functions such as photographing, video recording, and time-lapse photography

Size

220mmX264mmX240mm (WXDXH)

Tablet PC Rack

Tablet PC can be placed on top

Operation System

Windows: Win7, Win8, Win10, 64 bit

Software Language

Simplified Chinese, English

Note: ●Standard, ○ Optional
