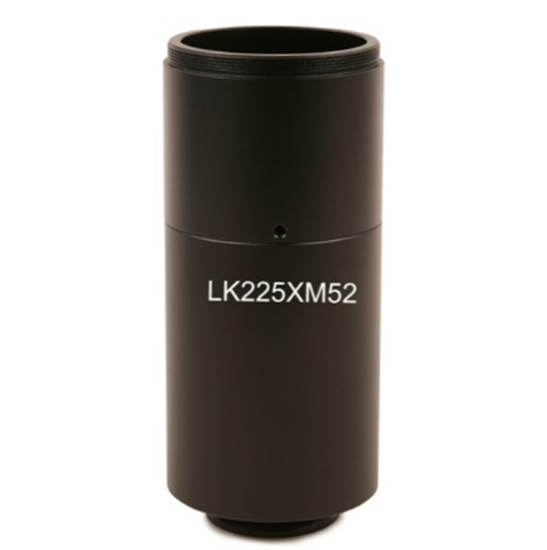

BCN2-Zeiss 2.25X C-mount Adapters for Microscope

Introduction

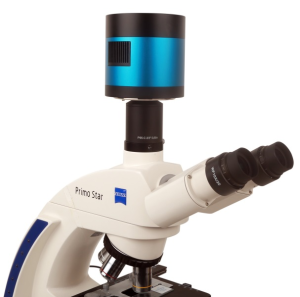

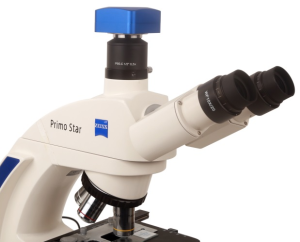

Can be installed in Zeiss UIS trinocular tube such as Axio series microscope.

Details

Model:BCN2-Zeiss 2.25X

Magnification:2.25X

Sensor Size:2.7”, 1.8”, 4/3”, 1”

Mount Type:M52

Enquiry now

Leave a message

Overview

Packaging & Delivery:

Packaging Details:Strong Carton with Polyfoam Protection

Port:Beijing

Lead Time:Within 1-2 Weeks after Receiving Payment

Introduction

Feature

1.Convert the Zeiss trinocular microscope phototube/head/port (have standard M52x1mm outer diameter for the insertion end to phototube) to traditional C-Mount type(25.4 mm or 1 inch diameter with 32 threads per inch), T2 mount type(M42x0.75 mm metric thread) or M52 mount type (M52x0.75mm metric thread).

2.With different built-in reduction lens (2.25X, 1.5X,1.2X,1X, 0.8X,0.63X, 0.5X, 0.35X) for achieving better field of view from microscope trinocular head(suitable for 2.7”, 1.8”, 4/3”, 1”, 2/3”, 1/1.8”, 1/2”, 1/2.5”, 1/3” or 1/4” inch CCD or CMOS sensor chips).

3.Can be installed in Zeiss UIS trinocular tube such as Axio series microscope.

4.Build of material: anodized aluminum.

5.Telecentric optics with low light deficiency.

6.Parfocal with different microscope objective lenses.

7.Diffraction limited MTF.

8.Aperture totally coupled with UIS microscope objective’s exit pupil.

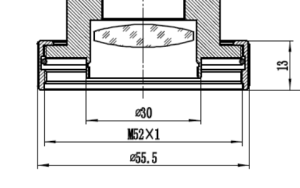

The profile of one end of the adapter connecting to the microscope:

Specification

Model	Photo	Magnification	Sensor Size	Mount Type
BCN2-Zeiss 2.25X		2.25X	2.7”, 1.8”, 4/3”, 1”	M52
BCN2-Zeiss 1.5X		1.50X	1.8”, 4/3”, 1”, 2/3”	T2-Mount
BCN2-Zeiss 1.2X		1.20X	1”, 4/3”	T2-Mount
BCN2-Zeiss 1.0X		1.0X	1”, 2/3”	C-Mount
BCN2-Zeiss 0.8X		0.80X	1”,2/3”	C-Mount
BCN2-Zeiss 0.63X		0.63X	2/3”,1/1.8”,1/2”	C-Mount
BCN2-Zeiss 0.5X		0.50X	1/1.8”,1/2”,1/2.5”	C-Mount
Supported Microscope	Axio Examiner.A1; Axio Examiner.D1; Axio Examiner.Z1; Axio Imager Vario; Axio Imager.A1; Axio Imager.A1m; Axio Imager.A2; Axio Imager.A2m; Axio Imager.D1; Axio Imager.D1 for epi-fluorescence with ApoTome equipment; Axio Imager.D1m; Axio Imager.D2; Axio Imager.D2m; Axio Imager.M1 (Axio Imager.M1 for KS ELISPOT); Axio Imager.M1m; Axio Imager.M2; Axio Imager.M2m; Axio Imager.Z1; Axio Imager.Z1 + ApoTome; Axio Imager.Z1m; Axio Imager.Z2; Axio Imager.Z2m; Axio Lab.A1; Axio Lab.A1 FL-LED; Axio Lab.A1 MAT; Axio Lab.A1 Pol; Axio Observer.A1; Axio Observer.A1 Entry; Axio Observer.D1; Axio Observer.D1 Entry; Axio Observer.D1 Mid Range; Axio Observer.Z1; Axio Observer.Z1 High End; Axio Scope.A1; Axio Scope.A1 Pol; Axio Scope.A1 Vario; Axio Vert.A1; Axio Vert.A1 FL; Axio Vert.A1 FL-LED; Axio Vert.A1 MAT; Axio Zoom.V16; PALM CombiSystem Rel. 4.2; PALM MicroBeam; PALM MicroBeam Rel.4.2; PALM MicroTweezers Rel.4.2; Stemi 508 doc; Stemi 508 trino; SteREO Discovery.V12; SteREO Discovery.V8; SteREO Lumar.V12;
