BLC-250A 5.0MP LCD Digital Microscope Camera
BLC-250A 5.0MP LCD Digital Microscope Camera
BLC-250A 5.0MP LCD Digital Microscope Camera
BLC-250A 5.0MP LCD Digital Microscope Camera
BLC-250A 5.0MP LCD Digital Microscope Camera
BLC-250A 5.0MP LCD Digital Microscope Camera

BLC-250A 5.0MP LCD Digital Microscope Camera

Introduction

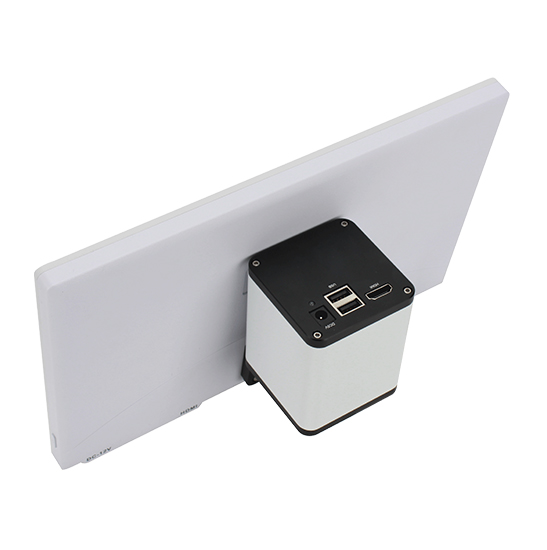

BLC-250A LCD Digital Camera is a highly cost-effective, reliable HD LCD camera which combines a full HD camera and a retina 1080P HD LCD screen.

Details

Model:BLC-250A
Image Sensor:Color CMOS
Pixel:5.0MP Pixels
Pixel Size:1/2.8〞
Output Method:HDMI
Screen Size:11.6 Inch
Lens Interface:C-Type
Display Resolution:1920 × 1080
Share

Overview

Packaging & Delivery

Packaging Details:Strong Carton with Polyfoam Protection

Port:Beijing

Lead Time:Within 1-2 Weeks after Receiving Payment

Introduction

BLC-250A LCD Digital Camera is a highly cost-effective, reliable HD LCD camera which combines a full HD camera and a retina 1080P HD LCD screen.



With the built-in software, the BLC-250A can be controlled by a mouse to take pictures, take videos and do simple measurement. Equipped with CMOS sensor and 11.6” retina HD LCD screen, it is developed specifically for different microscopy applications.

Features

1.Control camera with mouse from USB port, no shaking.

2.11.6” retina HD LCD Screen, high definition and high quality color reproduction.

3.5.0MP still image capture and 1080P Video Recording.

4.Save image and video to USB flash drive.

5.HDMI Output from the camera to the LCD screen, frame rate up to 60fps.

6.Standard C-mount Interface for different microscopes and industrial lens.

7.Measurement function, the digital camera has complete measurement function.

Application

BLC-250A HDMI LCD digital camera can be widely used in medical diagnosis, industrial production and inspection, laboratory research and related microscopy field for image, video capture and analysis. With the high image quality and easy to operate, it will be your best assistant.

Specification

Product Model

BLC-250A

Digital Camera Part

Image Sensor

Color CMOS

Pixel

5.0MP pixels

Pixel size

1/2.8〞

Menu

All-digital UI design

Method of Operation

Mouse

Lens interface

C-type

Power DC

DC12V

Output method

HDMI

White Balance

Auto / Manual

Exposure

Auto / Manual

Display Frame rate

1080P@60fps(preview)/1080P@50fps(capture)

Scanning method

Line by line scanning

Shutter Speed

1/50s(1/60s)~1/10000s

Operating Temperature

0℃~50℃

Magnification / Zoom

Support

Saving function

Support U-disk storage

Retina Screen

Screen Size

11.6 inch

Aspect Ratio

16:9

Display Resolution

1920 × 1080

Display Type

IPS-Pro

Brightness

320cd/m2

Static Contrast Ratio

1000:1

Input

1*HDMI Port

Power Supply

DC 12V /2A External Adapter

Dimension

282mm×180.5mm×15.3mm

Net Weight

600g
