BLC-580AF Auto Focus LCD Digital Camera
Introduction
The BLC-580AF Auto Focus LCD digital camera is intended to be used for the acquisition of digital images from the stereo microscopes, biological microscopes and other optical microscopes.
Details
Overview
Packaging & Delivery
Packaging Details:Strong Carton with Polyfoam Protection
Port:Beijing
Lead Time:Within 1-2 Weeks after Receiving Payment
Introduction
Introduction
The BLC-580AF Auto Focus LCD digital camera is intended to be used for the acquisition of digital images from the stereo microscopes, biological microscopes and other optical microscopes. BLC-580AF LCD Auto Focus LCD digital camera is a combination of BWHC4-4KAF8MPA HDMI digital camera and HD1080P133A full HD LCD Screen.
The basic characteristic is listed as below:
- Sony STARVIS 2 back-illuminated CMOS sensor
- 4K HDMI/ NETWORK/ USB multiple video synchronous outputs
- 4K/1080P auto switching according to monitor resolution
- Support 4K 60fps low delay HDMI output mode, with an average delay of 40ms
- SD card/USB flash drive for captured image and video storage, support local preview and playback
- New browsing function, providing rich file operation functions, image to image comparison, image to real-time video comparison, Multi image EDF and other functions
- Excellent ISP with local tone mapping and 3D denoising
- Provide real-time video EDF function and real-time video WDR output function
- Provide two sets of default ISP parameters for biological microscope and stereo microscope
- Embedded XCamView for the control of the camera and image processing, supporting automatic edge finding and measurement functions
- ImageViewsoftware for PC
- iOS/Android applications for smart phones or tablets

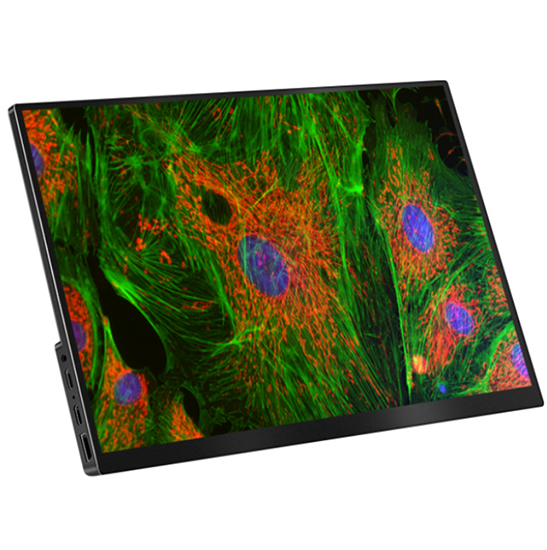

13.3inch 1080P LCD screen, the perfect match of camera and LCD screen resolution.
Application
The possible applications of BLC-580AF are as follows:
Scientific research, education (teaching, demonstration and academic exchanges).
Digital laboratory, medical research.
Industrial visual (PCB examination, IC quality control, mechanical part inspection).
Medical treatment (pathological observation).
Food (microbial colony observation and counting).
Camera Function Description
|
|
Sensor & Size (mm) |
Pixel (μm) |
G Sensitivity Dark Signal |
Sensor Output (FPS/Resolution) |
Binning |
Exposure (ms) |
|
BLC-580AF |
Sony IMX678(C) |
2.0×2.0 |
3541mv with 1/30s |
60@3840*2160 |
1×1 |
0.019~1000 |
|
Camera Model |
Video Saving (FPS/Resolution) |
HDMI2.0 (FPS/Resolution) |
USB3.0 (FPS/Resolution) |
NETWORK (FPS/Resolution) |
|
BLC-580AF |
60@3840*2160 |
60@3840*2160 |
30@3840*2160 |
30@3840*2160 |
BLC-580AF

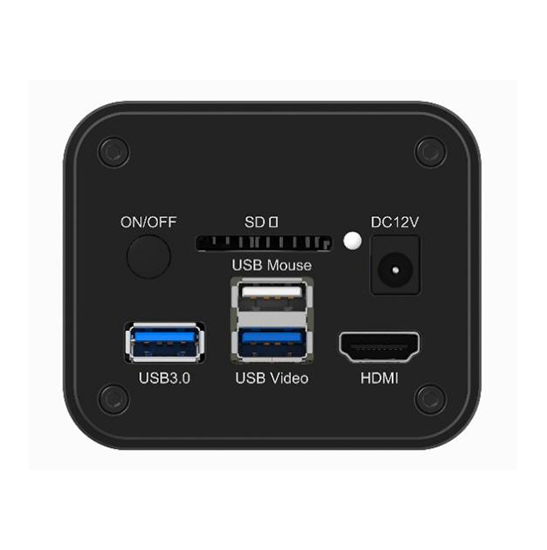

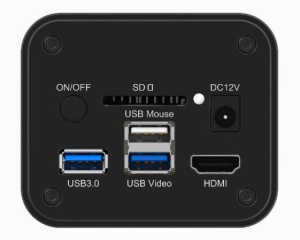

Available Ports on the Back Panel of the Camera Body
|
Interface or Button |
Function Description |
|
USB Mouse |
Connect USB mouse for easy operation with embedded XCamView software |
|
USB3.0 |
Connect USB flash drive to save pictures and videos |
|
USB Video |
Connect PC or other host device to realize video image transmission |
|
HDMI |
Comply with HDMI2.0 standard. 4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors |
|
SD |
SD card slot, comply with SDIO3.0 standard and SD card could be inserted for video and images saving |
|
ON/OFF |
Power switch |
|
LED |
LED status indicator |
|
DC12V |
Power adapter connection (12V/1A) |
|
Video Output Interface |
Function Description |
|
HDMI Interface |
Comply with HDMI2.0 standard;60fps@4K or 60fps@1080P |
|
WiFi Interface |
Connecting 5G WiFi adapter (USB3.0 slot) in AP/STA mode |
|
USB Video Interface |
Connecting USB Video port of PC for video transfer |
|
Other Function |
Function Description |
|
Video Saving |
Video format:8M (3840*2160) H264/H265 encoded MP4 file |
|
Image Capture |
8M (3840*2160) JPEG/TIFF image in SD card or USB flash drive |
|
Measurement Saving |
Measurement information saved in different layer with image content |
|
ISP |
Exposure (Automatic / Manual Exposure) / Gain, White Balance (Manual / Automatic / ROI Mode), Sharpening, 3D Denoise, Saturation Adjustment, Gamma Adjustment, Contrast Adjustment, Brightness Adjustment, Hue Adjustment, Color to Gray, 50HZ/60HZ Anti-flicker Function |
|
Image Operation |
Zoom In/Zoom Out (Up to 10X), Mirror/Flip, Freeze, EDF, Cross Line, Overlay, PIP, Browser (including Picture Browsing, Video Playback, Video Compare, Picture Compare, EDF, Image Processing), Measurement Function |
|
Embedded RTC (Optional) |
To support accurate time on board |
|
Restore Factory Settings |
Restore camera parameters to its factory status |
|
Multiple Language Support |
English / Simplified Chinese / Traditional Chinese / Korean / Thailand / French / German / Spanish / Japanese / Italian / Russian / Dutch / Portuguese |
|
Software Environment under Network/USB Video Output |
|
|
White Balance |
Auto White Balance |
|
Color Technique |
Ultra-Fine Color Engine |
|
Capture/Control SDK |
Windows/Linux/macOS/Android Multiple Platform SDK (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc.) |
|
Recording System |
Still Picture or Movie |
|
Operating System |
Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 / 10 / 11(32 & 64 bit) |
|
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|
|
Memory: 4GB or More |
|
|
Ethernet Port: RJ45 Ethernet Port |
|
|
Display:19” or Larger |
|
|
CD-ROM |
|
Operating Environment |
|
|
Operating Temperature (in Celsius degree) |
-10C°~ 50°C |
|
Storage Temperature (in Celsius degree) |
-20°C~ 60°C |
|
Operating Humidity |
30~80%RH |
|
Storage Humidity |
10~60%RH |
|
Power Supply |
DC 12V/1A Adapter |
HD1080P133A Datasheet
|
Order Code |
Active Area(Inch) |
Video Fomat |
Resolution |
Contrast |
Color Gamut |
View Angle |
Touch Function |
|
HD1080P133A |
13.3 |
HDMI |
1080P |
1000:1 |
72% |
IPS Full View(178°) |
NA |
|
Basic Performance |
|
|
HD1080P133A/HD1080P133AT |
Common/touch, 2 means square |
|
LCD Panel |
IPS LCD Screen (Super TFT) |
|
Input Video Format |
HDMI |
|
Native Resolution |
1920 x 1080 |
|
Display Type |
16:9 Ratio 13.3 Inch Active Matrix Super TFT LCD |
|
Typical Contrast Ratio |
1000:1 |
|
Colors |
16.7 Million |
|
Viewing Angle(L/R/U/D) |
IPS Full View (178°) |
|
Active Display Area |
295mm(W) × 165mm(H) |
|
Pixel Pitch |
0.154(W) X 0.154(H) mm |
|
Refresh Rate |
60Hz |
|
Brightness |
400cd/m2 |
|
Backlight |
LED Backlight, 50000 hours |
|
Outline Parameter |
|
|
Color |
Black |
|
Dimension |
306(L)*183(H)*8(T) mm |
|
Weight |
450g |
|
Operating Environment |
|
|
Operating Temperature |
-15 Degree~55 Degree |
|
Humidity Non-Condensing |
Operating: 10%-90%, Storage: 5%-90% |
|
Synchronization Range |
30-80 KHz Horizontal, 55-75 Hz Vertical |
|
Power Supply |
AC110V-220V /DC5~12V(1A ) (Type C) |
|
Power Consumption |
Max 12W |
Packing Information

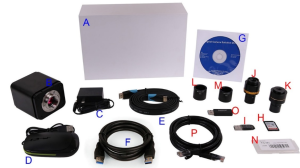

BLC-580AF Camera Packing Information
|
Standard Packing List |
|||
|
A |
Gift box: L:25.5cm W:17.0cm H:9.0cm (1pcs, 1.7Kg/ box) |
||
|
B |
BWHC4-4K8MPA/BWHC4-4KAF8MPA Camera |
||
|
C |
Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A |
||
|
D |
USB Mouse |
||
|
E |
HDMI Cable |
||
|
F |
USB3.0 A male to A male gold-plated connectors cable /2.0m |
||
|
G |
CD (Driver & utilities software, Ø12cm) |
||
|
Optional Accessory |
|||
|
H |
SD Card (16G or above; Speed: class 10) |
||
|
I |
USB flash drive |
||
|
J |
Adjustable lens adapter |
C-Mount to Dia.23.2mm Eyepiece Tube |
|
|
K |
Fixed lens adapter |
C-Mount to Dia.23.2mm Eyepiece Tube |
|
|
Note: For J and K optional items, please specify your camera type (C-mount, microscope camera or telescope camera), the engineer will help you to determine the right microscope or telescope camera adapter for your application; |
|||
|
L |
108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube |
||
|
M |
108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube |
||
|
N |
Calibration kit |
106011/TS-M1(X=0.01mm/100Div.); |
|
|
O |
USB WiFi adapter |
||
|
P |
Ethernet cable |
||
|
Q |
HD1080P133A screen |
||
Sample
Corn Root Tip.L.S Captured with BLC-580AF
Three Year Tilia Stem.C.S Captured with BLC-580AF
Corn Leaf Captured with BLC-580AF
Circuit Board Captured with BLC-580AF
