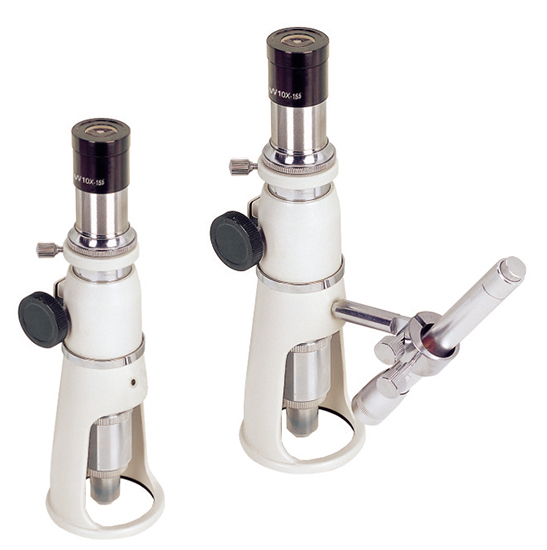

BPM-300BL Portable Measuring Microscope
BPM-300BL Portable Measuring Microscope

BPM-300BL Portable Measuring Microscope

Introduction

BPM-300 series portable measuring microscopes feature smart size, light weight, nice design and easy operation. They are mainly used for measuring or viewing purposes in production or laboratory. They are particularly suitable for spot examination of machinery industry, paper making, printing and textile, etc. They are also suitable to be used by students for education.

Details

Model:BPM-300BL
Magnification:50×
Eyepiece:10×
Objective:
Focus Range:30mm
Working Distance:17.6mm
Numerical Aperture:0.12
Illumination:Pen light
Share

Overview

Quick Details

Model:BPM-300BL

Magnification:50×

Eyepiece:10×

Objective:

Focus Range:30mm

Working Distance:17.6mm

Numerical Aperture:0.12

Illumination:Pen light

Packaging & Delivery

Packaging Details:Strong Carton with Polyfoam Protection

Port:Beijing

Lead Time:Within 1-2 Weeks after Receiving Payment

Introduction

BPM-300 series portable measuring microscopes feature smart size, light weight, nice design and easy operation. They are mainly used for measuring or viewing purposes in production or laboratory. They are particularly suitable for spot examination of machinery industry, paper making, printing and textile, etc. They are also suitable to be used by students for education.

Features

  1. Eyepiece10× with reticleand diopter adjustment.
  2. Various ofreticle for eyepiece to meet different requirements.

Application

BPM-300 series portable measuring microscopes are mainly used for measuring or viewing purposes in production and laboratory area. They are particularly suitable for examination of machinery industry, paper making, printing and textile, etc. They are also suitable to be used by students for education.

Specification

Item

BPM-300A(L)

BPM-300B(L)

BPM-300C(L)

BPM-300D(L)

Total Magnification

100×

50×

40×

20×

Mechanical Tube Length

160mm

Eyepiece

10×

Objective

10×

Numerical Aperture

0.25

0.12

0.1

0.05

Diameter of Viewing field in Eyepiece

φ18mm

Eyepiece Reticle

0.1mm

Fine Division

0.01mm

0.02mm

0.025mm

0.05mm

Working Distance

6.93mm

17.6mm

18mm

17.2mm

Focus Range

30mm

Diameter of Bearing Plane

φ63mm

Height of Microscope

210mm

Mass of Microscope

650g

Illumination

Pen light, No.7 battery







BPM-300A

BPM-300B

BPM-300C

BPM-300D

BPM-300

AL

BPM-300

BL

BPM-300

CL

BPM-300

DL

Eyepiece10×/18 Cross with Reticle

Objective10×













Objective5×













Objective4×













Objective2×













Pen Light Illumination

(with holder, No Battery)









Note: ●Standard Outfit, ○Optional
