BS-1080C Monocular Zoom Microscope
BS-1080C Monocular Zoom Microscope
BS-1080C Monocular Zoom Microscope
BS-1080C Monocular Zoom Microscope
BS-1080C Monocular Zoom Microscope
BS-1080C Monocular Zoom Microscope
BS-1080C Monocular Zoom Microscope
BS-1080C Monocular Zoom Microscope
BS-1080C Monocular Zoom Microscope
BS-1080C Monocular Zoom Microscope
BS-1080C Monocular Zoom Microscope
BS-1080C Monocular Zoom Microscope

BS-1080C Monocular Zoom Microscope

Introduction

BS-1080 Series Monocular Zoom microscopes adopt apochromatic parallel optical imaging system and provide high resolution and sharp stereoscopic images. This series microscopes are designed for the applications in the fields of machine vision, industrial inspection and scientific research. Modularization product portfolio and excellent optical performance make them a better choice in these areas.

Details

Model:BS-1080C
Magnification:0.054×-1500×
Zoom Lens:0.6×-5.0×
Zoom  Ratio:1:8.3
Mounting Size:Φ40mm
C-mount Adapter:0.5× C-mount Adapter
Auxiliary Lens:1× / WD: 88mm
Ring Light:Polarized LED
Share

Overview

Quick Details

Model:BS-1080C

Magnification:0.054×-1500×

Zoom Lens:0.6×-5.0×

Zoom  Ratio:1:8.3

Mounting Size:Φ40mm

C-mount Adapter:0.5× C-mount Adapter

Auxiliary Lens:1× / WD: 88mm

Ring Light:Polarized LED

Packaging & Delivery

Packaging Details:Strong Carton with Polyfoam Protection

Port:Beijing

Lead Time:Within 1-2 Weeks after Receiving Payment

Introduction

BS-1080 Series Monocular Zoom microscopes adopt apochromatic parallel optical imaging system and provide high resolution and sharp stereoscopic images. This series microscopes are designed for the applications in the fields of machine vision, industrial inspection and scientific research. Modularization product portfolio and excellent optical performance make them a better choice in these areas.

Features

  1. Adopt apochromatic parallel optical imaging system, use advanced multi-layer coating technology, excellently correct the imaging on the edge of field of view. Get high-resolution and high contrast images, naturally restore the true colors of observed objects.
  2. Compact design, so that all functions are concentrated in a tube, it is very suitable for the small installation space in modern equipment.
  3. Zoom ratio 1:8.3, zoom range 0.6×-5×, standard working distance 88mm, can meet the requirement of machine vision conventional imaging.
  4. There are a variety of auxiliary lens and C-mount eyepiece adapter for option, make the system’s optical magnification range 0.054×-1500×, working distance 2mm-270mm, object field of view 0.004mm-20mm.
  5. LED Ring light, Polarizing illumination, Coaxial illumination system are optional, Coaxial illumination adopts single high brightness 3W LED, color temperature 5500K, uniform lighting, suitable for high reflectivity surface precision detection and limited exterior lighting occasions.
  6. Adopt modular design, various additional accessories are optional to make the microscope a powerful devoice for your jobs.

Application

BS-1080 series Monocular Zoom Microscope are widely used in educational demonstration, agriculture research, industrial material, semi-conductor, integrated circuit board inspection area and so on.

Specification

Item

Specification

BS-1080A

BS-1080B

BS-1080C

Optical System

Infinite apochromatic parallel optical system

Zoom Lens

Optical zoom magnification: 0.6×-5.0×

Zoom ratio

1:8.3

Viewing head

Monocular Viewing head with 10×/18mm, 15×/12mm, 20×/11mm eyepiece, Φ23.2mm

90° Prism

Used to turn the angle of camera or objective, so as to short the size

Mounting Size

Φ40mm

Mounting Adapter

Mounting Adapter (39.6 to 45mm), used to connect the BS-1080A to 45mm focus arm

Mounting Adapter (39.6 to 50mm), used to connect the BS-1080A to 50mm focus arm

LCD Digital Camera

BLC-520 digital camera with HDMI and WIFI output, can capture 2.0MP pictures, videos and do measurement, control with mouse; 11.6 inch LCD screen, resolution 1920*1080

BLC-520AF Auto focus digital camera with HDMI and WIFI output, can capture 2.0MP pictures, videos and do measurement, control with mouse; 11.6 inch LCD screen, resolution 1920*1080

BLC-550 digital camera with HDMI and WIFI output, can capture 5.0MP pictures, videos and do measurement, control with mouse; 11.6 inch LCD screen, resolution 1920*1080.

BLC-550AF Auto focus digital camera with HDMI and WIFI output, can capture 5.0MP pictures, videos and do measurement, control with mouse; 11.6 inch LCD screen, resolution 1920*1080.

C-mount Adapter

0.3× C-mount adapter

0.4× C-mount adapter

0.5× C-mount adapter

0.67× C-mount adapter

1× C-mount adapter

1.5× C-mount adapter

2× C-mount adapter

3× C-mount adapter

Auxiliary Lens

0.3× /WD: 270mm

0.5× / WD: 160mm

0.6× / WD: 130mm

1× / WD: 88mm

1.5× / WD: 52mm

2× / WD: 39mm

Infinite LWD Plan Achromatic Metallurgical Objective Lens

5×, NA: 0.12, WD: 26.1mm

10×, NA: 0.25, WD: 20.2mm

20×, NA: 0.40, WD: 8.8mm

40×, NA: 0.6, WD: 3.98mm

50×, NA: 0.70, WD: 3.68mm

60×, NA: 0.75, WD: 1.22mm

80×, NA: 0.80, WD: 1.25mm

100×, NA: 0.85, WD: 0.4mm

Infinite LWD Plan Apochromatic Metallurgical Objective

5×, NA: 0.13, WD: 44.5mm

10×, NA: 0.28, WD: 34mm

20×, NA: 0.29, WD: 31mm

50×, NA: 0.42, WD: 20.1mm

Coaxial light Device

Coaxial Device, light input port Φ11mm (does not include light source)

Coaxial point light source: 3W LED, 5500K, brightness adjustable

Polarized Coaxial Device, light input port Φ11mm (does not include light source)

Ring Light

BAL-48A LED Ring light, brightness adjustable

Polarized LED Ring light, brightness adjustable

Other Accessories

Metallurgical objective adapter (used to connect metallurgical objectives onto the zoom body)

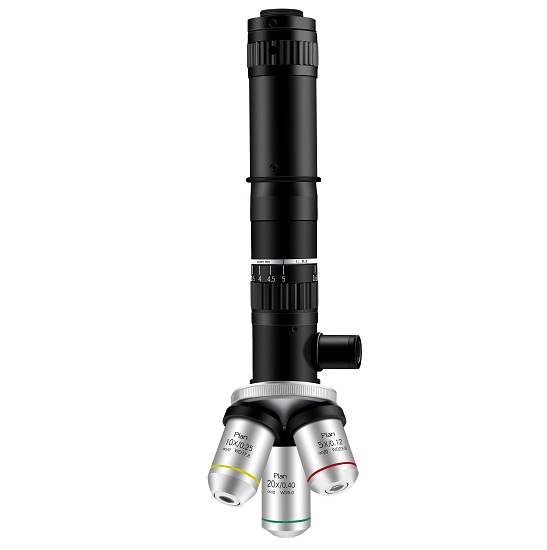

Triple Nosepiece for metallurgical objectives

Quadruple Nosepiece for metallurgical objectives

BSL-3B LED light source with dual goose neck light guide, 6.5W

BMS-302 X-Y moving stage

BSL2-150A-1 Cold light source with Single Light Guide, 150W

BSL2-150A-2 Cold light source with Dual Light Guide, 150W

BSL2-150A-O Cold light source with Annular Ring Light Guide, 150W

Stand and focus arm

BA1 Pillar type column plain stand with coarse focus arm

BA2 Pillar type column plain stand with coarse and fine focus arm

BA3 Square type column plain stand with coarse and fine focus arm

BA4 Square type column plain stand with coarse and fine focus arm, transmitted 10W LED illumination

BA5 multi-angle column plain stand with coarse focus arm

Note: ●Standard Outfit, ○Optional

Optical Parameter

Auxiliary Objectives

CCD C-mount Adapter



0.3×

0.4×

0.5×

0.67×

1.0×

1.5×

2.0×

3.0×

Standard 1.0×/

WD:86mm

Total Mag.

0.18×-1.5×

0.24×-2.0×

0.3×-2.5×

0.4×-3.35×

0.6-5.0×

0.9×-7.5×

1.2× -10.0×

1.8×-15×

FOV (mm)

26×20-3×2.0

20×15-2×1.8

16×12-1.9×1.4

12×9-1.43×1.07

8×6-

0.9×0.7

5×4-

0.6×0.5

4×3-0.5×0.36

2.6×2-0.3×0.2

0.3×/

WD:270mm

Total Mag.

0.05×-0.45×

0.07×-0.6×

0.09×-0.75×

0.12×-1.0×

0.18×-1.5×

0.27×-2.25×

0.36×-3×

0.54×-4.5×

FOV (mm)

96×72-10.6×8

68×51-

8×6

53×40-6.4×4.8

40×30-4.8×3.6

26×20-3.2×2.4

18×13-2×1.6

13×10-1.6×1.2

9×6.6-1.1×0.8

0.5×

/WD:160mm

Total Mag.

0.09×-0.75×

0.12×-1×

0.15×-1.25×

0.201×-1.68×

0.3×-2.5×

0.45×-3.75×

0.6×-5×

0.9×-7.5×

FOV (mm)

53×40-6.4×4.8

40×30-4.8×3.6

32×24-3.8×2.8

23.88×17.9-2.85×2.14

16×12-1.9×1.4

11×8-1.3×0.9

8×6-

0.9×0.7

5×4-

0.6×0.5

0.6×/

WD:130mm

Total Mag.

0.22×-0.9×

0.144×-1.2×

0.18×-1.5×

0.24×-2.0×

0.36×-3×

0.54×-4.5×

0.72×-6×

1.08×-9×

FOV (mm)

22×16-

.3 ×4

33×25-

4×3

26×20-

3×2

20×15-2.4×1.8

13×10-1.6×1.2

9×6.6-1.1×0.8

6.6×51-0.8×0.6

4.4×3-0.5×0.4

1.5×/

WD:50mm

Total Mag.

0.27×-2.25×

0.36×-3×

0.45×-3.75×

0.6×-5.0×

0.9×-7.5×

1.35×-11.25×

1.8×-15×

2.7×-22.5×

FOV (mm)

18×13-2×1.6

13×10-1.6×1.2

11×8-1.3×0.9

8×6-0.9×0.7

5×4-

0.6×0.5

3.5×2.6-0.4×0.3

2.6×2-0.3×0.24

1.7×1.3-0.2×0.1

2.0×/

WD:39mm

Total Mag.

0.36×-3×

0.48×-4×

0.6×-5.0×

0.8×-6.7×

1.2×-10×

1.8×-15×

2.4×-20×

3.6×-30×

FOV (mm)

13×10-1.6×1.2

10×7.5-1.2×0.9

8×6-

0.9×0.7

6×4.5-

0.7×0.54

4×3-0.5×0.36

2.6×2-0.3×0.2

2×1.5-0.2×0.18

1.3×1-0.16×0.12

Remark: Total magnification of lens = Magnification of zoom body × CCD adapter magnification × Objective magnification, The range of Field of View is based on 1/3″CCD Camera (Sensor Width 4.8mm, Height 3.6mm), FOV= the size of camera sensor / total Optical Magnification.
