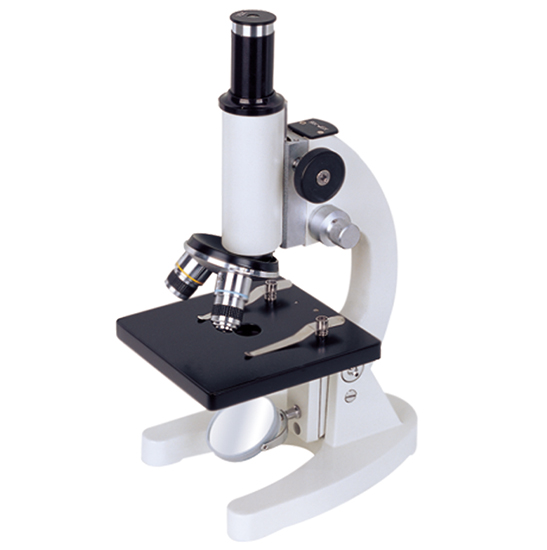

BS-2000B Monocular Biological Microscope
BS-2000B Monocular Biological Microscope

BS-2000B Monocular Biological Microscope

Introduction

With sharp image, competitive and reasonable unit price, BS-2000A, B, C series microscopes are ideal instruments for student use. These microscopes are mainly used in elementary schools.

Details

Model:BS-2000B
Magnification:50-640x
Eyepiece:H5×, H10×, H16x
Objective:Achromatic Objective 10×, 40×
Illumination:Plan-concave Mirror
Stage:Plain Stage with Slide Clips 110×120mm
Condenser:Single Lens with Disc Diaphragm
Share

Overview

Packaging & Delivery

Packaging Details:Strong Carton with Polyfoam Protection

Port:Beijing

Lead Time:Within 2-3 Weeks after Receiving Payment

Introduction

With sharp image, competitive and reasonable unit price, BS-2000A, B, C series microscopes are ideal instruments for student use. These microscopes are mainly used in elementary schools.

Specification

Item

Specification

BS-2000A

BS-2000B

BS-2000C

Eyepiece

Huygens Eyepiece H5×, H10×

Huygens Eyepiece H12.5×





Huygens Eyepiece H16×



Objective

Achromatic Objective 10×, 40×

Achromatic Objective 4×, 60×

Achromatic Objective 100×

Nosepiece

Triple Nosepiece

Stage

Plain Stage with Slide Clips 110×120mm



Attachable Mechanical Stage 110×120mm/ 60×30mm

Condenser

Single Lens with Disc Diaphragm





Single Lens with Iris Diaphragm





Abbe Condenser with Iris Diaphragm and Filter





Illumination system

Plan-concave Mirror

Attachable Illuminator

Filter

Blue Filter





Green Filter





Note: ● Standard Outfit, ○ Optional
