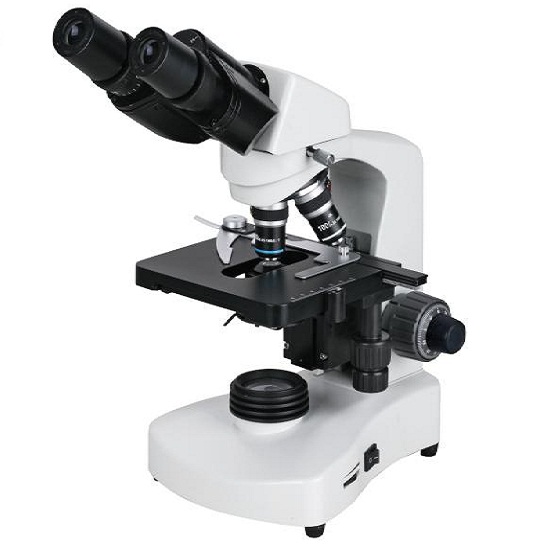

BS-2020B Biological Microscope
BS-2020B Biological Microscope
BS-2020B Biological Microscope
BS-2020B Biological Microscope
BS-2020B Biological Microscope
BS-2020B Biological Microscope

BS-2020B Biological Microscope

Introduction

BS-2020 series microscopes are economic, practical and easy to operate. These microscopes adopt LED illumination, which saves energy, has long working life and also comfortable for observation. These microscopes are widely used in educational, academic, agricultural and study field. With a microscope adapter, a digital camera (or digital eyepiece) can be plug into the trinocular tube or the eyepiece tube. Built-in rechargeable battery is optional for outdoors operation or places that power supply is not stable.

Details

Model:BS-2020B
Magnification:40x-1000x
Eyepiece:WF10X
Objective: 4×, 10×, 40×, 100×(Oil)
Illumination:S-LED
Stage:132×142mm/ 75×40mm
Viewing Head:Binocular
Focusing:Coaxial Coarse
Share

Overview

Quick Details

Model:BS-2020B

Magnification:40x-1000x

Eyepiece:WF10X

Objective: 4×, 10×, 40×, 100×(Oil)

Illumination:S-LED

Stage:132×142mm/ 75×40mm

Viewing Head:Binocular

Focusing:Coaxial Coarse

Packaging & Delivery

Packaging Details:Strong Carton with Polyfoam Protection

Port:Beijing

Lead Time:Within 1-3 Weeks after Receiving Payment

Introduction

BS-2020 series microscopes are economic, practical and easy to operate. These microscopes adopt LED illumination, which saves energy, has long working life and also comfortable for observation. These microscopes are widely used in educational, academic, agricultural and study field. With a microscope adapter, a digital camera (or digital eyepiece) can be plug into the trinocular tube or the eyepiece tube. Built-in rechargeable battery is optional for outdoors operation or places that power supply is not stable.

Features

  1. Comfortable operation with updated and ergonomic design;
  2. LED light illumination, save energy and long working life;
  3. Compact and flexible, ideally suited for desktop, laboratory worktable.

Application

BS-2020 series microscopes are ideally suited for school biological education and medical analyses area to observe all kinds of slides. They can be widely used in clinics, hospitals, schools, academic labs and scientific research department.

Specification

Item

Specification

BS-2020M

BS-2020B

BS-2020T

Viewing Head

Monocular Head, Inclined at 30°, 360° Rotatable





Seidentopf Binocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 48-75mm





Seidentopf Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 55-75mm





Eyepiece

WF10×/18mm

WF16×/11mm

WF25×/8mm

Objective

Achromatic Objective 4×, 10×, 40×, 100×(Oil)

Achromatic Objective 20×, 60×

Nosepiece

Backward Quadruple Nosepiece

Stage

Double Layer Mechanical Stage 132×142mm/ 75×40mm

Focusing

Coaxial Coarse & Fine Adjustment, Fine Division 0.004mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.4mm per Rotation, Moving Range 24mm

Condenser

Abbe NA 1.20 with Iris Diaphram and Filter

Illumination

1W S-LED illumination, Brightness Adjustable

Halogen Lamp 6V/ 20W, Brightness Adjustable

Immersion oil

5ml Immersion oil

Optional Accessories

Phase Contrast Kit

Dark Field Attachment

Polarization Attachment

Rechargeable battery

Package

1pc/carton, 39.5cm*26.5cm*50cm, 7kg

Note: ● Standard Outfit, ○ Optional
