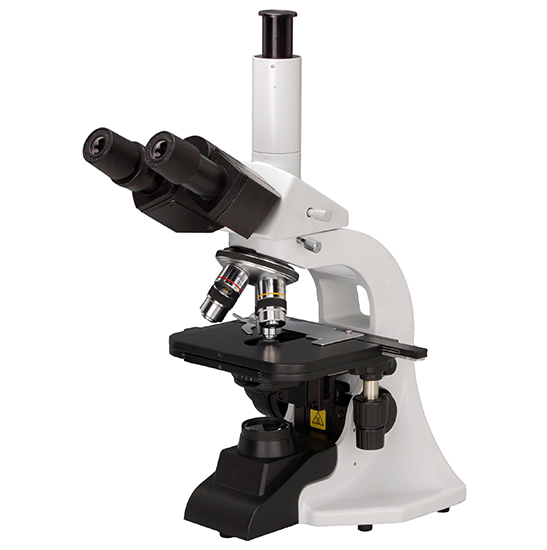

BS-2023T Trinocular Biological Microscope
BS-2023T Trinocular Biological Microscope
BS-2023T Trinocular Biological Microscope
BS-2023T Trinocular Biological Microscope
BS-2023T Trinocular Biological Microscope
BS-2023T Trinocular Biological Microscope

BS-2023T Trinocular Biological Microscope

Introduction

BS-2023 series microscopes are economic, practical and easy to operate. These microscopes adopt LED illumination, which save energy and have long working life, it is also very comfortable for observation. These microscopes are widely used in educational, academic, agricultural and study field. With a microscope adapter, a digital camera (or digital eyepiece) can be plug into the trinocular tube or the eyepiece tube. Rechargeable battery is optional for outdoors operation or places that power supply is not stable.

Details

Model:BS-2023T
Magnification:40x-1000x
Eyepiece:WF10x
Objective:4×, 10×, 40×, 100×(Oil)
Illumination:S-LED
Stage:132×142mm/ 75×40mm
Viewing Head:Trinocular
Focusing:Coaxial Coarse
Share

Overview

Packaging & Delivery

Packaging Details:Strong Carton with Polyfoam Protection

Port:Beijing

Lead Time:Within 1-4 Weeks after Receiving Payment

Introduction

BS-2023 series microscopes are economic, practical and easy to operate. These microscopes adopt LED illumination, which save energy and have long working life, it is also very comfortable for observation. These microscopes are widely used in educational, academic, agricultural and study field. With a microscope adapter, a digital camera (or digital eyepiece) can be plug into the trinocular tube or the eyepiece tube. Rechargeable battery is optional for outdoors operation or places that power supply is not stable.

Features

  1. Infinite optical system.
  2. New machining facility and advanced alignment technology.
  3. Comfortable operation with updated and ergonomic design.
  4. LED light illumination, save energy and long working life.
  5. Compact and flexible, ideally suited for desktop, laboratory worktable.
  6. Eyepoint height and interpupillary distance can be adjusted to fit for observation.

Application

BS-2023 series microscopes are ideally suited for school biological education and medical analyses area to observe all kinds of slides. They can be widely used in clinics, hospitals, schools, academic labs and scientific research department.

Specification

Item

Specification

BS-2023B

BS-2023T

Optical System

Infinite Optical System

Viewing Head

Seidentopf Binocular Head, Inclined at 30°, 360° Rotatable, Interpupillary Distance 48-75mm,



Seidentopf Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupillary Distance 48-75mm



Eyepiece

WF10×/18mm

Objective

Infinite Plan Achromatic Objective 4×, 10×, 40×, 100×(Oil)

Infinite Plan Achromatic Objective 20×, 60×

Nosepiece

Quadruple Nosepiece

Stage

Double Layer Mechanical Stage 132×142mm/ 75×40mm

Focusing

Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm

Condenser

Abbe NA 1.25 with Iris Diaphragm

Illumination

1W S-LED illumination, Brightness Adjustable

12V/ 20W Halogen Lamp, Brightness Adjustable

Kohler illumination

Optional Accessories

Phase Contrast Kit

Dark Field Condenser

Polarization Attachment

Rechargeable battery

Photo adapter for Nikon or Canon DSLR camera

Video adapter: 1X or 0.5X C-mount adapter

Package

1pc/carton, 32cm*26cm*44cm, 6kg

Note: ● Standard Outfit, ○ Optional
