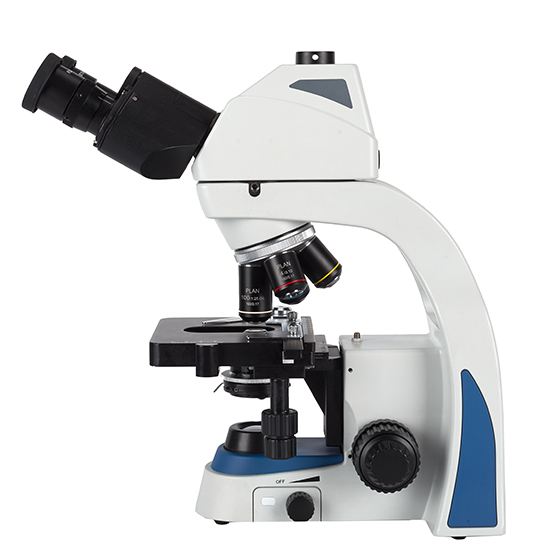

BS-2026T Trinocular Biological Microscope
BS-2026T Trinocular Biological Microscope
BS-2026T Trinocular Biological Microscope
BS-2026T Trinocular Biological Microscope
BS-2026T Trinocular Biological Microscope
BS-2026T Trinocular Biological Microscope
BS-2026T Trinocular Biological Microscope
BS-2026T Trinocular Biological Microscope
BS-2026T Trinocular Biological Microscope
BS-2026T Trinocular Biological Microscope

BS-2026T Trinocular Biological Microscope

Introduction

BS-2026 series biological microscopes are economic and easy to operate with clear image. These microscopes adopt LED illumination and ergonomics design, comfortable for observation. These microscopes are widely used in educational, academic, agricultural and study field. Rechargeable battery compartment is standard for outdoors operation or places that power supply is not stable.

Details

ModelBS-2026T
Viewing HeadSeidentopf Trinocular Head
EyepiecePL10×/18mm
ObjectiveAchromatic Objective
NosepieceBackward Quadruple Nosepiece
Stage115×125mm/ 70×30mm
FocusingLow-Position Coarse
Illumination0.2W LED Illumination
Share

Overview

Packaging & Delivery

Packaging Details:Strong Carton with Polyfoam Protection

Port:Beijing

Lead Time:Within 2-3 Weeks after Receiving Payment

Introduction

BS-2026 series biological microscopes are economic and easy to operate with clear image. These microscopes adopt LED illumination and ergonomics design, comfortable for observation. These microscopes are widely used in educational, academic, agricultural and study field. Rechargeable battery compartment is standard for outdoors operation or places that power supply is not stable.

Features

1.Comfortable operation with ergonomic design.

2.Rechargeable LED illumination system. The built-in rechargeable module in the base can be charged when the microscope is working. With long battery life, the microscopes can work when there is no power supply. Charging indicator on the right side of the base is clear to know the power supply working status.

3.Cord rest on back of the microscope. The power supply plug can be wrapped at the back of the microscope, it is helpful to clean the working environment and effective to avoid the accident when moving the microscope. Adopted USB power cable, it can be powered by computer(laptop) or portable power source, more convenient and flexible.

4.Compact and flexible, ideally suited for desktop, laboratory worktable.

Application

BS-2026 series microscopes are ideally suited for school biological education and medical analyses area to observe all kinds of slides. They can be widely used in schools, clinics, hospitals, academic labs and scientific research department.

Specification

Item

Specification

BS-2026M

BS-2026B

BS-2026T

BS-2026BD1

Optical System

Finite Optical System

Viewing Head

Monocular Head, Inclined at 30°, 360° Rotatable, with locking mechanism for eyepieces







Seidentopf Binocular Head, Inclined at 30°, 360° Rotatable, with locking mechanism for eyepieces, right diopter adjustment:±5, Interpupillary Distance 50-75mm







Seidentopf Trinocular Head, Inclined at 30°, 360° Rotatable, with locking mechanism for eyepieces, right diopter adjustment:±5, Interpupillary Distance 50-75mm, Light Distribution Eyepiece: Trinocular=50:50







Seidentopf Binocular Head with built-in 2.0MP WIFI camera, Inclined at 30°, 360° Rotatable, with locking mechanism for eyepieces, right diopter adjustment:±5, Interpupillary Distance 50-75mm, with Micro USB port for tablet PC charging, with 360° Rotatable stand for tablet PC, support tablet PC from 6-13”, external tablet PC stand is optional







Eyepiece

PL10×/18mm

PL10×/18mm with pointer

PL10×/18mm with eyepiece micrometer

Objective

Achromatic Objective

4×/0.10, WD=21.50mm

10×/0.25, WD=6.26mm

40×(S)/0.65, WD=0.48mm

100×(S,Oil)/1.25, WD=0.15mm

Plan Achromatic Objective

4×/0.10, WD=15.09mm

10×/0.25, WD=8.57mm

20×(S)/0.40, WD=8.72mm

40×(S)/0.65, WD=0.38mm

100×(S,Oil)/1.25, WD=0.09mm

Nosepiece

Backward Quadruple Nosepiece

Stage

Single Layer Stage with two clips, Stage size 110×120mm

Double Layers Mechanical Stage 115×125mm/ 75×35mm

Focusing

Low-position coarse and fine adjustment with stop and tighten structure, moving range: 13mm (combine with single layer stage), 7mm (combine with double layers mechanical stage); fine precision 0.002mm

Condenser

NA 0.65 simple condenser with five-hole rotatable diaphragm

NA 1.25 Abbe condenser with iris diaphragm and filter holder

Illumination

0.2W LED illumination (color temperature 5700-6500K), intensity adjustable; external power adapter (input 100V-240V, output 5V/1A), with rechargeable battery compartment(for 3pcs Ni-MH AA battery, battery not included)



0.2W LED illumination (color temperature 5700-6500K), intensity adjustable; external power adapter (input 100V-240V, output 12V/3.3A), microscope body output of 12V/3.3A for built-in camera, with rechargeable battery compartment(for 3pcs Ni-MH AA battery, battery not included)

C-mount Adapter

0.35× C-mount (Adjustable)







0.5× C-mount (Adjustable)







0.65× C-mount (Adjustable)







1× C-mount (Adjustable)







Packaging

1pc/carton, 44cm*47cm*24cm, GW:6kgs, NW: 5kgs

Note: ● Standard Outfit, ○ Optional
