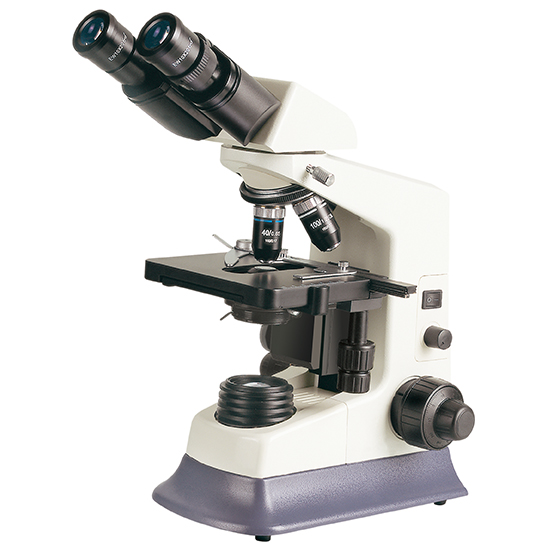

BS-2035B Binocular Biological Microscope
BS-2035B Binocular Biological Microscope
BS-2035B Binocular Biological Microscope
BS-2035B Binocular Biological Microscope
BS-2035B Binocular Biological Microscope
BS-2035B Binocular Biological Microscope

BS-2035B Binocular Biological Microscope

Introduction

BS-2035 series microscopes are classical biological microscopes, which feature ingenious stand, backward nosepiece and flexible structure. Nice shape, excellent optical system and flexible outfit make you enjoy the job.

Details

Model:BS-2035B
Magnification:40x-1000x
Eyepiece:EW10x
Objective:4×, 10×, 40×, 100×
Illumination:S-LED
Stage:140×140mm/ 75×50mm
Viewing Head:Binocular
CondenserNA 1.25
Share

Overview

Packaging & Delivery

Packaging Details:Strong Carton with Polyfoam Protection

Port:Beijing

Lead Time:Within 2-4 Weeks after Receiving Payment

Introduction

BS-2035 series microscopes are classical biological microscopes, which feature ingenious stand, backward nosepiece and flexible structure. Nice shape, excellent optical system and flexible outfit make you enjoy the job.

Features

  1. Convenient and Comfortable Observing with High Point and Wide Field Eyepiece EW10×/ 20mm.
  2. Sharp and Bright Image with Semi-plan Objectives.
  3. Suitable for Different Region Power, supply with 100V-240V wide range input voltage.

Application

BS-2035 series microscopes are ideal instrument for biology field, bacteriology field, immunology field, pharmacology field and so on. They widely used in academic, medical and clinical areas for biological, pathological, bacterial, histological, immune and genetic applications.

Specification

Item

Specification

BS-2035B

BS-2035T

Viewing Head

Seidentopf Binocular Head, Inclined at 30°, 360° Rotatable, interpupillary distance 55-75mm



Seidentopf Trinocular Head, Inclined at 30°, 360° Rotatable, interpupillary distance 55-75mm



Eyepiece

Wide Field Eyepiece EW10×/ 20mm

Wide Field Eyepiece P16×/ 11mm

Objective

Semi-plan Achromatic Objective 4×, 10×, 40×, 100×

Plan Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100×

Infinite Plan Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100×

Nosepiece

Backward Quadruple Nosepiece

Backward Quintuple Nosepiece

Stage

Double Layers Mechanical Stage 140×140mm/ 75×50mm

Focus

Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm

Condenser

NA 1.25 Abbe Condenser with Iris Diaphragm and Filter

Illumination

1W S-LED Illumination, Brightness Adjustable

6V/ 20W Halogen Lamp, Brightness Adjustable

Kohler Illumination

Photo Adapter

Used to connect Nikon or Olympus DSLR camera to microscope



Video Adapter

C-Mount 1× & 0.5×



Filter

Blue, Green Filter

Polarization Set

Simple Polarization Set

Phase Contrast Kit

Simple Phase Contrast Kit

Sliding Phase Contrast Kit

Turret Phase Contrast Kit

Dark Field Attachment

Dark Field Condenser (Dry) NA 0.7-0.9

Dark Field Condenser (Oil) NA 1.25-1.36

Fluorescent Attachment

YX-2 Epi-fluorescent Attachment

Pointer

Green LED Pointer System

Dimension& G.W.

35cm*31cm*57cm, 9.5kg

Note: ●Standard Outfit, ○Optional
