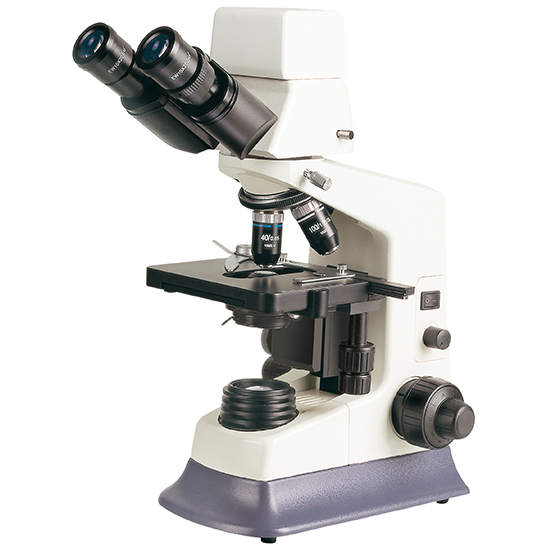

BS-2035DA1 Binocular Digital Microscope
BS-2035DA1 Binocular Digital Microscope
BS-2035DA1 Binocular Digital Microscope
BS-2035DA1 Binocular Digital Microscope
BS-2035DA1 Binocular Digital Microscope
BS-2035DA1 Binocular Digital Microscope

BS-2035DA1 Binocular Digital Microscope

Introduction

BS-2035DA series digital microscopes are classical, the microscopes feature ingenious stand, sharp image, comfortable operation and high-resolution camera, which make your work much enjoyable.

Details

Model:BS-2035DA1
Magnification:40x-1000x
Eyepiece:EW10x
Objective:4×, 10×, 40×, 100×
Illumination:S-LED
Stage:140×140mm/ 75×50mm
Viewing Head:Binocular
Camera:1.3MP CMOS
Share

Overview

Packaging & Delivery

Packaging Details:Strong Carton with Polyfoam Protection

Port:Beijing

Lead Time:Within 2-4 Weeks after Receiving Payment

Introduction

BS-2035DA series digital microscopes are classical, the microscopes feature ingenious stand, sharp image, comfortable operation and high-resolution camera, which make your work much enjoyable.

Features

  1. With built-in 1.3MP digital camera, 2.0MP, 3.2MP, 5.0MP cameras are optional.
  2. Sharpe Image with Semi-plan Achromatic Objectives.
  3. Easy to replace lamp.
  4. Professional and powerful micro-image process and analysis software.

Application

BS-2035DA series digital microscopes are widely used in hospitals, clinics, medical academies, morphology and related research centers for biological, pathological, bacterial, histological, immune, pharmacological and genetic applications.

Specification

Item

Specification

BS-

2035DA1

BS-

2035DA2

Digital System

1.3MP CMOS digital camera with high-resolution, 1280×1024, USB2.0 output

2.0MP CMOS digital camera with high-resolution, 1600×1200, USB2.0 output

3.0MP CMOS digital camera with high-resolution, 2048×1536, USB2.0 output

5.0MP CMOS digital camera with high-resolution, 2592×1944, USB2.0 output

Viewing Head

Seidentopf type Binocular Head at 30°, Interpupilary Distance 55-75mm



Seidentopf type Binocular Head at 30°, Interpupilary Distance 48-75mm



Eyepiece

Extra Wide Field EW10×/20mm

Nosepiece

Backward Quadruple Nosepiece

Backward Quintuple Nosepiece

Objective

Semi-plan Achromatic Objective 4×, 10×, 40×, 100×

Plan Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100×

Infinite Plan Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100×

Condenser

NA1.25 Abbe Condenser with iris diaphragm and filter, rack & pinion adjustment

Stage

Double Layers Mechanical Stage 140×140mm/ 75×50mm

Illumination

1W S-LED Illumination, Brightness Adjustable

6V/20W Halogen Lamp, Brightness Adjustable

Kohler Illumination

Filter

Blue and Green Filter

Phase Contrast Kit

Turret Phase Contrast Kit

Polarization Set

Simple Polarization Attachment

Dark-field Attachment

Dark-field Condenser(Dry)

Dark-field Condenser(Oil)

Pointer

LED Pointer

Software

ScopeImage 9.0

Note: ●Standard Outfit, ○Optional
