BS-2040BD Binocular Digital Microscope
BS-2040BD Binocular Digital Microscope
BS-2040BD Binocular Digital Microscope
BS-2040BD Binocular Digital Microscope
BS-2040BD Binocular Digital Microscope
BS-2040BD Binocular Digital Microscope
BS-2040BD Binocular Digital Microscope
BS-2040BD Binocular Digital Microscope
BS-2040BD Binocular Digital Microscope
BS-2040BD Binocular Digital Microscope

BS-2040BD Binocular Digital Microscope

Introduction

BS-2040 series microscopes are classical biological microscopes with ingenious stand, high definition infinite optical system, sharp image and comfortable operation, which make your work much enjoyable.

Details

Model:BS-2040BD
Magnification:40x-1000x
Eyepiece:WF10x
Objective:4×, 10×, 40×, 100×
Illumination:S-LED
Stage:140mm×140mm
Viewing Head:Binocular
Camera:3.0 MP
Share

Overview

Packaging & Delivery

Packaging Details:Strong Carton with Polyfoam Protection

Port:Beijing

Lead Time:Within 2-4 Weeks after Receiving Payment

Introduction

BS-2040 series microscopes are classical biological microscopes with ingenious stand, high definition infinite optical system, sharp image and comfortable operation, which make your work much enjoyable.

Features

  1. Infinite Optical System.
  2. Extra Wide Field Eyepiece EW10×/20 with Diopter Adjustment is optional.
  3. Sliding-in Centerable Condenser.
  4. Easy carrying Handle.
  5. BS-2040BD support Multi-language (Arabic, Chinese, English, French, Germen, Japanese, Polish).
  6. BS-2040BD support Windows Vista / Win 7 / Win8 / Win 10 Operation System. The software can preview, take photos and video, do image processing and measurement.

Application

BS-2040 series microscopes are ideal instruments in biological, pathological, histological, bacterial, immune, pharmacological and genetic fields. They can be widely used in medical and sanitary establishments, such as hospitals, clinics, laboratories, medical academies, colleges, universities and related research centers.

Specification

Item

Specification

BS-

2040B

BS-

2040T

BS-

2040BD

Optical System

Infinite Optical System

Viewing Head

Seidentopf binocular head, 30° inclined, Interpupillary 48-75mm





Seidentopf trinocular head, 30° inclined, Interpupillary 48-75mm





Built-in 3.0MP digital camera with ScopeImage 9.0 Software; Binocular Head, Inclined at 30°, Interpupillary Distance 48-75mm





Eyepiece

Wide Field Eyepiece WF 10×/18mm

Extra Wide Field Eyepiece EW10×/20 with Diopter Adjustment

Objective

Infinite Semi-plan Achromatic Objectives 4×, 10×, 40×, 100×

Infinite Plan Achromatic Objectives 2×, 4×, 10×, 20×, 40×, 60×, 100×

Nosepiece

Backward Quadruple Nosepiece

Backward Quintuple Nosepiece

Stage

Double Layers Mechanical Stage 140mm×140mm/ 75mm×50mm

Left hand operation Double Layers Mechanical Stage 140mm×140mm/ 75mm×50mm

Condenser

Sliding-in Centerable Condenser NA1.25

Focusing

Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm

Illumination

1W S-LED Lamp, Brightness Adjustable

6V/20W Halogen Lamp, Brightness Adjustable

Optional accessories

Phase Contrast Kit

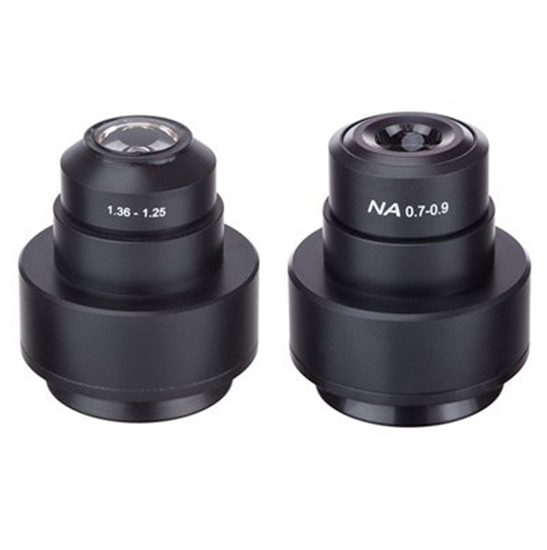

Dark Field Attachment

YX-2 Epi-fluorescent Attachment

FL-LED Epi-fluorescent Attachment

Package

1pc/carton, 35cm*35.5cm*55.5cm, gross weight: 12kg

Note: ● Standard Outfit, ○ Optional
