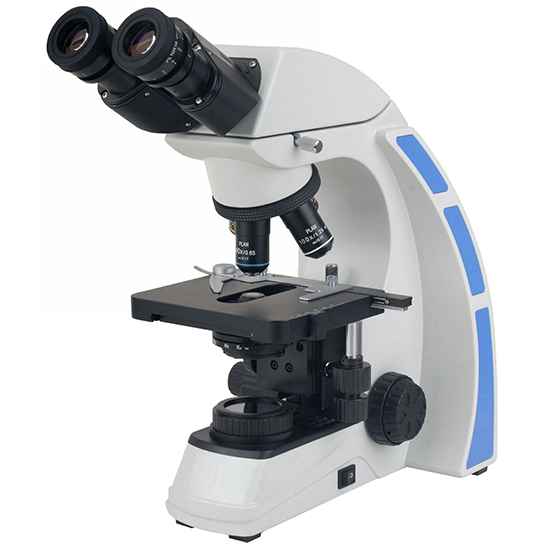

BS-2042B Binocular Biological Microscope
BS-2042B Binocular Biological Microscope
BS-2042B Binocular Biological Microscope
BS-2042B Binocular Biological Microscope
BS-2042B Binocular Biological Microscope
BS-2042B Binocular Biological Microscope

BS-2042B Binocular Biological Microscope

Introduction

BS-2042 series microscopes are classical biological microscopes with ingenious stand, high definition infinite optical system, sharp image and comfortable operation, which make your work much enjoyable.

Details

Model:BS-2042B
Magnification:40x-1000x
Eyepiece:Plan 10×
Objective:4×, 10×, 40×, 100×
Illumination:Koehler
Stage:140mm×132mm
Viewing Head:Binocular
Condenser:NA1.25
Share

Overview

Packaging & Delivery

Packaging Details:Strong Carton with Polyfoam Protection

Port:Beijing

Lead Time:Within 2-4 Weeks after Receiving Payment

Introduction

BS-2042 series microscopes are classical biological microscopes with ingenious stand, high definition infinite optical system, sharp image and comfortable operation, which make your work much enjoyable.

Features

  1. Infinite Color Corrected Optical System.
  2. Sensitive dimming system
  3. Koehler illumination.
  4. Easy carrying Handle.

Application

BS-2042 series microscopes are ideal instruments in biological, pathological, histological, bacterial, immune, pharmacological and genetic fields. They can be widely used in medical and sanitary establishments, such as hospitals, clinics, laboratories, medical academies, colleges, universities and related research centers.

Specification

Item

Specification

BS-2042B

BS-2042T

Optical System

Infinite Color Corrected Optical System

Viewing Head

Seidentopf binocular head, 30° inclined, Interpupillary 48-75mm



Seidentopf trinocular head, 30° inclined, Interpupillary 48-75mm, Light splitting ratio: Eyepiece:Trinocular=8:2



Eyepiece

Plan 10×/18mm with adjustable diopter

Plan 10×/20mm with adjustable diopter

Objective

Infinite plan Achromatic Objectives 4×, 10×, 40×, 100×

Nosepiece

Reversed Quadruple Nosepiece

Reversed Quintuple Nosepiece

Stage

Double Layers Mechanical Stage 140mm×132mm, moving range 76mm×50mm

Condenser

NA1.25 Condenser (with slot for phase contrast and darkfield accessories)

Focusing

Coaxial focusing system with tension adjustable, coarse:25mm per rotation, with upper limit and tightness adjustment, Fine Division 0.002mm

Illumination

100V-240V, single high brightness 3W LED Koehler illumination, intensity adjustable

100V-240V, Philips 6V/20W halogen Koehler illumination, intensity adjustable

Optional accessories

Phase Contrast Kit

Dark Field Attachment

Polarizing attachment

Video & photo accessories (1/3×, 1/2×, 1× C-mount)



Various filters (Blue, Green, Yellow and frosted)

Note: ● Standard Outfit, ○ Optional
