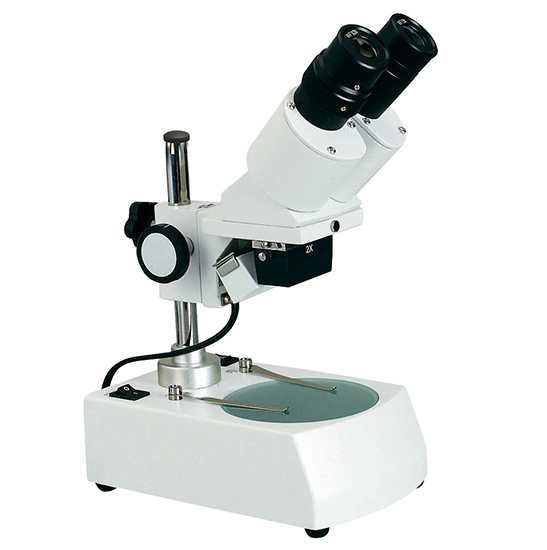

BS-3002C Binocular Stereo Microscope
BS-3002C Binocular Stereo Microscope

BS-3002C Binocular Stereo Microscope

Introduction

BS-3002 series stereo microscopes are smart and cost-effective stereo microscopes. A variety of eyepieces and objectives are available for different requirements. They are widely used in electric factories, schools laboratories, sculpture, families and so on.

Details

Model:BS-3002C
Magnification:5x-120x
Eyepiece:WF10×
Objective:
Illumination:Incident & Transmitted Illumination
Viewing Head:Binocular
Share

Overview

Packaging & Delivery

Packaging Details:Strong Carton with Polyfoam Protection

Port:Beijing

Lead Time:Within 1-2 Weeks after Receiving Payment

Introduction

BS-3002 series stereo microscopes are smart and cost-effective stereo microscopes. A variety of eyepieces and objectives are available for different requirements. They are widely used in electric factories, schools laboratories, sculpture, families and so on.

Features

  1. Sharp stereo erect image over a wide field of view.
  2. 45° Inclined binocular head with locked-in eyepiece. The left ocular-tube with diopter adjustment ±5dp.
  3. V-shape inserted objective with locked-in structure, easy to replace.
  4. CE approved.
  5. A wide range of accessories for selection.

Application

BS-3002 series stereo microscopes are widely applied in school education, circuit board inspection and repair, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, inspection and repair of small parts.

Specification

Item

Specification

BS-3002A

BS-3002B

BS-3002C

Viewing Head

Binocular Viewing Head, 45° Inclined, Interpupillary Distance 55-75mm, diopter adjustment ±5dp on left ocular-tube, Tube diameter 23.2mm

Eyepiece

WF5×/20mm

WF10×/20mm

WF15×/15mm

WF20×/10mm

Objective

1×, Working distance 57mm

2×, Working distance 80mm

3×, Working distance 61mm

4×, Working distance 57mm

6×, Working distance 66mm

Illumination

Natural illumination, Natural light





Incident illumination, Incandescent lamp 12V10W





Incident & transmitted illumination, Incandescent lamp 12V10W





Working Plate

Φ60 White&black Plate



Φ95 Frosted glass and White&Black Plate





Power supply

110V/60HZ or 220V/50HZ.

Package

4pcs/carton, 68cm*31cm*38cm, Gross weight 11kg, Net weight 7kg

Note: ● Standard Outfit, ○ Optional
