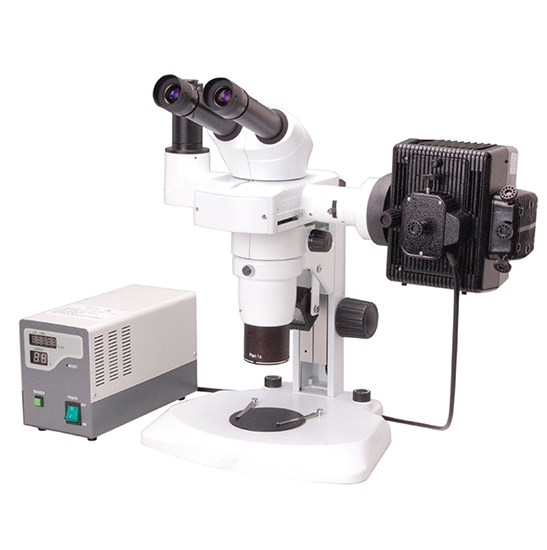

BS-3060FA Fluorescent Binocular Stereo Microscope
BS-3060FA Fluorescent Binocular Stereo Microscope
BS-3060FA Fluorescent Binocular Stereo Microscope
BS-3060FA Fluorescent Binocular Stereo Microscope
BS-3060FA Fluorescent Binocular Stereo Microscope
BS-3060FA Fluorescent Binocular Stereo Microscope

BS-3060FA Fluorescent Binocular Stereo Microscope

Introduction

BS-3060F series fluorescent stereo microscopes were designed for observation of live cells. They cover wide magnification range from 2.4×~480×, and offer sophisticated accessories. This allows the scientist to see and photograph specimens from macro views to high-magnification micro visualization. Photo tube comes with the microscope, CCD camera can be mounted on the photo tube for image capture and analysis.

Details

Model:BS-3060FA
Magnification:8×-50×
Eyepiece:EW10×
Objective:0.8×-5×
Working Distance:78mm
Illumination:LED
Viewing Head:Binocular
Zoom Ratio:1: 6
Fluorescent Attachment:GFP-B, GFP-L
Share

Overview

Packaging & Delivery

Packaging Details:Strong Carton with Polyfoam Protection

Port:Beijing

Lead Time:Within 1-2 Weeks after Receiving Payment

Introduction

BS-3060F series fluorescent stereo microscopes were designed for observation of live cells. They cover wide magnification range from 2.4×~480×, and offer sophisticated accessories. This allows the scientist to see and photograph specimens from macro views to high-magnification micro visualization. Photo tube comes with the microscope, CCD camera can be mounted on the photo tube for image capture and analysis.

Features

  1. Excellent Image Quality and Performance with Infinity Parallel Optical System.
  2. High-eyepoint Eyepieces with Diopter Adjustment makes comfortable viewing.
  3. Wide Magnification range from 2.4×~480×, allows you to select the best magnification to match your application, extending from the macro to the micro range.
  4. High quality Epi-fluorescence attachment allows easy observation of living cells under fluorescence methods such as GFP. Switching between fluorescence and transmitted illumination is quick and easy.
  5. CCD camera can be mounted on the photo tube. Because 100% of the light is delivered to the photo port, bright images are guaranteed.
  6. A Wide Range of Accessories are available for Multi-purpose.

Application

BS-3060 series fluorescent stereo microscopes can be used in biology, life science, Forensic Science, Embryology/IVF, Lab-on-a-Chip, Palaeontology, Marine Biology, Regenerative Studies, Formulation Science, Veterinary areas and so on. They provide great help for scientists.

Specification

Item

Specification

BS-3060

FA

BS-3060

FB

BS-3060

FC

Optical System

Infinite Parallel Zoom Optical System

Viewing Head

Binocular Head, 20°Inclination, Interpupilary Distance 55-75mm

Tilting Binocular Eyepiece Tube, 5°-35° Inclined, Interpupilary Distance 55-75mm

Eyepiece

EW10×/Φ22mm

EW10×/Φ24mm

WF15×/Φ16mm

WF20×/Φ12mm

WF30×/Φ8mm

Fluorescent Attachment

GFP-B(EX460-500,DM505,BA510-560)

GFP-L(EX460-500,DM505,BA510)

G(EX515-550, DM570, BA590)

Zoom Objective

0.8×-5×





0.8×-6.4×





0.8×-8×





Objective

Plan Achromatic Objective 1×, W.D.: 78mm

Achromatic Objective 0.3×, W.D.: 276mm

Achromatic Objective 0.5×, W.D.: 195mm

Plan Apochromatic Objective 0.5×, W.D.: 126mm

Plan Achromatic Objective 2×, W.D.: 32.5mm

Zoom Ratio

1: 6





1: 8





1: 10





Focusing Range

105mm

Stand

Coaxial coarse focusing stand



Coaxial coarse&fine focusing stand





Illumination

Transmitted & Incident LED Illumination, Brightness Adjustable

100W Ultra hi-voltage spherical mercury lamp, power supplier with digital display

Note: ● Standard Outfit, ○ Optional
