Introduction

BS-4020A industrial inspection microscope has been specially designed for inspections of various size wafers and large PCB. This microscope can provide a reliable, comfortable and precise observation experience. With perfectly performed structure, high-definition optical system and ergonomical operating system, BS-4020A realizes professional analysis and meets various needs of research and inspection of wafers, FPD, circuit package, PCB, material science, precision casting, metalloceramics, precision mould, semiconductor and electronics etc.

Details

Model:BS-4020A
Magnification:50x-1000x
Eyepiece:SW10X/25mm
Objective:5x, 10x, 20x, 50x, 100x
Stage:3 Layers Mechanical Stage
Reflected Illumination:24V/100W Halogen Lamp
Nosepiece:Backward Sextuple Nosepiece
Focusing:Coaxial Coarse
Share

Overview

Packaging & Delivery

Packaging Details:Strong Carton with Polyfoam Protection

Port:Beijing

Lead Time:Within 4-5 Weeks after Receiving Payment

Introduction

BS-4020A industrial inspection microscope has been specially designed for inspections of various size wafers and large PCB. This microscope can provide a reliable, comfortable and precise observation experience. With perfectly performed structure, high-definition optical system and ergonomical operating system, BS-4020A realizes professional analysis and meets various needs of research and inspection of wafers, FPD, circuit package, PCB, material science, precision casting, metalloceramics, precision mould, semiconductor and electronics etc.

Features

1.Perfect microscopic illumination system.

2.High quality Semi-APO and APO Bright field &Dark field objectives.

3.The operating panel is in the front of the microscope, convenient to operate.

4.Ergo tilting trinocular viewing head.

5.Focusing mechanism and fine adjustment handle of stage with low hand position.

6.The stage has a built-in clutching handle.

7. Oversized stage (14”x 12”) can be used for large wafers and PCB.

8. 12” wafers holder comes with the microscope.

9. Anti-static protective cover can reduce dust.

10. Longer working distance and high NA objective.

11. Various observation methods can meet diverse testing requirements.

Bright field of reflected illumination

Dark field

Bright field of transmitted illumination

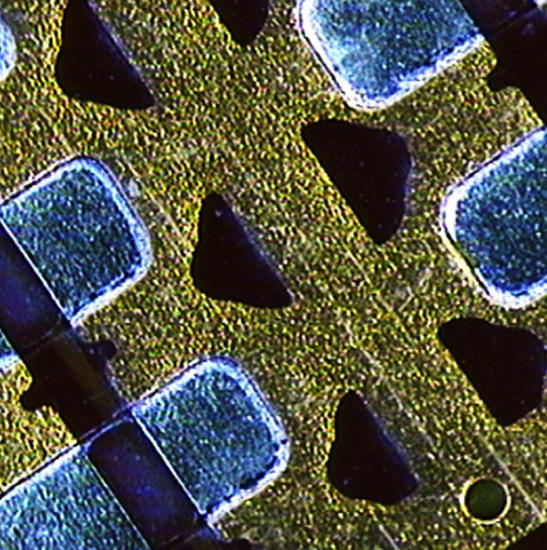

Simple polarization

Reflected illumination DIC

Application

BS-4020A industrial inspection microscope is an ideal instrument for inspections of various size wafers and large PCB. This microscope can be used in universities, electronics and chips factories for research and inspection of wafers, FPD, circuit package, PCB, material science, precision casting, metalloceramics, precision mould, semiconductor and electronics etc.

Specification

Item

Specification

BS-4020A

BS-4020B

Optical System

NIS45 Infinite Color Corrected Optical System (Tube length: 200mm)

Viewing Head

Ergo Tilting Trinocular Head, adjustable 0-35° inclined, interpupillary distance 47mm-78mm; splitting ratio Eyepiece:Trinocular=100:0 or 20:80 or 0:100

Seidentopf Trinocular Head, 30° inclined, interpupillary distance: 47mm-78mm; splitting ratio Eyepiece:Trinocular=100:0 or 20:80 or 0:100

Seidentopf Binocular Head, 30° inclined, interpupillary distance: 47mm-78mm

Eyepiece

Super wide field plan eyepiece SW10X/25mm, diopter adjustable

Super wide field plan eyepiece SW10X/22mm, diopter adjustable

Extra wide field plan eyepiece EW12.5X/17.5mm, diopter adjustable

Wide field plan eyepiece WF15X/16mm, diopter adjustable

Wide field plan eyepiece WF20X/12mm, diopter adjustable

Objective

NIS45 Infinite LWD Plan Semi-APO Objective (BF & DF), M26

5X/NA=0.15, WD=20mm

10X/NA=0.3, WD=11mm

20X/NA=0.45, WD=3.0mm

NIS45 Infinite LWD Plan APO Objective (BF & DF), M26

50X/NA=0.8, WD=1.0mm

100X/NA=0.9, WD=1.0mm

NIS60 Infinite LWD Plan Semi-APO Objective (BF), M25

5X/NA=0.15, WD=20mm

10X/NA=0.3, WD=11mm

20X/NA=0.45, WD=3.0mm

NIS60 Infinite LWD Plan APO Objective (BF), M25

50X/NA=0.8, WD=1.0mm

100X/NA=0.9, WD=1.0mm

Nosepiece

Backward Sextuple Nosepiece (with DIC slot)

Condenser

LWD condenser N.A.0.65

Transmitted Illumination

40W LED power supply with optical fiber light guide, intensity adjustable

Reflected Illumination

Reflected light 24V/100W halogen lamp, Koehler illumination, with 6 position turret

100W halogen lamp house

Reflected light with 5W LED lamp, Koehler illumination, with 6 position turret

BF1 bright field module

BF2 bright field module

DF dark field module

Built-in ND6, ND25 filter and color correction filter

ECO Function

ECO function with ECO button

Focusing

Low-position coaxial coarse and fine focusing, fine division 1μm, Moving range 35mm

Stage

3 layers mechanical stage with clutching handle, size 14”x12” (356mmx305mm); moving range 356mmX305mm; Lighting area for transmitted light: 356x284mm.

Wafer holder: could be used to hold 12” wafer

DIC Kit

DIC Kit for reflected illumination (can be used for 10X, 20X, 50X, 100X objectives)

Polarizing Kit

Polarizer for reflected illumination

Analyzer for reflected illumination, 0-360° rotatable

Polarizer for transmitted illumination

Analyzer for transmitted illumination

Other Accessories

0.5X C-mount Adapter

1X C-mount Adapter

Dust Cover

Power Cord

Calibration slide 0.01mm

Specimen Presser

Note: ● Standard Outfit, ○ Optional
