BS-6004 Trinocular Inverted Metallurgical Microscope
BS-6004 Trinocular Inverted Metallurgical Microscope
BS-6004 Trinocular Inverted Metallurgical Microscope
BS-6004 Trinocular Inverted Metallurgical Microscope
BS-6004 Trinocular Inverted Metallurgical Microscope
BS-6004 Trinocular Inverted Metallurgical Microscope
BS-6004 Trinocular Inverted Metallurgical Microscope
BS-6004 Trinocular Inverted Metallurgical Microscope

BS-6004 Trinocular Inverted Metallurgical Microscope

Introduction

BS-6004 inverted metallurgical microscope adopts professional metallurgical objective and plan eyepiece to provide superior image, high resolution and comfortable observation. It is widely used in teaching and research of metallographic analysis, semiconductor silicon wafer inspection, geology mineral analysis, precision engineering and similar fields.

Details

Model:BS-6004
Magnification:50×-500×
Eyepiece:PL10×
Objective:5×,10×,20×,50×
Nosepiece:Quadruple
Illumination:Koehler
Viewing Head:Trinocular
Focusing:Coaxial Coarse
Share

Overview

Packaging & Delivery

Packaging Details:Strong Carton with Polyfoam Protection

Port:Beijing

Lead Time:Within 1-2 Weeks after Receiving Payment

Introduction

BS-6004 inverted metallurgical microscope adopts professional metallurgical objective and plan eyepiece to provide superior image, high resolution and comfortable observation. It is widely used in teaching and research of metallographic analysis, semiconductor silicon wafer inspection, geology mineral analysis, precision engineering and similar fields.

Features

  1. Low position high precision coaxial focusing system, left and right side can be adjusted. Easy to get a clear and comfortable image. Coarse stroke 38mm, fine focus accuracy 0.002mm.
  2. Large size mechanical stage provides a more efficient working environment for the user, right hand operate. Size 180 × 155mm, moving range: 75 × 40mm.

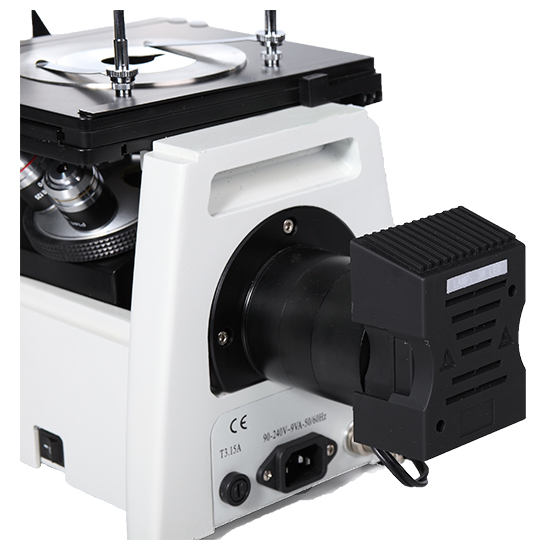

  3. Reflected Koehler illumination system with iris diaphragm and centerable field diaphragm, wide range voltage 90-240V, 6V/30W high brightness halogen bulb and long working life LED bulb(optional).

Specification

Item

Specification

BS-6004

Optical System

Finite optical system

Viewing Head

Trinocular viewing head, 45° inclined, Diopter adjustment ±5 for each side, Interpupillary distance: 54-75mm, light distribution: binocular: trinocular =80%:20%

Eyepiece

High eyepoint wide field plan eyepiece PL10×/18mm

High eyepoint wide field eyepiece WF15X/13mm

High eyepoint wide field eyepiece WF20×/10mm

Metallurgical Objective

LWD plan achromatic metallurgical objective 5×/0.13, WD=15.5mm

LWD plan achromatic metallurgical objective 10×/0.25, WD=8.7mm

LWD plan achromatic metallurgical objective 20×/0.40, WD=8.8mm

LWD plan achromatic metallurgical objective 50×/0.60, WD=5.1mm

LWD plan achromatic metallurgical objective 100×/0.8, WD=2.0mm

Nosepiece

Backward quadruple nosepiece

Backward quintuple nosepiece

Focusing

Low position coaxial coarse and fine adjustment. With tightness adjustment. Coarse stroke per rotation 38mm; fine focus accuracy: 2um.

Stage

Three-layers mechanical stage, size 180mm×155mm, right hand low position control, Moving range:75mm× 40mm; Metal stage plate, center hole dia.ϕ12mm

Illumination

Reflected Koehler illumination with iris diaphragm and centerable field diaphragm, wide-range voltage 90-240V, 5W LED bulb, with continuous intensity adjustment.

Reflected Koehler illumination with iris diaphragm and centerable field diaphragm, wide-range voltage 90-240V, 6V/30W halogen bulb, with continuous intensity adjustment.

Polarizing kit

Polarizer and the analyzer can be removed from the optical path, the analyzer can be rotated 360°.

Video Adapter

1× C-mount adapter, focus adjustable

0.5× C-mount adapter, focus adjustable

Filter

Blue filter (ϕ 32mm)

Note: ● Standard Outfit, ○ Optional
