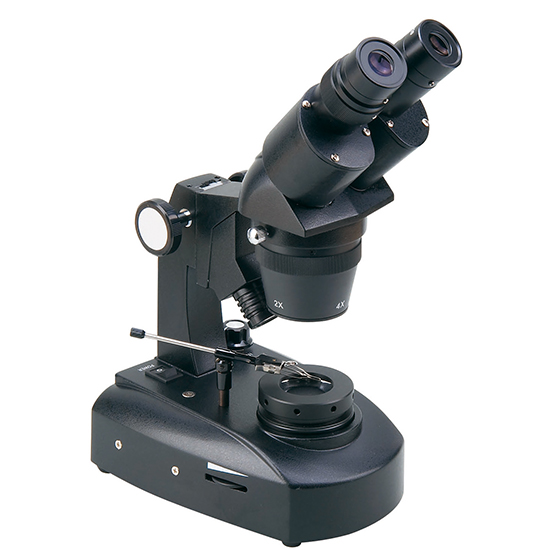

BS-8020B Binocular Gemological Microscope
BS-8020B Binocular Gemological Microscope

BS-8020B Binocular Gemological Microscope

Introduction

A gemological microscope is the microscope used by jewelers and gem stone experts. Equipped with good illumination, gem clamp and dark field attachment, BS-8020B&BS-8030B/T gemological microscopes can meet most of the works for gem experts. The most obvious advantage of them is cost effective and affordable. They are especially designed to view precious stone samples and the pieces of jewelry that are contained in them.

Details

Model:BS-8020B
Magnification:20×-40×
Eyepiece:WF10×
Objective:2×, 4×
Illumination:Halogen Lamp
Viewing Head:Binocular
Share

Overview

Packaging & Delivery

Packaging Details:Strong Carton with Polyfoam Protection

Port:Beijing

Lead Time:Within 1-2 Weeks after Receiving Payment

Introduction

A gemological microscope is the microscope used by jewelers and gem stone experts. Equipped with good illumination, gem clamp and dark field attachment, BS-8020B&BS-8030B/T gemological microscopes can meet most of the works for gem experts. The most obvious advantage of them is cost effective and affordable. They are especially designed to view precious stone samples and the pieces of jewelry that are contained in them.

Features

  1. Good quality illumination, come with gem clamp and dark field attachment.
  2. Cost effective and affordable gemological microscopes.

Application

BS-8020 and BS-8030 series gemological microscopes are usually used to identify the authenticity of gemstones. They also can be used in the design, creation, production and repair of jewelry. The gemological microscopes are precision microscopes that are capable of inspecting diamonds, emeralds, rubies and all other types of precious stones.

Specification

Item

Specification

BS-8020B

BS-8030B

BS-8030T

Viewing Head

Inclined Binocular head, 360° Rotatable, Interpupilary distance 55-75mm



Inclined Trinocular head, 360° Rotatable, Interpupilary distance 55-75mm





Eyepiece

WF10×/20mm

WF10×/22mm



WF15×/15mm

WF20×/10mm

Objective

1×-4×



0.7×~3.6×



2×, 4×





1×, 2×





1×, 3×





Auxiliary Objective

0.5×

0.75×

1.5×

Incident Illumination

Halogen lamp 12V/10W

Fluorescent 10W

Transmitted Illumination

Halogen lamp 12V/10W

LED illumination

Accessories

High quality Jewel clamp

Darkfield working stage (with Iris diagram)

Note: ● Standard Outfit, ○ Optional



Optical Parameters

Model

Objective

Working Distance(mm)

Field of View(mm)

BS-8030B & BS-8030T

1×-4×

90.5

22-5.5

0.7×~3.6×

86

26-5.8

BS-8020B

75

20

91

91

69

10

70

5
