BUC5H-2000C USB3.0 Digital Microscope Camera (IMX183CQJ-J Sensor, 20.0MP)
BUC5H-2000C USB3.0 Digital Microscope Camera (IMX183CQJ-J Sensor, 20.0MP)
BUC5H-2000C USB3.0 Digital Microscope Camera (IMX183CQJ-J Sensor, 20.0MP)
BUC5H-2000C USB3.0 Digital Microscope Camera (IMX183CQJ-J Sensor, 20.0MP)
BUC5H-2000C USB3.0 Digital Microscope Camera (IMX183CQJ-J Sensor, 20.0MP)
BUC5H-2000C USB3.0 Digital Microscope Camera (IMX183CQJ-J Sensor, 20.0MP)
BUC5H-2000C USB3.0 Digital Microscope Camera (IMX183CQJ-J Sensor, 20.0MP)
BUC5H-2000C USB3.0 Digital Microscope Camera (IMX183CQJ-J Sensor, 20.0MP)
BUC5H-2000C USB3.0 Digital Microscope Camera (IMX183CQJ-J Sensor, 20.0MP)
BUC5H-2000C USB3.0 Digital Microscope Camera (IMX183CQJ-J Sensor, 20.0MP)
BUC5H-2000C USB3.0 Digital Microscope Camera (IMX183CQJ-J Sensor, 20.0MP)
BUC5H-2000C USB3.0 Digital Microscope Camera (IMX183CQJ-J Sensor, 20.0MP)
BUC5H-2000C USB3.0 Digital Microscope Camera (IMX183CQJ-J Sensor, 20.0MP)
BUC5H-2000C USB3.0 Digital Microscope Camera (IMX183CQJ-J Sensor, 20.0MP)
BUC5H-2000C USB3.0 Digital Microscope Camera (IMX183CQJ-J Sensor, 20.0MP)
BUC5H-2000C USB3.0 Digital Microscope Camera (IMX183CQJ-J Sensor, 20.0MP)
BUC5H-2000C USB3.0 Digital Microscope Camera (IMX183CQJ-J Sensor, 20.0MP)
BUC5H-2000C USB3.0 Digital Microscope Camera (IMX183CQJ-J Sensor, 20.0MP)

BUC5H-2000C USB3.0 Digital Microscope Camera (IMX183CQJ-J Sensor, 20.0MP)

Introduction

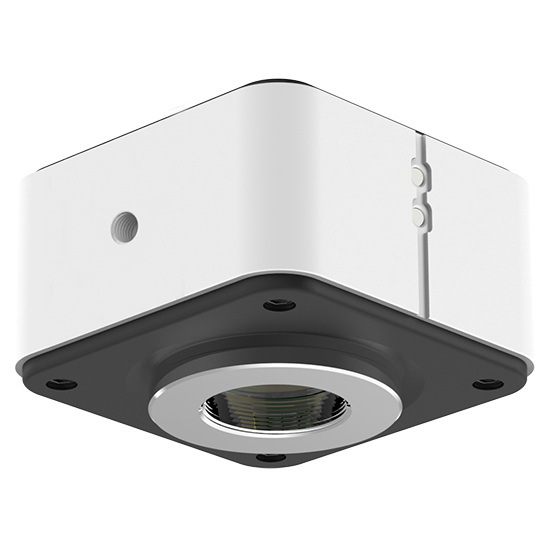

BUC5H-2000C(With IMX183CQJ-J Sensor) USB3.0 digital cameras use sensor, the software has real-time image stitching & depth-of-field fusion function, BUC5H-500C has global shutter, BUC5H-2000C has 1-inch sensor. The BUC5H series cameras can be widely used with bright field, dark field, polarizing, fluorescent microscopes and normal microscope image capture and analysis with high frame rate.

Details

Model:BUC5H-2000C
Sensor Type:CMOS 1" Color
Pixel Size:2.4x2.4(μm)
Resolution:20MP
Frame Rate:15fps(5472x3648)
Color Temperature:2000-15000K
Data Interface:USB3.0
Picture Format:JPG/PNG/TIFF
Share

Overview

Packaging & Delivery

Packaging Details:Strong Carton with Polyfoam Protection

Port:Beijing

Lead Time:Within 1-2 Weeks after Receiving Payment

Introduction

BUC5H-2000C(With IMX183CQJ-J Sensor) USB3.0 digital cameras, the software has real-time image stitching & depth-of-field fusion function, BUC5H-500C has global shutter, BUC5H-2000C has 1-inch sensor. The BUC5H series cameras can be widely used with bright field, dark field, polarizing, fluorescent microscopes and normal microscope image capture and analysis with high frame rate.

Specification

Model

BUC5H-500C

BUC5H-600C

BUC5H-1600C

BUC5H-2000C

Shutter Mode

Global

Rolling

Rolling

Rolling

Sensor Model

IMX264LQR-C

IMX178LQJ-C

IMX206CQC

IMX183CQJ-J

Sensor Type

CMOS 2/3″ Color

CMOS 1/1.8″ Color

CMOS 1/2.3″ Color

CMOS 1″ Color

Pixel Size

3.45×3.45(μm)

2.4×2.4(μm)

1.34×1.34(μm)

2.4×2.4(μm)

Resolution

2448(H)x2048(V)

3072(H)x2048(V)

4608(H)x3456(V)

5472(H)x3648(V)

Frame Rate

35fps(2448×2048)

88fps(1224×1024)

41fps(3072×2048)

12fps(4608×3456)

15fps(4608×2736)

19fps(3648×2736)

15fps(5472×3648)

53fps(2736×1824)

67fps(1824×1216)

Color Temperature

2000-15000K

Picture Format

JPG/PNG/TIFF

Interface

Data Interface: USB3.0, Optical Interface: Standard C-Mount

Multiple Cameras

Supports 4 Cameras Simultaneously in SDK

PC Software

Capture V2.0

Operating System

Windows is supported and Linux/Mac is under development

PC Configuration

CPU: Intel Core i5 or better(Quad or more Core); RAM: 8G or more, OS: Windows 7/8/10 64bit

Size & Weight

Size: 68x68x47mm Weight: 327g
