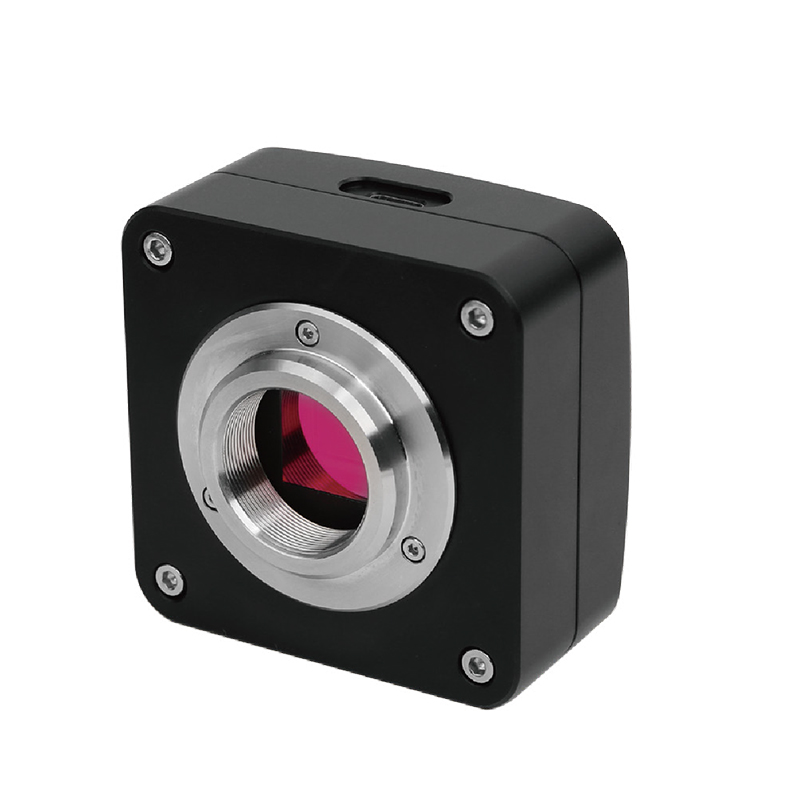

BUC5K-830C USB3.2 Gen2 Digital Microscope Camera
Introduction
The BUC5K series cameras are equipped with advanced USB3.2 Gen2 technology, delivering a 10 Gbps high-bandwidth interface that breaks through traditional transmission bottlenecks. They are designed for microscopy, industrial inspection, and scientific research applications. The BUC5K series adopts a USB Type-C connector with reversible plug orientation, ensuring both convenience and stability while supporting diverse device connectivity requirements.
Details
Overview
Packaging & Delivery
Packaging Details:Strong Carton with Polyfoam Protection
Port:Beijing
Lead Time:Within 1-2 Weeks after Receiving Payment
Introduction
Introduction
The BUC5K series cameras are equipped with advanced USB3.2 Gen2 technology, delivering a 10 Gbps high-bandwidth interface that breaks through traditional transmission bottlenecks. They are designed for microscopy, industrial inspection, and scientific research applications. The BUC5K series adopts a USB Type-C connector with reversible plug orientation, ensuring both convenience and stability while supporting diverse device connectivity requirements.
Features
The basic characteristic of BUC5K series USB3.2 Gen2 camera can be summarized as follows:
1. It is equipped with advanced USB3.2 Gen2 technology, delivering a 10 Gbps high-bandwidth interface that breaks through traditional transmission bottlenecks. The data transfer speed is 2–3 times faster than conventional USB3.0 cameras.

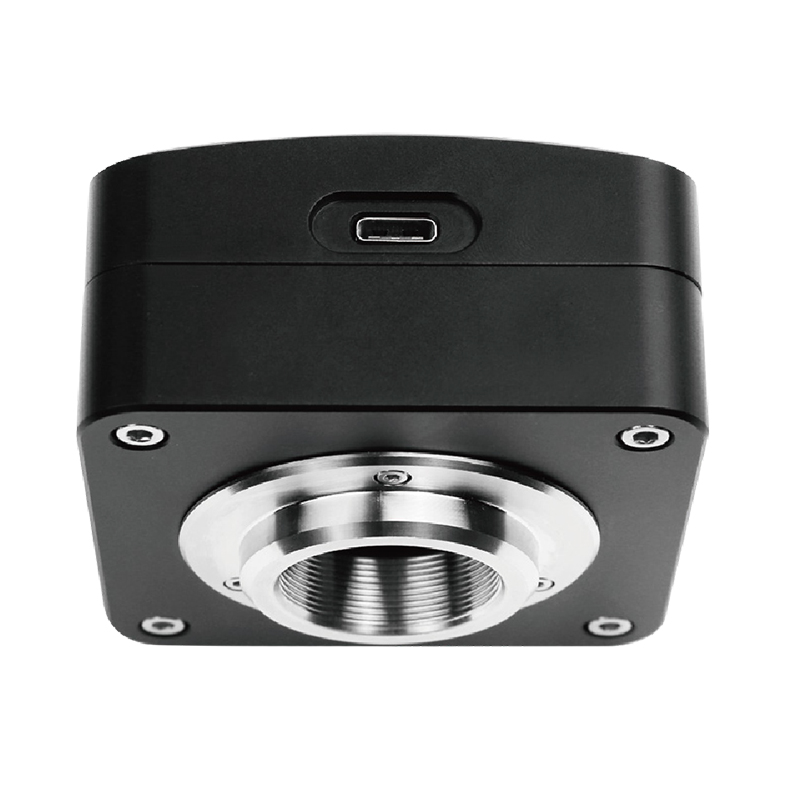

2. It adopts a USB Type-C connector with reversible plug orientation. It ensures both convenience and stability while supporting diverse device connectivity requirements.
Specification
|
Order Code |
Sensor & Size(mm) |
Pixel Size (μm) |
ADC |
FPS & Resolution |
|
BUC5K-2100C |
21MP IMX472 (C, RS) |
3.3×3.3 |
12bit |
8bit: 49fps@5280*3956 12bit: 25fps@5280*3956 8bit: 115fps@2640*1978 12bit: 55fps@2640*1978 8bit: 240fps@1760*1318 12bit: 117fps@1760*1318 |
|
BUC5K-2000C |
20MP IMX383 (C, RS) |
3.3×3.3 |
12bit |
8bit: 49fps@5472*3648 12bit: 24fps@5472*3648 8bit: 49fps@2736*1824 12bit: 24fps@2736*1824 8bit: 120fps@1824*1216 12bit: 120fps@1824*1216 |
|
BUC5K-830C |
8.3MP IMX585 (C, RS) |
2.9×2.9 |
10bit/12bit |
8bit: 88fps@3840*2160 12bit: 60fps@3840*2160 8bit: 60fps@1920*1080 12bit: 60fps@1920*1080 |
|
Order Code |
Conversion Gain |
Readout Noise |
Full Well |
Dynamic Range |
SNR |
|
BUC5K-2100C |
6.017e-/ADU |
4.58e- |
24.600ke- |
72dB |
43.9dB |
|
BUC5K-2000C |
4.410e-/ADU |
3.48e- |
18.042ke- |
72dB |
42.6dB |
|
BUC5K-830C |
0.994e-/ADU (HCG) 9.582e-/ADU (LCG) |
1.07e- (HCG) 6.69e- (LCG) |
4.061ke- (HCG) 39.162ke- (LCG) |
71.6dB (HCG) 72.0dB (LCG) |
36.1dB (HCG) 45.9dB (LCG) |
Dimension
