The LCD microscope, also referred to as a video microscope, is equipped with an integrated screen or can be connected to an external monitor via HDMI. This allows for high-resolution observation of specimens directly on the display. The microscope also enables image capture and detailed analysis through specialized software. It is extensively utilized in medical diagnostics, laboratory research, industrial inspection, and educational settings.
LCD digital inspection microscope is widely used in mobile phone repair, computer repair, clock repair, antique identification, semiconductor inspection, electronic product inspection, botany and insect research and other fields.

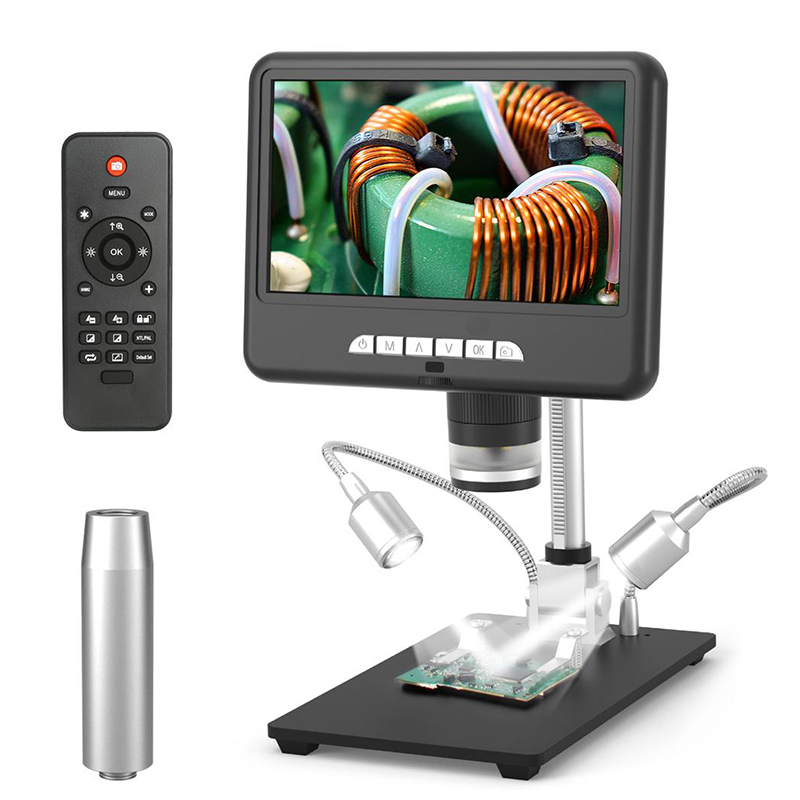

BLM1-207S uses a 7-inch screen and a built-in 4 mega pixel HD imaging sensor, which can shoot high-definition videos and images, and the images can be saved to a Micro SD card. It also has HDMI and USB output, which can be connected to an LCD monitor or computer respectively.
BLM1-310A is a newly developed LCD digital microscope. It has a 10.1 inch LCD screen and 4.0MP built-in digital camera. The angle of the LCD screen can be adjusted 180°, it is easy to find a comfortable position for users.
BLM1-370B has a 10 inch high definition touch screen and 4M built-in camera. The zoom range is 0.7X-5X and 7:1 continuous magnification. The large stroke focusing mechanism provides a wider workspace with a 225mm focusing range and a maximum working distance of 170mm.
BLM1-380D with 12-inch high-definition LCD display and built-in 2M, frame rate 60fps camera, is easy to observe and operate, also available for digital magnification and data storage. It is applied to the industrial market, with better product reliability.

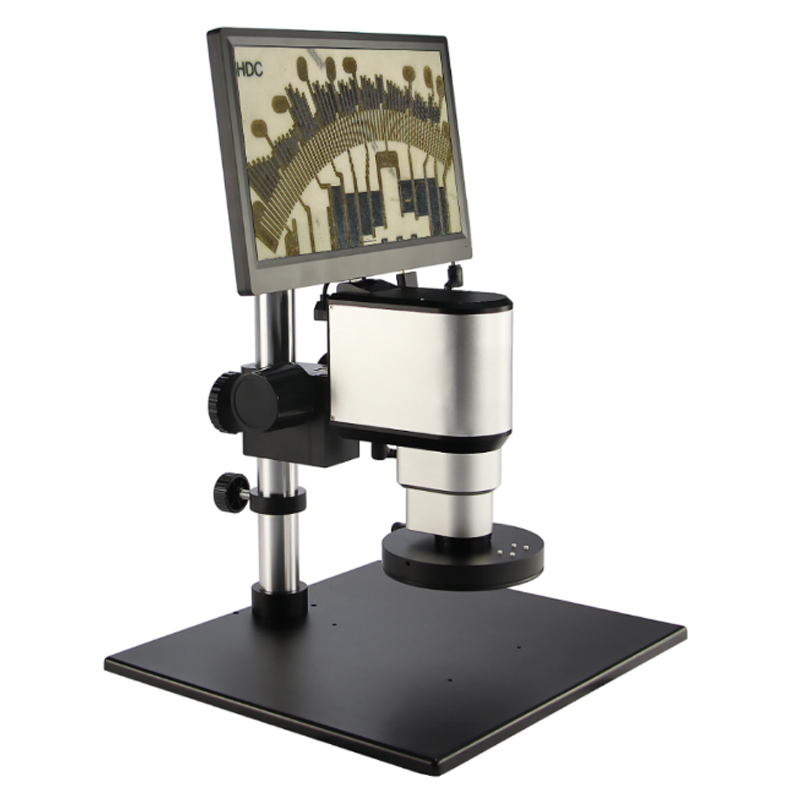

BLM1-480C offers high-precision 4K imaging (3840×2160, 60fps) with an apochromatic optical system. It supports both HDMI and PC output at the same time.With a 0.3–3.0X zoom range and 1:10 zoom ratio, it supports motorized and manual zoom, making magnification smooth and accurate.
Zoom Magnification: 10X-45X, Zoom Ratio: 1:4.5; Working Distance: 97mm; Screen Size: 10.1 inch; Screen Resolution: 1920*1200; Resolution:1920*1080 2MP
Zoom Magnification: 7X-45X, Zoom Ratio: 1:6.3; Working Distance: 76mm; Screen Size: 10.1 inch; Screen Resolution: 1920*1200; Resolution: 1920*1080 2MP
Zoom Magnification: 8X-50X, Zoom Ratio: 1:6.3; Working Distance: 115mm; Screen Size: 13.3-inch; Screen Resolution: 1920*1080; Resolution: 3840*2160 8MP
Zoom Magnification: 6.7X-45X, Zoom Ratio: 1:6.7; Working Distance: 100mm; Screen Size: 13.3-inch; Screen Resolution: 1920*1080; Resolution: 3840*2160 8MP
Zoom Magnification: 8X-50X, Zoom Ratio: 1:6.3; Working Distance: 115mm; Screen Size: 13.3-inch; Screen Resolution: 1920*1080; Resolution: 3840*2160 8MP
Zoom Magnification: 6.7X-45X, Zoom Ratio: 1:6.7; Working Distance: 110mm; Screen Size: 13.3-inch; Screen Resolution: 1920*1080; Resolution: 3840*2160 8MP
Zoom Magnification: 6.5X-52X, Zoom Ratio: 1:8; Working Distance: 118mm; Screen Size: 13.3-inch; Screen Resolution: 1920*1080; Resolution: 3840*2160 8MP
LCD Digital biological microscope is an ideal instrument for use in fields such as biology, histology, pathology, bacteriology, immunology, and pharmacology. It can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities.
BLM2-241 has a built-in 6.0MP high sensitive camera and 11.6” 1080P full HD retina LCD screen. It has integrated magnification, digital enlarge, imaging display, photo and video capture&storage on the SD card, it also can be connected to PC via USB2.0 cable and control by software.
BLM2-274 has a 6.0MP high sensitive camera and 11.6” 1080P full HD retina LCD screen. It is a research level microscope which has been specially designed for college education, medical and laboratory research.

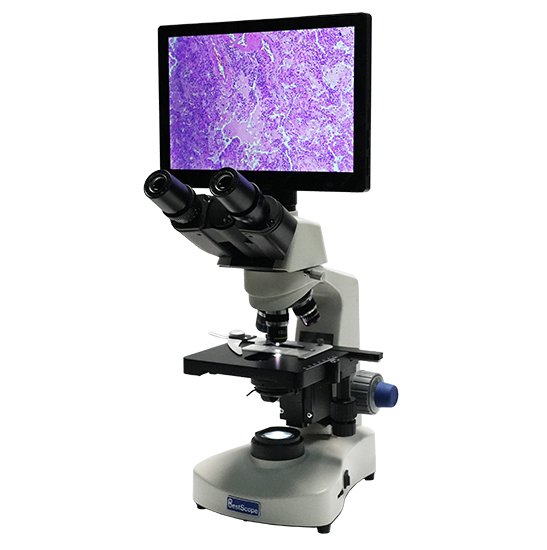

BLM4-220 is equipped with a 1080P all-in-one digital camera integrated with a 10.1” LCD touch screen. It runs on the Android 12 operating system and includes measurement functions. This cost-effective digital biological microscope is specially designed for educational, academic, agricultural, and laboratory applications.

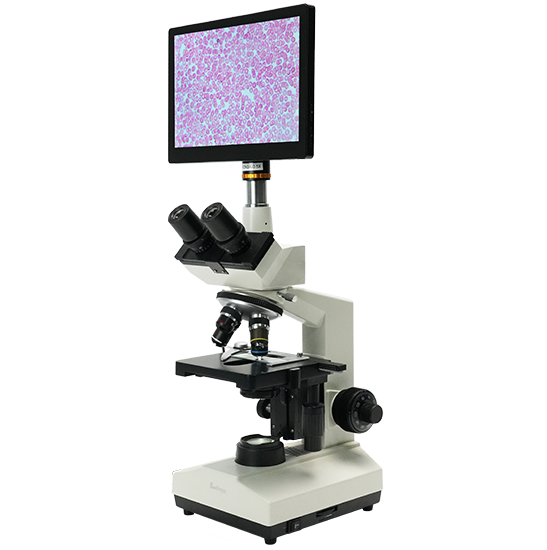

BLM4-230 is a classic digital biological microscope, built with precision machining and advanced alignment technology. It is equipped with a 1080P all-in-one digital camera integrated with a 10.1” LCD touch screen, supporting HDMI output at 1920×1080@60fps and dual USB ports for USB disk and mouse.

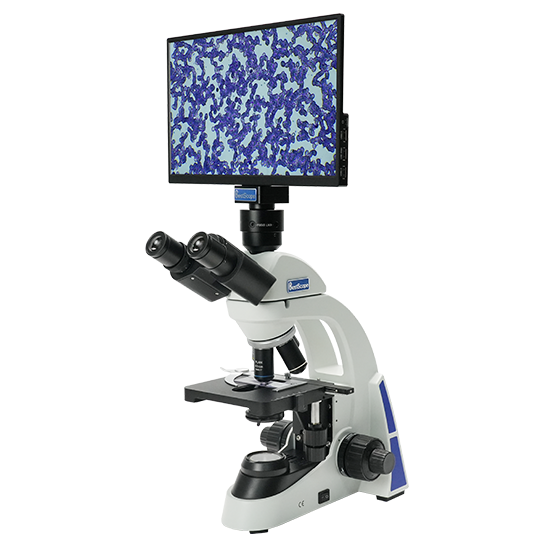

BLM5-227 is equipped with a 13.3-inch, 8MP multifunctional all-in-one camera that supports image capture, 4K video recording, and measurement. With easy operation and clear imaging, it is specially designed for students to explore the mysteries of life science.

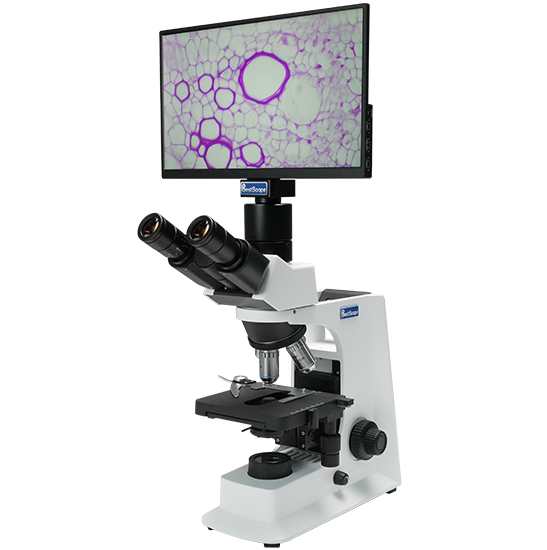

BLM5-236 features a high-quality optical system, elegant structure, and ergonomic design. It is specially designed for college education, medical use, and laboratory research. The all-in-one camera captures 8MP images and 4K videos, supports HDMI 2.0, USB 2.0, and WiFi output, and includes measurement functions.

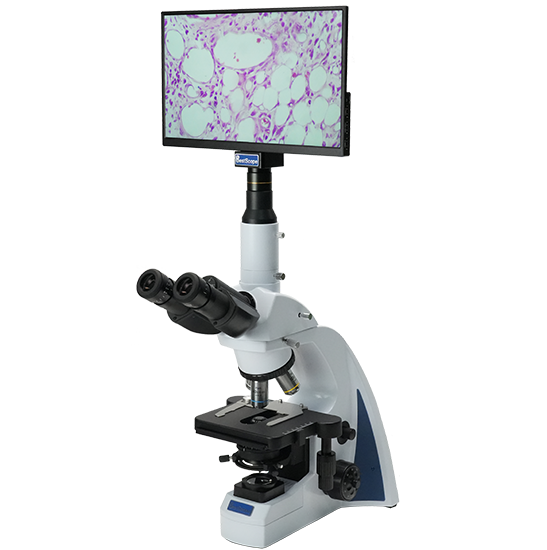

BLM5-241 features an infinite optical system, WF10×/22mm eyepieces with diopter adjustment, and a sliding-in centerable condenser. The frame is equipped with an easy-to-carry handle, making it practical for daily lab use. It can capture 8MP images, record 4K videos, and supports measurement functions.

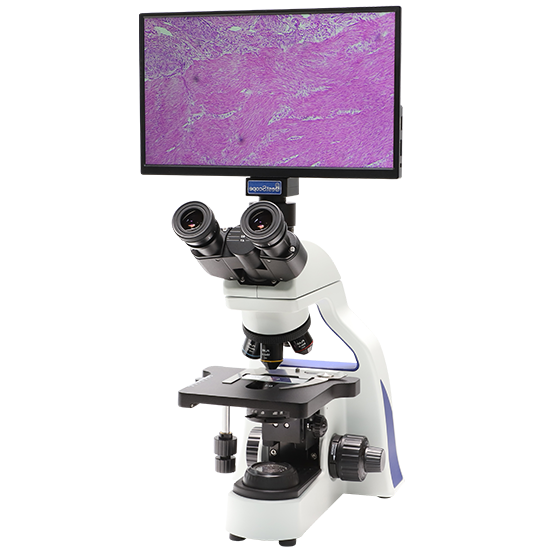

BLM5-243 features an infinite color-corrected optical system and a compound eye illumination system, which provides uniform and comfortable lighting for long-term observation. It is equipped with a 13.3-inch multifunctional all-in-one camera with 1920×1080 resolution, supporting HDMI 2.0, USB 2.0, and WiFi output.

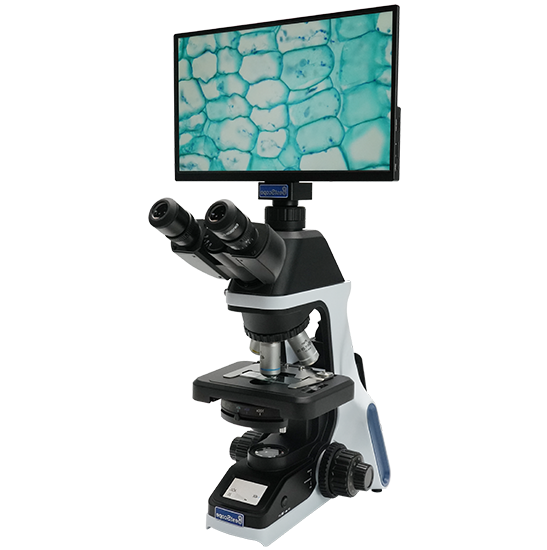

BLM5-246 has good optical quality, wide field of view, excellent objective performance, clear and reliable imaging. Ergonomic design provides better comfort and use experience, pays attention to your operating habits, starts from the details, and constantly optimizes. It captures 8MP images, records 4K videos, and supports measurement functions.

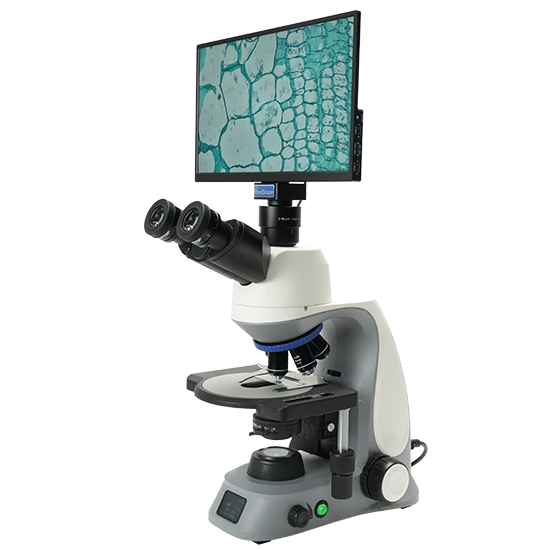

BLM5-248 offers a wide 22mm field of view under the 10X eyepiece, enabling broader and clearer observation. The system includes an ECO energy-saving mode, extending illumination life and reducing power consumption.Equipped with a 13.3-inch multifunctional all-in-one camera, it captures 8MP images and 4K videos.

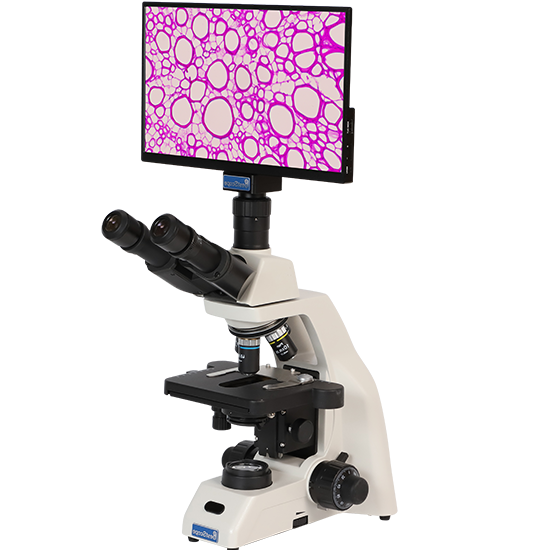

BLM5-252 features a high-quality optical system, delivering high-contrast and sharp images for clear observation. Its anti-mold design ensures reliable performance even in humid environments. Equipped with the BLC-480B multifunctional all-in-one HDMI camera that makes your work easier.

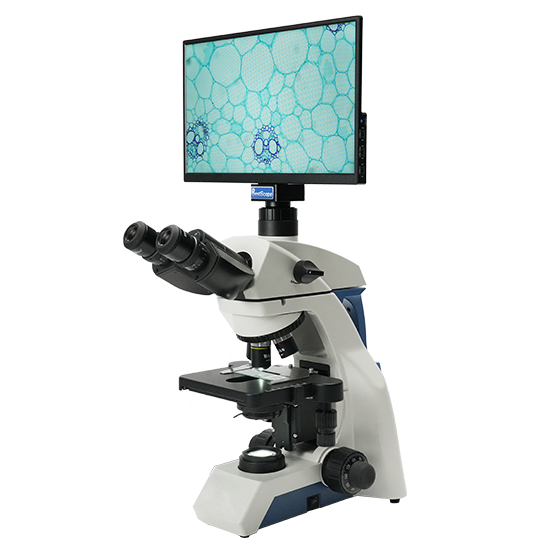

BLM5-253 provides excellent image quality with a 20mm wide field of view under the 10X eyepiece, allowing for broader and more efficient sample observation. The adjustable color temperature function ensures accurate and comfortable viewing under various lighting conditions. The multifunctional all-in-one camera BLC-480 with Sony IMX678(C) sensor captures high-quality 8MP images, supports 4K video recording.

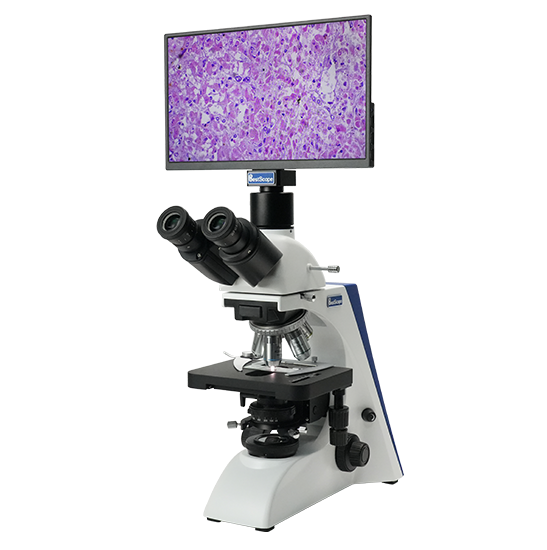

BLM5-263 is a high level microscope which is specially designed for college education, medical and laboratory study. It adopts an infinite optical system, beautiful structure and ergonomic design. The all-in-one camera BLC-480 integrated measurement functions to make your work easier and more efficient.

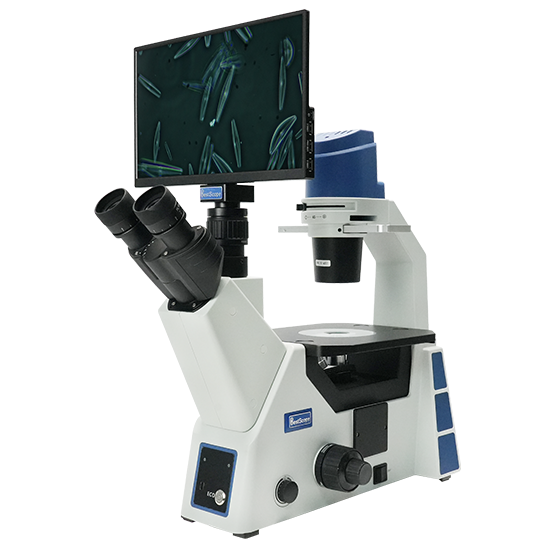

BLM5-291 is equipped with long working distance infinite plan and phase contrast achromatic objectives, making it ideal for observing cultured living cells and tissues. With a 13.3-inch display LCD camera and integrated measurement software, it allows direct image viewing, capturing, and analysis without the need for a computer.
ISO9001, ISO13485, ISO14001 Management System Certificate.
Most of the products are CE certified.
Big quantity orders can be delivered in a short time.
All the products are provided with 3 years warranty.
Screen Size: 13.3 inch LCD screen
Camera Resolution: 8MP Images, 4K Videos
Eyepiece: Wide field plan eyepiece PL10X/22mm
Objective:
Long Working Distance Infinity Plan Achromatic Objective 4X
Long Working Distance Infinity Plan Achromatic Phase Contrast Objective 10X, 20X, 40X
Condenser: Long working distance condenser, N.A. 0.3
Screen Size: 13.3 inch LCD screen
Camera Resolution: 8MP Images, 4K Videos
Eyepiece: High eye point wide field plan eyepiece PL10X/20mm
Objective: Infinity Plan Achromatic Objectives 4X, 10X, 40X, 100X
Stage: Super large ceramic rackless stage
Screen Size: 13.3 inch LCD screen
Camera Resolution: 8MP Images, 4K Videos
Eyepiece: WF10×/20mm
Objective: Infinite Semi-Plan Achromatic Objectives 4X, 10X, 40X, 100X
Stage: Super large ceramic rackless stage
LCD display: magnification, brightness, color temperature adjustment
