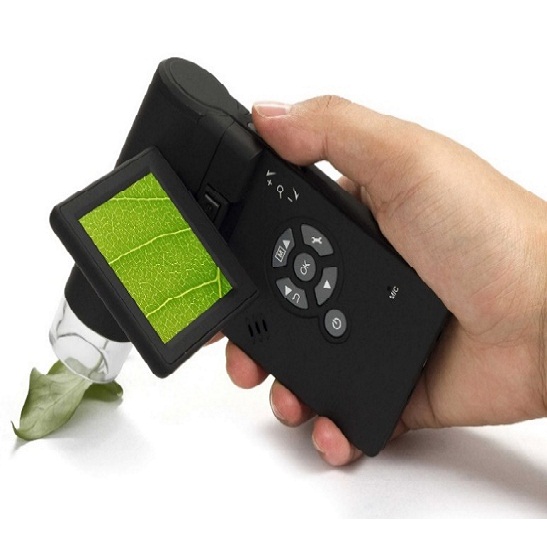

BPM-350P Portable Digital Microscope
BPM-350P Portable Digital Microscope
BPM-350P Portable Digital Microscope
BPM-350P Portable Digital Microscope
BPM-350P Portable Digital Microscope
BPM-350P Portable Digital Microscope

BPM-350P Portable Digital Microscope

Introduction

BPM-350P portable digital microscope provides powers from 20× and 300× with 5.0MP Image sensor, the LCD screen is 3inch. It can take images and videos and save in the micro SD card. It also can be connected to PC and take image, take video and do measurement with software. It is ideally suited for Medical, Industrial Inspection, Engineering, educational and Science Applications to examine coins, stamps, rocks, relics, insects, plants, skin, gems, circuit boards, various materials and many other objects.

Details

Model:BPM-350P
Magnification:20× to 300×
LCD Screen:3 Inches
Light Source:8 LED
Weight:400g
Image Sensor:5.0MP CMOS Sensor
Share

Overview

Quick Details

Model:BPM-350P

Magnification:20× to 300×

LCD Screen:3 Inches

Light Source:8 LED

Weight:400g

Image Sensor:5.0MP CMOS Sensor

Packaging & Delivery

Packaging Details:Strong Carton with Polyfoam Protection

Port:Beijing

Lead Time:Within 1-2 Weeks after Receiving Payment

Introduction

BPM-350P portable digital microscope provides powers from 20× and 300× with 5.0MP Image sensor, the LCD screen is 3inch. It can take images and videos and save in the micro SD card. It also can be connected to PC and take image, take video and do measurement with software. It is ideally suited for Medical, Industrial Inspection, Engineering, educational and Science Applications to examine coins, stamps, rocks, relics, insects, plants, skin, gems, circuit boards, various materials and many other objects.

Features

1. Can work independently, portable and easy to operate.

2. 20×and 300×Magnification.

3. 3 inches LCD screen, resolution 320×240.

4. Images and videos can be saved in micro SD card, up to 32G.

5. 5.0 Mega Pixels CMOS sensor.

6. Manual Focus from 10mm to 50mm.

7. LED illumination with8pcs LED lamps, brightness adjustable.

8. Compatible with Windows XP/Vista/Win7/8/10, 32bit&64 bit and Mac operation system.

Application

BPM-350P portable digital microscope can be used for: Hobbyists, Educators, Medical Labs, Industrial Inspection, Engineering Applications, Teachers, Students, Science Applications, Doctor’s Offices, Police Agencies, Government Testing, and general use by consumers. It is ideally suited for examining solid objects such as coins, stamps, rocks, relics, insects, plants, skin, gems, circuit boards, various materials, and many other objects.

Specification

Item

Specification

Image Sensor

5.0 Mega Pixels CMOS sensor (interpolated to 12.0MP)

LCD Screen

3 inches LCD screen, resolution 320×240

Capture Resolution

12M, 9M, 5M, 3M, 1.3M, VGA

Focus Range

Manual Focus From 10mm to 50mm

Frame Rate

Max 30f/s under 600 Lus Brightness

Magnification Ratio

20× to 300×(Digital Magnification can be 1200× )

TV output

Available to any monitor with TV in

Card Slot

Support MicroSD Card(not included) slot up to 32GB

Light Source

8 LED (adjustable by control wheel)

Battery

Rechargeable lithium battery (recharged by power adapter or USB)

Measurement

By software when connected to PC

OSD Language

English, German, Spanish, French, Russian

Bundled Software

PortableCapture Pro with measurement & calibration function

Microscope Size

130mm*112mm*28

Weight

400g

Package Content

Microscope, Power Adapter, USB cable, TV cable, CD with Software, User’s manual

Packing Info

Gift box, 6pcs/carton, 9.0kgs/carton, 43.5×41.5x35cm

Image Sensor

5.0 Mega Pixels CMOS sensor (interpolated to 12.0MP)
