BS-5062B Binocular Polarizing Microscope
BS-5062B Binocular Polarizing Microscope
BS-5062B Binocular Polarizing Microscope
BS-5062B Binocular Polarizing Microscope
BS-5062B Binocular Polarizing Microscope
BS-5062B Binocular Polarizing Microscope
BS-5062B Binocular Polarizing Microscope
BS-5062B Binocular Polarizing Microscope
BS-5062B Binocular Polarizing Microscope
BS-5062B Binocular Polarizing Microscope
BS-5062B Binocular Polarizing Microscope
BS-5062B Binocular Polarizing Microscope

BS-5062B Binocular Polarizing Microscope

Introduction

BS-5062 series polarizing microscopes feature a highly robust construction and first class optics to provide a long life and excellent quality images. Accessories like Gypsum slide, Mica slide, Quartz wedge and Mechanical stage are available. The microscopes are specifically designed for geology, minerals and material areas. They also can be used in chemical fiber, semiconductor and pharmaceutical industries.

Details

Model:BS-5062B
Magnification:40×-400×
Eyepiece:WF10×
Objective:4×,10×,20×,40×
Nosepiece:Quintuple
Transmitted Illumination:5W LED Lamp
Viewing Head:Binocular
Focus:Coaxial Coarse
Share

Overview

Packaging & Delivery

Packaging Details:Strong Carton with Polyfoam Protection

Port:Beijing

Lead Time:Within 1-2 Weeks after Receiving Payment

Introduction

BS-5062 series polarizing microscopes feature a highly robust construction and first class optics to provide a long life and excellent quality images. Accessories like Gypsum slide, Mica slide, Quartz wedge and Mechanical stage are available. The microscopes are specifically designed for geology, minerals and material areas. They also can be used in chemical fiber, semiconductor and pharmaceutical industries.

Features

  1. Excellent Infinite Optical System.
  2. Widely used in geology, Mineralogy, Fossil fuel exploration.
  3. Single polarization, othorgonal polarization or conoscopic observation is available.

Application

BS-5062 series polarizing microscopes are ideal instrument in geology, petroleum, coal, mineral, chemicals, semiconductor and pharmaceutical inspection fields. They are widely used in academic demonstration and scientific research areas.

Specification

Item

Specification

BS-5062B

BS-5062BR

BS-5062BTR

Optical System

Infinite Optical System

Viewing Head

Seidentopf Binocular Head, inclined at 30°, 360° Rotatable, Interpupilary Distance: 48-76mm.

Seidentopf Trinocular Head, inclined at 30°, 360° Rotatable, Interpupilary Distance: 48-76mm, Light distribution (both) 100: 0 (100% for eyepiece), 80:20 (80% for trinocular head and 20% for eyepiece)

Eyepiece

WF10×/22mm





WF10×/22 mm (Reticule 0.1mm)





WF10×/20 mm



WF10×/20 mm (Reticule 0.1mm)



Infinite Strain Free Plan Achromatic Objective (Transmitted)

4×/0.10       W.D=12.1mm



10×/0.25      W.D=4.64mm



20×/0.40(S)   W.D=2.41mm



40×/0.66(S)   W.D=0.65mm



60×/0.80 (S)   W.D=0.33mm



100×/1.25 (S, Oil)   W.D=0.12mm



LWD Infinite Strain Free Plan Achromatic Objective (Reflected)

5×/0.13 (S)      W.D=24.23mm



10×/0.25 (S)      W.D=18.48mm



20×/0.40 (S)      W.D=8.35mm



50×/0.70 (S)     W.D=1.95mm



100×/0.90 (S, Dry)     W.D=1.1mm



Nosepiece

Backward Quintuple nosepiece, center adjustable

Analyzer Unit

Rotatable 360°, module type, can be locked

Bertrand Lens

Built In, Center Adjustable

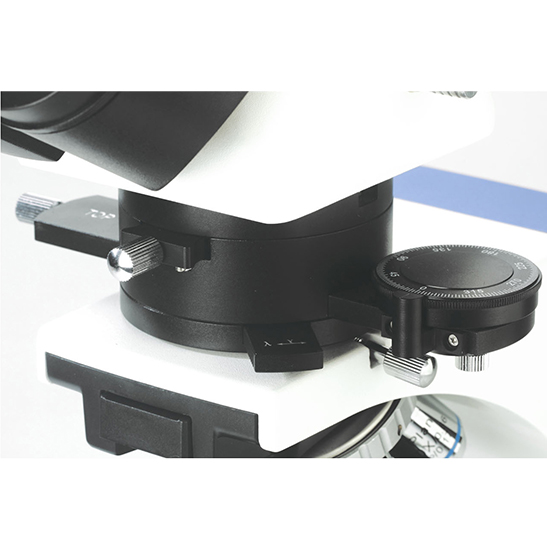

Optical Compensator

λ Slip(First Class Red), 1/4λ Slip, Quartz Wedge (Ⅰ- ⅣClass)

Revolving Round Stage

Diameter Φ156mm, Rotatable 360°, Center Adjustable, Division 1°, Vernier Division 6’

Attachable Mechanical Stage

Polarizing Attached Mechanical Stage with X-Y movement

Focusing

Coaxial Coarse & Fine Adjustment, Range 25mm, Fine Stroke 0.2mm, Fine Division 0.002mm

Swing-out Condenser

N.A.0.9/0.13 swing out condenser



Polarizing Unit

with Scale, Rotatable 360°, Can Be Locked



Transmitted Illumination

5W LED lamp (Input voltage:100V~240V)



Koehler Illumination 6V/30W Halogen Lamp (Input voltage: 100V~240V)



Reflected Illumination

5W LED lamp (Input voltage:100V~240V)



With field diaphragm, aperture diaphragm, polarizer,

12V/50W halogen lamp (Input voltage:100V~240V)



Filter

Blue

Amber

Green

Neutral

C-mount

1× (Focus adjustable)

0.75× (Focus adjustable)

0.5× (Focus adjustable)

Packing

Packing size 565mm×310mm×410mm, Gross Weight 12.5kgs, Net Weight 10kgs





Packing size 750mm×360mm×450mm, Gross Weight 15kgs, Net Weight 11kgs





Packing size 750mm×360mm×450mm, Gross Weight 16kgs, Net Weight 12kgs





Note: ● Standard Outfit, ○ Optional
