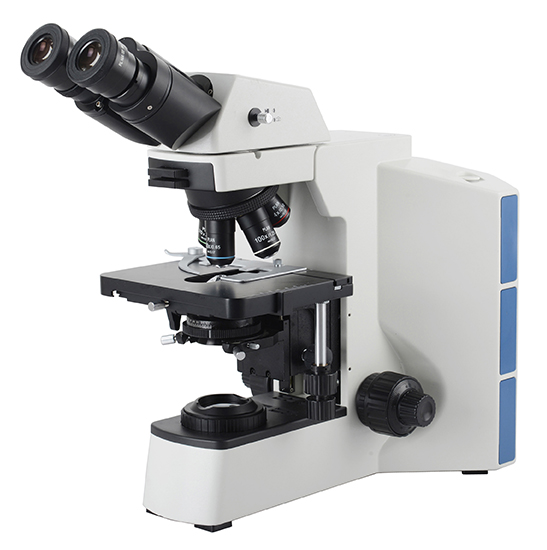

BS-2064B Binocular Biological Microscope
BS-2064B Binocular Biological Microscope
BS-2064B Binocular Biological Microscope
BS-2064B Binocular Biological Microscope
BS-2064B Binocular Biological Microscope
BS-2064B Binocular Biological Microscope
BS-2064B Binocular Biological Microscope
BS-2064B Binocular Biological Microscope
BS-2064B Binocular Biological Microscope
BS-2064B Binocular Biological Microscope
BS-2064B Binocular Biological Microscope
BS-2064B Binocular Biological Microscope
BS-2064B Binocular Biological Microscope
BS-2064B Binocular Biological Microscope
BS-2064B Binocular Biological Microscope
BS-2064B Binocular Biological Microscope

BS-2064B Binocular Biological Microscope

Introduction

BS-2064 series microscopes are high end microscopes which are specially designed for college education, medical and laboratory teaching and research.

Details

ModelBS-2064B
EyepiecePL10x/22mm
Viewing HeadSeidentopf Binocular Viewing Head
ObjectiveInfinite Plan Achromatic Objective
NosepieceBackward Quintuple Nosepiece
StageDouble Layer Mechanical Stage
CondenserN.A.1.2/0.22
Transmitted IlluminationBuilt-in Transmitted Koehler Illumination
Share

Overview

Packaging & Delivery

Packaging Details:Strong Carton with Polyfoam Protection

Port:Beijing

Lead Time:Within 2-3 Weeks after Receiving Payment

Introduction

BS-2064 series microscopes are high end microscopes which are specially designed for college education, medical and laboratory teaching and research. With excellent infinity color corrected optical system, new upgraded Koehler illumination system, presents a clear & bright micro-image under each magnification. Ergonomically designed to provide better comfort and experience. The modular design allows for various viewing modes such as brightfield, darkfield, phase contrast, fluorescence and simple polarizing. This series microscopes are widely apply to clinical diagnosis, teaching experiment, pathological test and other micro-fields.

Features

  1. High rigidity body structure.

Fire-new designed integrative Y-shaped body, all-metal diecasted under high pressure, High image quality with high stability under every magnification observation. Ensures the test precision of multi-channel fluorescence diagnosis.

  1. High precise low position focusing system.

Low position high precise coaxial coarse and fine adjustment, with ergonomics design, create the best comfort to operator.

  1. Screwdriver storage device.

The screwdriver storage device makes full use of the space of the microscope, the screwdriver at users’ fingertips enables users to improve work efficiency.

  1. Mechanical stage.

(1) Standard 175×145mm right-hand double-layer mechanical stage, damping double slice clamp design, can place two slices at the same time for inspection and comparative analysis.

(2) Optional 150mm×162mm ceramic spray mechanical stage, which is not only wear-resistant and anti-corrosive, but also can reduce platform deformation caused by temperature changes.

(3) Optional 187×166mm super large double-layer mechanical stage, two-way linear rail transmission, left and right hand positions are optional.

  1. Safe carrying design.

The rear side of the microscope has been designed with a handle position, which makes it safe and easy when carry the whole microscope.

Application

BS-2064 series microscopes are ideal instrument in biological, histological, pathological, bacteriology, immunizations and pharmacy field and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, clinics, medical colleges and universities.

Specification

Item

Specification

BS-2064B

BS-2064T

Optical System

Infinity color corrected optical system

Eyepiece

High eye-point wide field plan eyepiece PL10x/22mm, reticle can be assembled.

High eye-point wide field plan eyepiece PL15x/16mm

Viewing Head

Seidentopf Binocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary distance 54-75mm, diopter +/- 5 adjustable on left tube, Anti-Fungus, Tube Diameter 30mm



Seidentopf Trinocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary distance 54-75mm, Splitting ratio(trinocular:eyepiece): 0:100 or 50:50, diopter +/- 5 adjustable on left tube, Anti-Fungus, Tube Diameter 30mm



Seidentopf Trinocular Viewing Head, Inclined at 30°, 360° Rotatable, Interpupillary distance 54-75mm, Splitting ratio(trinocular:eyepiece): 0:100 or 100:0, diopter +/- 5 adjustable on left tube, Anti-Fungus, Tube Diameter 30mm

Seidentopf Trinocular Tilting Viewing Head, Inclined at 5°-35°, Interpupillary distance 54-75mm, Splitting ratio(trinocular:eyepiece): 0:100 or 100:0, diopter +/- 5 adjustable on left tube, Anti-Fungus, Tube Diameter 30mm

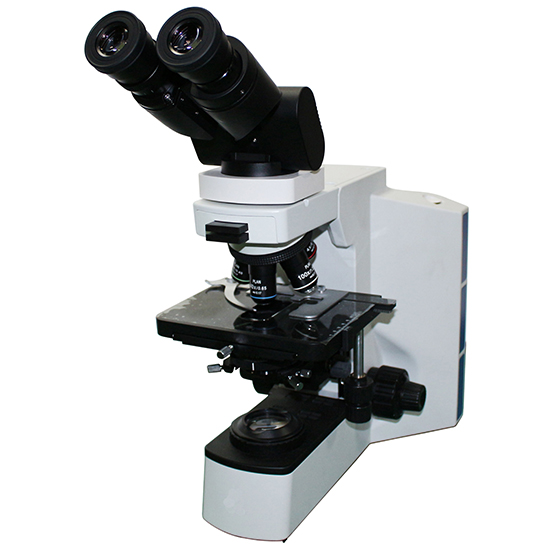

Seidentopf Binocular Tilting Viewing Head, Inclined at 30°-60°, Interpupillary distance 54-75mm, diopter +/- 5 adjustable on left tube, Anti-Fungus, Tube Diameter 30mm

Objective

Infinite Plan Achromatic Objective

Plan2× (N.A.:0.06, W.D.:5.0mm)

Plan 4× (N.A.:0.10, W.D.:11.9mm)

Plan 10× (N.A.:0.25, W.D.:12.1mm)

Plan 20× (N.A.:0.45, W.D.:1.5mm)

Plan 40× (N.A.:0.65, W.D.:0.36mm)

Plan 60× (N.A.:0.85, W.D.:0.3mm)

Plan 100× (N.A.:1.25, W.D.:0.18mm)

Infinite Plan Phase Contrast Achromatic Objective

PH10× (N.A.:0.25, W.D.:12.1mm)

PH20× (N.A.:0.45, W.D.:1.5mm)

PH40× (N.A.:0.65, W.D.:0.36mm)

PH100× (N.A.:1.25, W.D.:0.18mm)

Infinite Plan Semi-APO Fluorescent Objective

Plan Fluor 4× (N.A.:0.13, W.D.:16.43mm)

Plan Fluor 10× (N.A.:0.30, W.D.:8.13mm)

Plan Fluor 20× (N.A.:0.50, W.D.:2.03mm)

Plan Fluor 40× (N.A.:0.75, W.D.:0.73mm)

Plan Fluor 100× (N.A.:1.28, W.D.:0.18mm)

Nosepiece

Backward Quintuple Nosepiece

Stage

175x145mm double layer mechanical stage (X, Y moving hand wheel in right or left hand); moving range: 76x50mm, precision: 0.1mm.

150x162mm rackless double layer mechanical stage, moving range: 76x50mm, precision: 0.1mm; only X-direction wire movement, ceramics coated.

187x166mm rackless double layer mechanical stage (X, Y moving hand wheel in right or left hand), moving range: 80x55mm, precision: 0.1mm; Tension adjustable.

Condenser

N.A.1.2/0.22 swing-out type achromatic condense

N.A.0.9 swing-out type achromatic condenser

N.A.1.25 quintuple phase contrast condenser

N.A.0.9 dry dark field condenser

N.A.1.25 oil dark field condenser.

Focusing

Low position Coaxial coarse and fine adjustment, with upper limited and tension adjustment; moving range: 30mm; fine division: 0.002mm; focus height adjustable

Transmitted Illumination

Wide voltage: 100-240V, built-in transmitted Koehler illumination; 6V/30W halogen, pre-centered, intensity adjustable.

Wide voltage: 100-240V, built-in transmitted Koehler illumination; 3W high brightness LED lamp, pre-centered, intensity adjustable.

LED Fluorescent Attachment

Reflected fluorescence illumination, 6-position, B, G, U, V fluorescent filters are available

3W LED, LED lamps for B, G, U, V fluorescent filters are available

Mercury Fluorescent Attachment

Reflected fluorescence Koehler illumination with alterable field diaphragm and aperture diaphragm (Center adjustable), 6-position, B, G, U, V fluorescent filters are available

Mercury lamp house, the center and focal length of filament is adjustable

Digital power control box of mercury lamp, wide voltage: 100-240V AC

OSRAM 100W DC mercury bulb

Polarizing kit

Analyzer 360° rotatable; polarizer and analyzer can be out of light path

C-mount Adapters (Adjustable)

0.35× C-mount adapter

0.5× C-mount adapter

0.65× C-mount adapter

1× C-mount adapter

Filter

Blue(45mm)

Green, Yellow, neutral filter, ND25, ND50(45mm)

Package

1pc/carton, Carton size: 44cm*42cm*55cm, Net/Gross Weight: 15kg/16kg

Note: ●Standard Outfit, ○Optional
