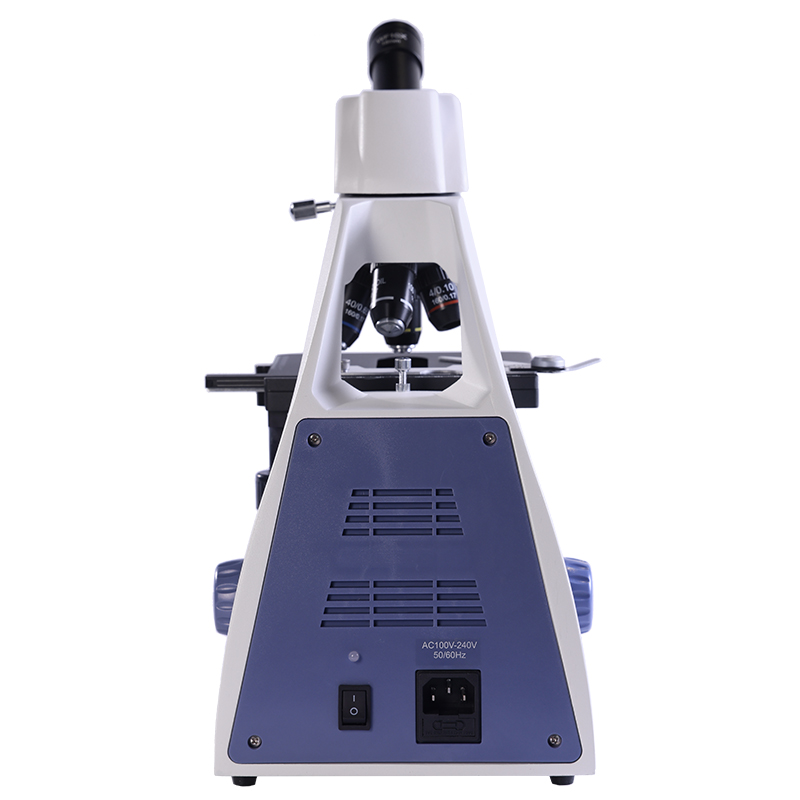

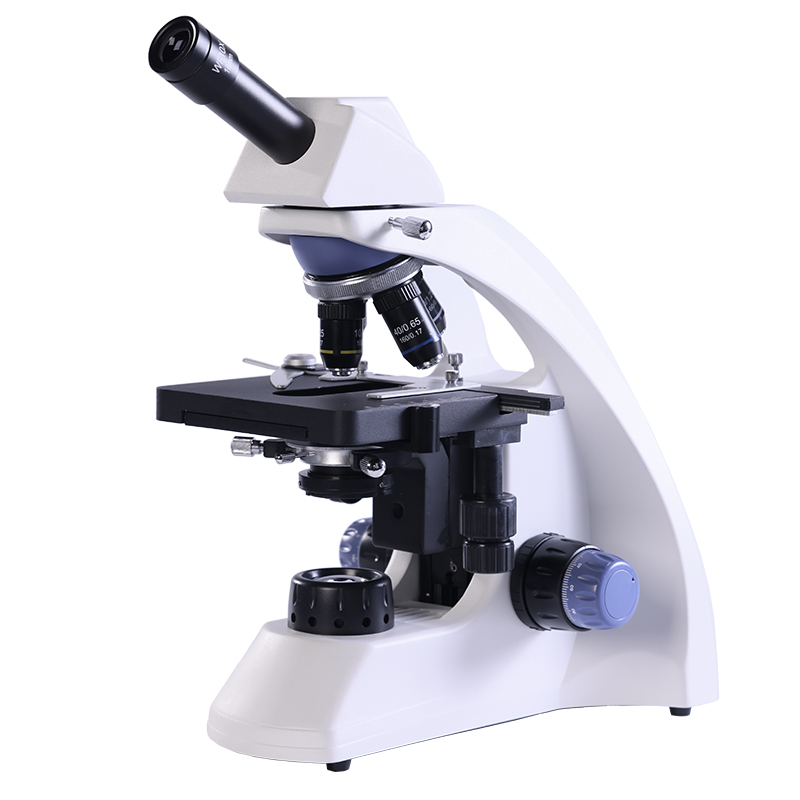

BS-2029M Monocular Biological Microscope

BS-2029M Monocular Biological Microscope

Introduction

BS-2029M microscopes are specially designed for college education, medical and laboratory study, supporting monocular, binocular, trinocular. With an innovative optical and structure design, excellent optical performance and easy to operate system, these biological microscopes make your works enjoyable.

Details

Model:BS-2029M

Viewing Head:Monocular

Eyepiece:WF10X/18mm

Objective:4X, 10X, 40X, 100X

Nosepiece:Quadruple nosepiece

Condenser:Abbe condenser NA 1.25

Illumination:3W LED

Enquiry now

Leave a message

Overview

Packaging & Delivery

Packaging Details:Strong Carton with Polyfoam Protection

Port:Beijing

Lead Time:Within 2-3 Weeks after Receiving Payment

Introduction

Features

1. Eyepiece

Wide field eyepiece WF10X/18mm for standard configuration, WF16X/13mm and WF20X/11mm for optional.

2. Objectives

The standard objectives are finite 195 achromatic objectives and there are finite plan achromatic objectives for optional.

3. Viewing head

There are monocular, binocular and trinocular viewing head to meet different needs.

4. Nosepiece

The quadruple nosepiece is easy to install and operate objectives. High-precision manufacturing to ensure the system focusing. There is also quintuple nosepiece for optional.

BS-2029 microscope Nosepiece

5. Stage

Double-layer mechanical stage with low position coaxial regulating handles. Stage size: 142mm*132mm. Moving range: 75mm*50mm.

BS-2029 microscope Stage

6. Focus system

Coaxial coarse and fine focusing system, coarse stroke 36mm/rotation, fine precision: 0.002mm.

BS-2029 microscope Focus system

Specification

Item	Specification		BS-2029M	BS-2029V	BS-2029B	BS-2029T
Optical System	Finite Optical System		●	●	●	●
Viewing Head	Inclined 30° monocular viewing head		●
	Inclined 30° monocular viewing head with teaching head			●
	Inclined 30° binocular viewing head, 360° rotatable, interpupillary distance: 50-75mm				●
	Inclined 30° trinocular viewing head, 360° rotatable interpupillary distance: 50-75mm, splitting ratio: eyepiece: trinocular=20:80.					●
Eyepiece	Wide field eyepiece WF10X/18mm		●	●	●	●
	Wide field eyepiece WF16X/13mm		○	○	○	○
	Wide field eyepiece WF20X/11mm		○	○	○	○
Objectives	Finite Achromatic Objectives Conjugate distance: 195mm	4X/NA=0.1, WD=37.5mm	●	●	●	●
		10X/NA=0.25, WD=6.54mm	●	●	●	●
		20X/NA=0.4, WD=1.2mm	○	○	○	○
		40X (S)/NA=0.65, WD=0.63mm	●	●	●	●
		60X (S)/NA=0.85, WD=0.33mm	○	○	○	○
		(Oil) 100X (S)=1.25, WD=0.19mm	●	●	●	●
	Finite Achromatic Plan Objectives Conjugate distance: 195mm	4X/NA=0.1, WD=17.91mm	○	○	○	○
		10X/NA=0.25, WD=2.04mm	○	○	○	○
		20X/NA=0.4, WD=0.65mm	○	○	○	○
		40X (S)/NA=0.65, WD=0.85mm	○	○	○	○
		60X (S)	○	○	○	○
		(Oil) 100X (S)/NA=1.25, WD=0.18mm	○	○	○	○
Nosepiece	Quadruple nosepiece		●	●	●	●
Nosepiece	Quintuple nosepiece		○	○	○	○
Focusing System	Coaxial coarse and fine focusing system, coarse stroke 36mm/rotation, fine precision: 0.002mm		●	●	●	●
Stage	Double-layer mechanical stage, stage size: 142mm132mm, moving range: 75mm50mm.		●	●	●	●
Illumination	3W LED lamp, brightness adjustable		●	●	●	●
Illumination	6V/20W halogen lamp, brightness adjustable		○	○	○	○
Condenser	Abbe condenser NA 1.25 with diaphragm, with filter		●	●	●	●
C-mount Adapter	0.5X C-mount adapter			○		○
C-mount Adapter	1.0X C-mount adapter			○		○
Packing	1pc/carton, 34cm25.5cm49cm, gross weight: 6kg, net weight: 5.3kg		●	●	●	●

Note: ●Standard Outfit, ○Optional

Application

BS-2029M microscopes are ideal instrument in biological, histological, pathological, bacteriology, immunizations and pharmacy field and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities.
