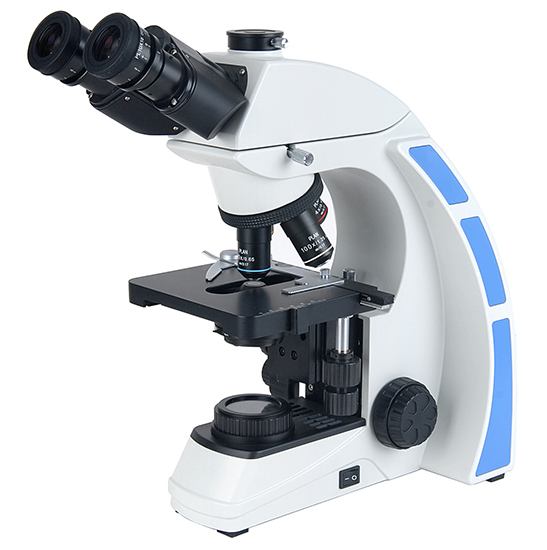

BS-2042T Trinocular Biological Microscope
Introduction
BS-2042 series microscopes are classical biological microscopes with ingenious stand, high definition infinite optical system, sharp image and comfortable operation, which make your work much enjoyable.
Details
Overview
Packaging & Delivery
Packaging Details:Strong Carton with Polyfoam Protection
Port:Beijing
Lead Time:Within 2-4 Weeks after Receiving Payment
Introduction
BS-2042 series microscopes are classical biological microscopes with ingenious stand, high definition infinite optical system, sharp image and comfortable operation, which make your work much enjoyable.
Features
- Infinite Color Corrected Optical System.
- Sensitive dimming system
- Koehler illumination.
- Easy carrying Handle.
Application
BS-2042 series microscopes are ideal instruments in biological, pathological, histological, bacterial, immune, pharmacological and genetic fields. They can be widely used in medical and sanitary establishments, such as hospitals, clinics, laboratories, medical academies, colleges, universities and related research centers.
Specification
|
Item |
Specification |
BS-2042B |
BS-2042T |
|
Optical System |
Infinite Color Corrected Optical System |
● |
● |
|
Viewing Head |
Seidentopf binocular head, 30° inclined, Interpupillary 48-75mm |
● |
|
|
Seidentopf trinocular head, 30° inclined, Interpupillary 48-75mm, Light splitting ratio: Eyepiece:Trinocular=8:2 |
|
● |
|
|
Eyepiece |
Plan 10×/18mm with adjustable diopter |
● |
● |
|
Plan 10×/20mm with adjustable diopter |
○ |
○ |
|
|
Objective |
Infinite plan Achromatic Objectives 4×, 10×, 40×, 100× |
● |
● |
|
Nosepiece |
Reversed Quadruple Nosepiece |
● |
● |
|
Reversed Quintuple Nosepiece |
○ |
○ |
|
|
Stage |
Double Layers Mechanical Stage 140mm×132mm, moving range 76mm×50mm |
● |
● |
|
Condenser |
NA1.25 Condenser (with slot for phase contrast and darkfield accessories) |
● |
● |
|
Focusing |
Coaxial focusing system with tension adjustable, coarse:25mm per rotation, with upper limit and tightness adjustment, Fine Division 0.002mm |
● |
● |
|
Illumination |
100V-240V, single high brightness 3W LED Koehler illumination, intensity adjustable |
● |
● |
|
100V-240V, Philips 6V/20W halogen Koehler illumination, intensity adjustable |
○ |
○ |
|
|
Optional accessories |
Phase Contrast Kit |
○ |
○ |
|
Dark Field Attachment |
○ |
○ |
|
|
Polarizing attachment |
○ |
○ |
|
|
Video & photo accessories (1/3×, 1/2×, 1× C-mount) |
|
○ |
|
|
Various filters (Blue, Green, Yellow and frosted) |
○ |
○ |
Note: ● Standard Outfit, ○ Optional
