Introduction

BS-2093AF(LED) Inverted Biological Microscope is a high-level microscope which is specially designed for medical and health units, universities, research institutes to observe cultured living cells. With an innovative infinite optical system and ergonomic design, it has excellent optical performance and easy to operate features.

Details

Model:BS-2093AF(LED)
Viewing Head:Trinocular
Magnification:40x-400x
Eyepiece:PL10X/22mm
Objective:4×, 10×, 20×, 40×
Stage:210mm(X) × 240 (Y)mm
Illumination:5W LED Lamp
Epi-Fluorescent Attachment: 5W LED and B/G Filters
Share

Overview

Packaging & Delivery

Packaging Details:Strong Carton with Polyfoam Protection

Port:Beijing

Lead Time:Within 2-4 Weeks after Receiving Payment

Introduction

BS-2093AF(LED) Inverted Biological Microscope is a high-level microscope which is specially designed for medical and health units, universities, research institutes to observe cultured living cells. With an innovative infinite optical system and ergonomic design, it has excellent optical performance and easy to operate features. This inverted biological microscope makes your work enjoyable. Digital cameras can be added to the trinocular head to take photos, videos and make measurement.

Features

1.Wide field of view

Excellent infinite optical system, Wide field eyepiece, view field up to Φ22mm, more comfortable for observation.



2.Better nosepiece

More objectives can be installed on the large diameter quintuple nosepiece, easier to change objective.





3.Viewing head with two splitting ratios

Light distribution (both): 100:0 (100% for eyepiece) or 80:20 (80% for trinocular head and 20% for eyepiece).







4.Long working distance condenser

Long working distance condenser, N.A. 0.30. Working distance: 72mm (with condenser).

Working distance: 195mm (without condenser), available for extra high culture dishes.



5.Large size stage

Large stage is convenient for research. Size: 210mm(X)*240mm(Y)mm, Moving range: 128mm(X)*80mm(Y).

Mechanical stage available for 96 holes plate.





6.Convenient for both hands

The knob of X-Y mechanical stage can be changed by left or right.





7.LED Epi fluorescent unit

Newly designed BFL2LED (5W LED lamp, B/G fluorescent filter) & BFL3LED (5W LED lamp, UV/B/G fluorescent filter) LED fluorescent unit can provide higher intensity and get clear images.



Specification



Item

Specification

BS-2093

A

BS-2093

AF

BS-2093

AF(LED)

Optical System

Infinite Optical System

Viewing Head

Inclined 45°trinocular tube, interpupillary distance: 48-76mm, splitting ratio: eyepiece: trinocular=100:0 or 20:80. Eyepiece tube diameter: 30mm

Eyepiece

Wide field plan eyepiece PL10X/22mm, with adjustable diopter

Wide field eyepiece WF15×/ 16mm

Wide field eyepiece WF20×/ 12mm

Objective

Long Working Distance Infinity Plan Achromatic Objective (L Plan FL)

2X/NA=0.06, WD=7.2mm

4X/NA=0.11, WD=12.1mm

10X/NA=0.25, WD=10.3mm

20X/NA=0.45, WD=5.8mm

40X/NA=0.65, WD=5.1mm

Long Working Distance Infinity Plan Achromatic Phase Contrast Objective (L Plan FL PHP)

4X/NA=0.10, WD=9.2mm

10X/NA=0.25, WD=10.3mm

20X/NA=0.45, WD=5.8mm

40X/NA=0.65, WD=5.1mm

LWD Infinity Plan Fluor Objectives (L Plan Fluor)

10X/NA=0.3, WD=14mm

20X/NA=0.45, WD=6.6mm

40X/NA=0.65, WD=3.9mm

Nosepiece

Quintuple nosepiece

Condenser

Long working distance condenser, N.A. 0.3. Working distance: 72mm (with condenser), 195mm (without condenser)

Centering Telescope

Centering telescope (Φ30mm)

Phase Annulus

4X phase annulus plate

10X phase annulus plate

20X/40X phase annulus plate

Stage

Stage size: 210mm(X)*241mm(Y). Round size: Φ110mm. Coaxial coarse and fine adjustment, fine division 0.002mm, moving range 10mm

Attached mechanical stage, available for 96 holes plate. X-Y coaxial control, moving range: 128mm(X)*80mm(Y)

Φ65mm culture dish holder +Φ35mm culture dish holder

Φ54mm culture dish holder

Holder for blood cell counter

Universal holder

Glass holder

Focusing

Coaxial coarse and fine adjustment, fine division 0.002mm, moving range 10mm

Koehler Illumination

12V/30W halogen lamp, input voltage: 100V-240V

5W LED lamp, input voltage: 100V-240V

Filter

Blue filter (Φ34mm)

Green filter (Φ34mm)

Amber/Gray filter (Φ34mm)

C-mount

0.35X C-mount adapter, adjustable focus

0.5X C-mount adapter, adjustable focus

0.65X C-mount adapter, adjustable focus

1X C-mount adapter, adjustable focus

Trinocular digital eyepiece interface

Epi-Fluorescent Attachment

Two channel fluorescence module: one 100W mercury lamp and B/G filters

BFL2LED Two channel fluorescence module: 5W LED and B/G filters. Synchronize LED bulbs with color filters. The fluorescence brightness is more than twice that of four channel LED fluorescence module.

BFL3LED Three channel fluorescence module: 5W LED and UV/B/G filters. Synchronize LED bulbs with color filters. The fluorescence brightness is more than twice that of four channel LED fluorescence module.

Four channel fluorescence module: one 100W mercury lamp and V/UV/B/G filters

Four channel fluorescence module: 5W LED and V/UV/B/G filters

Packing

1carton/set, Size: 66×59×33cm, GW: 18kgs, NW: 14kgs





2cartons/set, carton 1 Size: 52×47×49cm, GW: 18kgs, NW: 14kgs; carton 2 Size: 52×47×24cm, GW: 6kgs, NW: 4kgs





1carton/set, Size: 52×47×49cm, GW: 23kgs, NW: 18kgs





Note: ● Standard Outfit, ○ Optional

Application



BS-2093AF(LED) Inverted microscope is used by medical and health units, universities, research institutes for observations of micro-organisms, cells, bacteria and tissue cultivation. It can be used for continuous observation of process of cells, bacteria grow and divide in the culture medium. Videos and images can be taken during the process. This microscope is widely used in cytology, parasitology, oncology, immunology, genetic engineering, industrial microbiology, botany and other fields.

Accessories

1.Culture Dish Holder



Φ65mm



 Φ54mm



Φ35mm



blood cell counter holder



2.Universal holder and glass holder



Universal Holder



Glass Holder



3.Fluorescent Attachment

LED fluorescent attachment for BS-2093AF(LED)

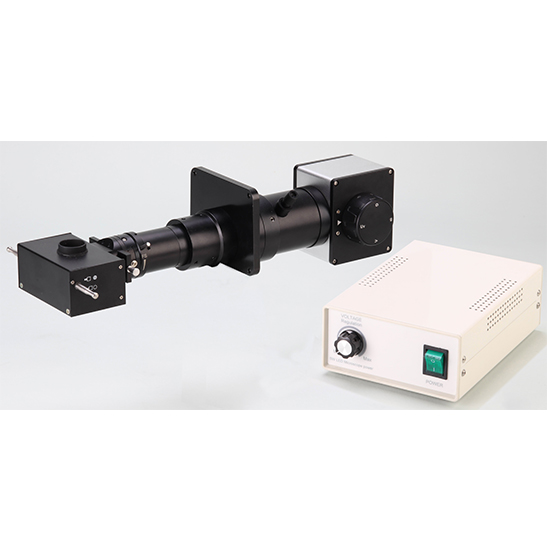

Mercury fluorescent attachment for BS-2093AF



4.Objectives

Objective Parameter List (Cover-glass thickness1.1mm)



Objectives

 N.A.

Working distance(mm)

LWD Infinity Plan Objectives

Plan FL 2X

0.06

7.2

L Plan FL 4X

0.11

12.1

L Plan FL 10X

0.25

10.3

L Plan FL 20X

0.45

5.8

L Plan FL 40X

0.65

5.1

L Plan FL 2X

0.06

7.2

LWD Infinity Plan Phase Contrast Objectives

L Plan FL PHP 4X (Both for Bright Field & Phase Contrast)

0.10

9.2

L Plan FL PHP 10X (Both for Bright Field & Phase Contrast)

0.25

10.3

L Plan FL PHP 20X (Both for Bright Field & Phase Contrast)

0.45

5.8

L Plan FL PHP 40X (Both for Bright Field & Phase Contrast)

0.65

5.1

LWD Infinity Plan

Fluor Objectives

L Plan Fluor 10x

0.30

14.0

L Plan Fluor 20x

0.45

6.6

L Plan Fluor 40x

0.65

3.9



LWD Infinity Plan Objectives



LWD Infinity Plan Phase Contrast Objectives
