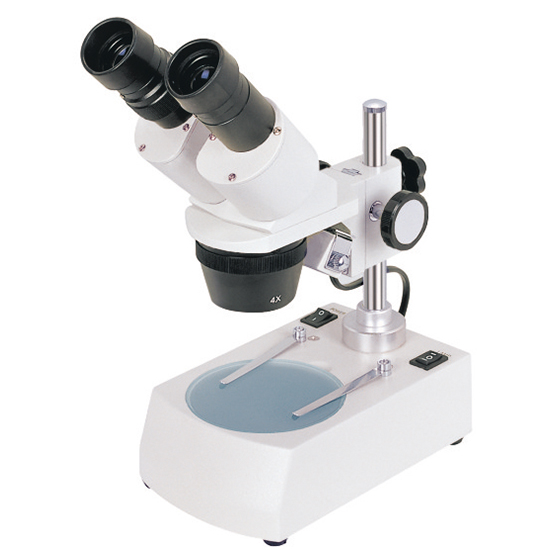

BS-3010A Binocular Stereo Microscope
BS-3010A Binocular Stereo Microscope

BS-3010A Binocular Stereo Microscope

Introduction

Stereo microscopes are also known as low magnification and dissecting microscopes. BS-3010 series stereo microscope offers upright, un-reversed 3D images with high resolution and high quality. Optional eyepieces and objectives expand magnification range and working distances.

BS-3010 is a smart and cost-effective stereo microscope. Optional cold light and ring light can be chosen for this microscope. They are widely used in electric factories, schools laboratories, sculpture, families and so on.

Details

Model:BS-3010A
Magnification:20x-80x
Eyepiece:WF10×, WF20×
Objective:2×, 4×
Illumination:LED
Viewing Head:Binocular
Working Distance:57mm
Share

Overview

Packaging & Delivery

Packaging Details:Strong Carton with Polyfoam Protection

Port:Beijing

Lead Time:Within 1-2 Weeks after Receiving Payment

Introduction

Stereo microscopes are also known as low magnification and dissecting microscopes. BS-3010 series stereo microscope offers upright, un-reversed 3D images with high resolution and high quality. Optional eyepieces and objectives expand magnification range and working distances.



BS-3010 is a smart and cost-effective stereo microscope. Optional cold light and ring light can be chosen for this microscope. They are widely used in electric factories, schools laboratories, sculpture, families and so on.

Features

1. Compact multi-lens stereo microscope with angled head, with 10X, 20X eyepiece, the total magnification coulde be 20x-80x.

2. Metal pillar stand, top and bottom LED lighting.

3. High quality, high function and excellent cost performance.

4. Ergonomic design, sharp image display, wide viewing field and easy to operate.

5. Ideal instrument in academic, medical and industrial field.

Application

BS-3010 series stereo microscopes are widely applied in circuit board repair, circuit board inspection, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, and repair and inspection of small parts.

Specification

Item

Specification

BS-3010A

BS-3010B

Viewing Head

Binocular Viewing Head, 45° Inclined, Interpupilary Distance 55-75mm, Un-rotatable



Binocular Viewing Head, 45° Inclined, Interpupilary Distance 55-75mm, 360° Rotatable



Eyepiece

WF5×/20mm

WF10×/20mm

WF15×/15mm

WF20×/10mm

Objective

2×, 4×

1×, 2×

1×, 3×

Working Distance

57mm



76mm



Illumination

Transmitted halogen light 12V/ 10W

Incident halogen light 12V/ 10W

Transmitted & Incident LED illumination

Package

4pcs/carton, 68cm*31cm*38cm, 16kg

Note: ● Standard Outfit, ○ Optional
