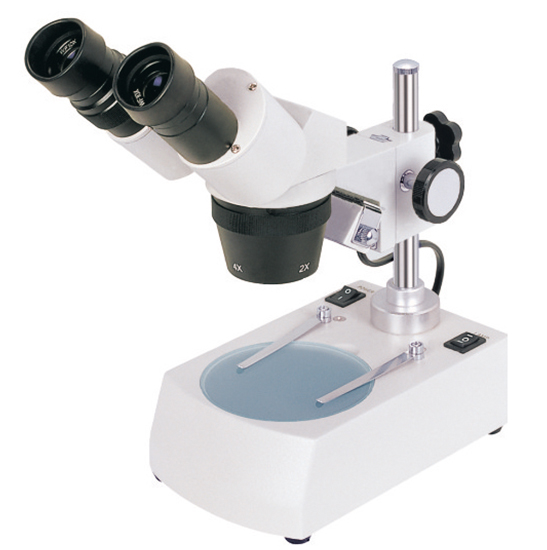

BS-3010B Binocular Stereo Microscope
Introduction
Stereo microscopes are also known as low magnification and dissecting microscopes. BS-3010 series stereo microscope offers upright, un-reversed 3D images with high resolution and high quality. Optional eyepieces and objectives expand magnification range and working distances.
BS-3010 is a smart and cost-effective stereo microscope. Optional cold light and ring light can be chosen for this microscope. They are widely used in electric factories, schools laboratories, sculpture, families and so on.
Details
Overview
Packaging & Delivery
Packaging Details:Strong Carton with Polyfoam Protection
Port:Beijing
Lead Time:Within 1-2 Weeks after Receiving Payment
Introduction
Stereo microscopes are also known as low magnification and dissecting microscopes. BS-3010 series stereo microscope offers upright, un-reversed 3D images with high resolution and high quality. Optional eyepieces and objectives expand magnification range and working distances.
BS-3010 is a smart and cost-effective stereo microscope. Optional cold light and ring light can be chosen for this microscope. They are widely used in electric factories, schools laboratories, sculpture, families and so on.
Features
- High quality, high function and excellent cost performance.
- Ergonomic design, sharp image display, wide viewing field and easy to operate.
- Ideal instrument in academic, medical and industrial field.
Application
BS-3010 series stereo microscopes are widely applied in circuit board repair, circuit board inspection, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, and repair and inspection of small parts.
Specification
|
Item |
Specification |
BS-3010A |
BS-3010B |
|
Viewing Head |
Binocular Viewing Head, 45° Inclined, Interpupilary Distance 55-75mm, Un-rotatable |
● |
|
|
Binocular Viewing Head, 45° Inclined, Interpupilary Distance 55-75mm, 360° Rotatable |
|
● |
|
|
Eyepiece |
WF5×/20mm |
○ |
○ |
|
WF10×/20mm |
● |
● |
|
|
WF15×/15mm |
○ |
○ |
|
|
WF20×/10mm |
○ |
○ |
|
|
Objective |
2×, 4× |
● |
● |
|
1×, 2× |
○ |
○ |
|
|
1×, 3× |
○ |
○ |
|
|
Working Distance |
57mm |
● |
|
|
76mm |
|
● |
|
|
Illumination |
Transmitted halogen light 12V/ 10W |
● |
● |
|
Incident halogen light 12V/ 10W |
● |
● |
|
|
Transmitted & Incident LED illumination |
○ |
○ |
|
|
Package |
4pcs/carton, 68cm*31cm*38cm, 16kg |
● |
● |
Note: ● Standard Outfit, ○ Optional
