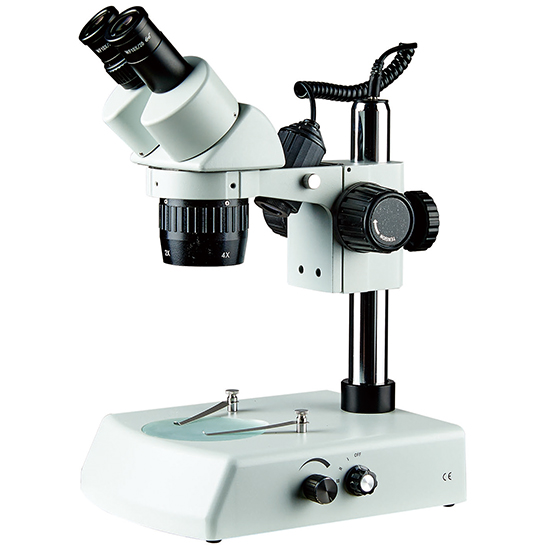

BS-3014B Binocular Stereo Microscope
BS-3014B Binocular Stereo Microscope

BS-3014B Binocular Stereo Microscope

Introduction

BS-3014 series stereo microscopes offer upright, un-reversed 3D images with high resolution. The microscopes are smart and cost-effective. Optional cold light and ring light can be chosen for these microscopes. They are widely used in electric factories, schools laboratories, sculpture, families and so on.

Details

Model:BS-3014B
Magnification:5×-160×
Eyepiece:WF10×
Objective:2×, 4×
Working Distance:100mm
Illumination:Halogen
Viewing Head:Binocular
Share

Overview

Packaging & Delivery

Packaging Details:Strong Carton with Polyfoam Protection

Port:Beijing

Lead Time:Within 1-2 Weeks after Receiving Payment

Introduction

BS-3014 series stereo microscopes offer upright, un-reversed 3D images with high resolution. The microscopes are smart and cost-effective. Optional cold light and ring light can be chosen for these microscopes. They are widely used in electric factories, schools laboratories, sculpture, families and so on.

Features

  1. 20×/40× magnification, can be extended to 5×-160× with optional eyepiece and auxiliary objective.
  2. High eyepoint WF10×/20mm eyepiece.
  3. 100mm Long working distance.
  4. Ergonomic design, sharp image, wide viewing field, high depth of field and easy to operate.
  5. Ideal instrument in education, medical and industrial field.

Application

The BS-3014 series stereo microscopes are of great value in a variety of applications such as circuit board repair, circuit board inspection, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, repair and inspection of small parts, dissection and school education etc.

Specification

Item

Specification

BS-3014A

BS-3014B

BS-3014C

BS-3014D

Head

Binocular Viewing Head, Inclined at 45°, 360° rotatable, Interpupillary adjusting distance 54-76mm, left eyepiece with diopter adjustment±5

Eyepiece

High eyepoint WF10×/20mm eyepiece

WF15×/15mm eyepiece

WF20×/10mm eyepiece

Objective

2×, 4×

1×, 2×

1×, 3×

Magnification

20×, 40×, with optional eyepiece and auxiliary objective, can be extended to 5×-160×

Auxiliary Objective

0.5× objective, W.D.: 165mm

1.5× objective, W.D.: 45mm

2× objective, W.D.: 30mm

Working Distance

100mm

Head Mount

76mm

Illumination

Transmitted light 12V/15W Halogen, Brightness Adjustable







Incident light 12V/15W Halogen, Brightness Adjustable







Transmitted light 3W LED, Brightness Adjustable





Incident light 3W LED, Brightness Adjustable





LED ring light

Cold light source

Focusing Arm

Coarse focusing, focusing range 50mm

Pillar Stand

Pole height 240mm, pole diameter Φ32mm, with Clips, Φ95 black&White plate, Base size: 200×255×22mm, no illumination







Pole height 240mm, pole diameter Φ32mm, with Clips, Φ95 black&White plate, glass plate, Base size: 200×255×60mm, Halogen illumination







Pole height 240mm, pole diameter Φ32mm, with Clips, Φ95 black&White plate, Base size: 205×275×22mm, no illumination







Pole height 240mm, pole diameter Φ32mm, with Clips, Φ95 black&White plate, glass plate, Base size: 205×275×40mm, LED illumination







Package

1pc/1carton, 38.5cm*24cm*37cm, Net/Gross Weight: 3.5/4.5kg

Note: ● Standard Outfit, ○ Optional

Optical Parameters

Objective

Eyepiece

WF10×/20mm

WF15×/15mm

WF20×/10mm

WD

Mag.

FOV

Mag.

FOV

Mag.

FOV

100mm

10×

20mm

15×

15mm

20×

10mm

20×

10mm

30×

7.5mm

40×

5mm

30×

6.6mm

45×

5mm

60×

3.3mm

40×

5mm

60×

3.75mm

80×

2.5mm
