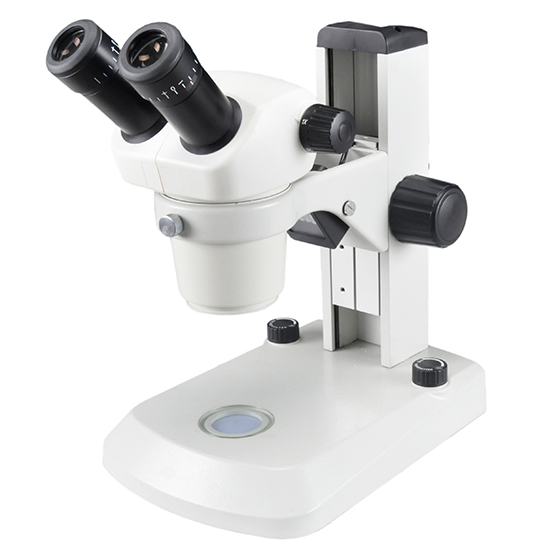

BS-3015B Binocular Stereo Microscope
BS-3015B Binocular Stereo Microscope
BS-3015B Binocular Stereo Microscope
BS-3015B Binocular Stereo Microscope
BS-3015B Binocular Stereo Microscope
BS-3015B Binocular Stereo Microscope

BS-3015B Binocular Stereo Microscope

Introduction

BS-3015 series stereo microscopes offer upright, un-reversed 3D images with high resolution. The microscopes are smart and cost-effective. Optional eyepiece, objectives, cold light and ring light are available for the microscopes. They are widely used in electric factories, schools laboratories, sculpture, families and so on.

Details

Model:BS-3015B
Magnification:5×-240×
Eyepiece:WF10×
Objective:2×, 4×
Working Distance:97mm
Illumination:LED
Viewing Head:Binocular
Video Adapter:0.5× C-mount
Share

Overview

Packaging & Delivery

Packaging Details:Strong Carton with Polyfoam Protection

Port:Beijing

Lead Time:Within 1-2 Weeks after Receiving Payment

Introduction

BS-3015 series stereo microscopes offer upright, un-reversed 3D images with high resolution. The microscopes are smart and cost-effective. Optional eyepiece, objectives, cold light and ring light are available for the microscopes. They are widely used in electric factories, schools laboratories, sculpture, families and so on.

Features

  1. High quality, high function and excellent cost performance.
  2. Ergonomic design, sharp image display, wide viewing field and easy to operate.
  3. Various objectives 1×/2×,1×/3×,1×/4×, 2×/3×, 2×/4×, Magnification range 5×-240×.
  4. Providing a wide viewing eyepiece with field of Φ23mm.
  5. Ideal instrument in academic, medical and industrial field.
  6. ESD painting is available.

Application

The BS-3015 series stereo microscopes are of great value in a variety of applications such as circuit board repair, circuit board inspection, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, repair and inspection of small parts.

Specification

Item

Specification

BS-3015B

BS-3015T

Viewing Head

Binocular Viewing Head, Inclined at 45°, 360° rotatable, Interpupillary adjusting distance 55-75mm



Binocular Viewing Head, Inclined at 60°, 360° rotatable, Interpupillary adjusting distance 55-75mm

Trinocular Viewing Head, Inclined at 45°, 360° rotatable, Interpupillary adjusting distance 55-75mm, Light distribution: 2:8



Diopter Adjustment Eyepiece

WF10×/23mm eyepiece

WF10×/22mm eyepiece

WF10×/20mm eyepiece

WF15×/16mm eyepiece

WF20×/12mm eyepiece

WF30×/8mm eyepiece

WF10× eyepiece with cross hair

Objective

Changeable objective

2×, 4×

2×, 3×

1×, 2×

1×, 3×

1×, 4×

Auxiliary objective

2×,     WD: 30mm

0.75×,  WD: 120mm

0.63×,  WD: 137mm

0.5×,   WD: 180mm

Working Distance

97mm

Head Mount

Diameter 76mm

Focusing

Coarse Focus, Focusing Range 100mm

Illumination

Incident Illumination 100V-240V/ LED

Transmitted Illumination 100V-240V/ LED

Photo Adapter

Used for connecting Nikon or Canon DSLR camera to the microscope

Video Adapter

0.5× C-mount

1× C-mount or 23.2mm video tube

Note: ● Standard Outfit, ○ Optional
