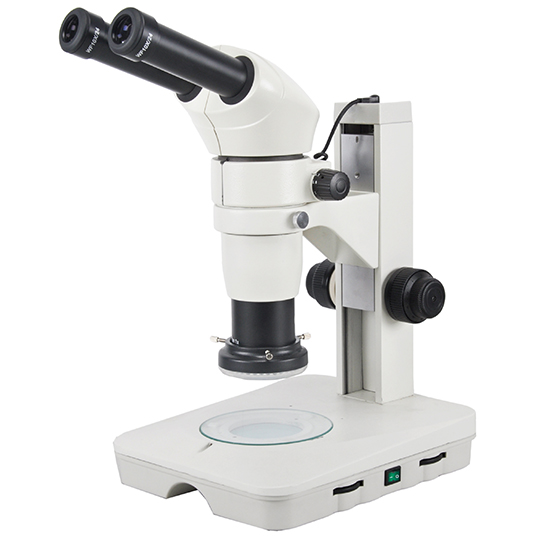

BS-3061C Binocular Zoom Stereo Microscope
BS-3061C Binocular Zoom Stereo Microscope
BS-3061C Binocular Zoom Stereo Microscope
BS-3061C Binocular Zoom Stereo Microscope
BS-3061C Binocular Zoom Stereo Microscope
BS-3061C Binocular Zoom Stereo Microscope

BS-3061C Binocular Zoom Stereo Microscope

Introduction

Stereo microscopes are also known as low magnification and dissecting microscopes. BS-3061 Series Zoom Stereo Microscope with Infinity Parallel Optical System on a post stand offers upright, un-reversed 3-D images that remain in focus throughout the zoom range. Optional eyepieces and auxiliary objectives expand magnification range and working distances.

Details

Model:BS-3061C
Magnification:8x-80x
Eyepiece:EW10×
Objective:0.8×-8×
Working Distance:78mm
Illumination:LED
Viewing Head:Binocular
Zoom Ratio:1: 10
Share

Overview

Packaging & Delivery

Packaging Details:Strong Carton with Polyfoam Protection

Port:Beijing

Lead Time:Within 1-2 Weeks after Receiving Payment

Introduction

Stereo microscopes are also known as low magnification and dissecting microscopes. BS-3061 Series Zoom Stereo Microscope with Infinity Parallel Optical System on a post stand offers upright, un-reversed 3-D images that remain in focus throughout the zoom range. Optional eyepieces and auxiliary objectives expand magnification range and working distances.

BS-3061 Series Stereo Microscopes are high level stereo microscopes. Optional cold light and ring light can be chosen for this microscope. You can also choose trinocular head to add digital camera with the appropriate camera adapter. In summary BS-3061 series Parallel Stereo Microscopes give the greatest range of magnifications, working distances, photo options, accessories and are the most convenient to use – no wonder they are popular!

Features

  1. Excellent Image Quality & Optical Performance with Infinity Parallel Optical System.
  2. Comfortable Operation with Ergonomic Design Principle.
  3. With LED light for both incident and transmitted illumination, Providing even illumination and life expectancy can reach 6000 hours.
  4. A Wide Range of Accessories to be Equipped with the Microscope for Multi-purpose. It is an Outstanding Assistant in Industrial, Medical and Scientific Research Areas.

Application

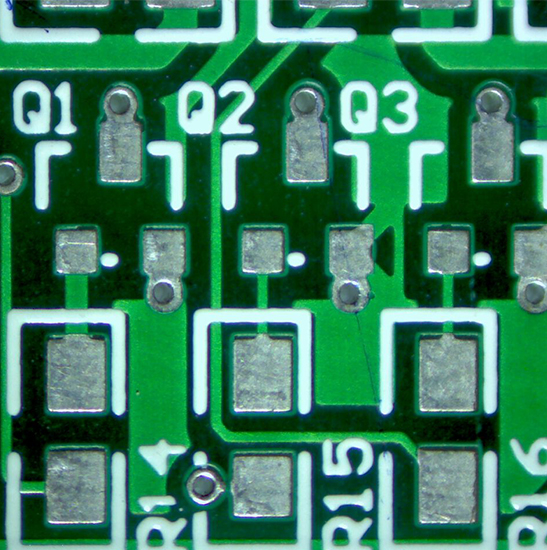

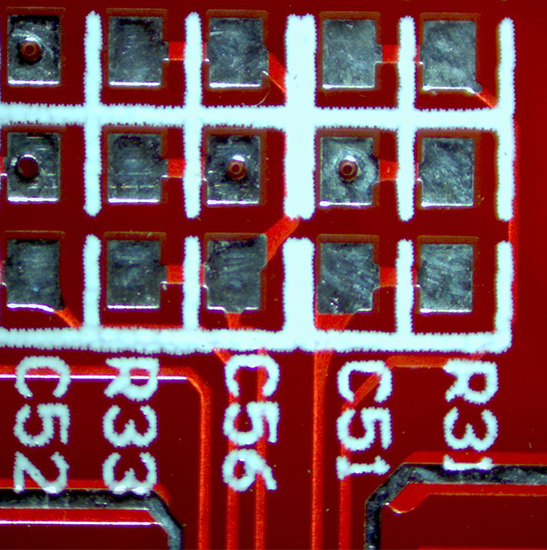

BS-3061 series stereo zoom microscopes with Infinity Parallel Optical System is of great value in a variety of applications such as Industrial, Medical and Scientific Research Areas, circuit board repair, circuit board inspection, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, and repair and inspection of small parts.

Specification

Item

Specification

BS-3061A

BS-3061B

BS-3061C

Optical System

Infinite Parallel Zoom Optical System

Viewing Head

Binocular Head, 20°Inclination, Interpupilary Distance 55-75mm

Tilting Binocular Eyepiece Tube, 5°-35° Inclined, Interpupilary Distance 55-75mm

Eyepiece

EW10×/Φ22

WF15×/Φ16

WF20×/Φ12

WF30×

Zoom Objective

0.8×-5×





0.8×-6.4×





0.8×-8×





Objective

Plan Achromatic Objective 1×

Achromatic Objective 0.3×

Plan Apochromatic Objective 0.5×

Plan Achromatic Objective 2×

Zoom Ratio

1: 6





1: 8





1: 10





Working Distance

78mm

Focusing Range

105mm

Illumination

Transmission & Reflection LED Illumination, Brightness Adjustable

Optional Accessories

Coaxial Illumination

Epi-Fluorescent Attachment

Dark Field Attachment

Simple Polarization Set

Iris Diaphragm

Beam splitter (one port)

Beam splitter (two ports)

Photography & video attachment

Moveable Stage

Temperature controlled Stage

Universal Table Stand/Table clamp stand

Coaxial Coarse & Fine Focusing Unit

Cold light illumination with dual light guide

LCD Attachment

Package & Dimension

49cm*40cm*56cm, 1pc/carton, 9.5kg

Note: ● Standard Outfit, ○ Optional
