BS-6005 Trinocular Inverted Metallurgical Microscope
Introduction
BS-6005 series inverted metallurgical microscopes adopt professional metallurgical objective and plan eyepiece to provide superior image, high resolution and comfortable observation. They combine bight field, dark field and polarizing observation. They are widely used in teaching and research of metallographic analysis, semiconductor silicon wafer inspection, geology mineral analysis, precision engineering and similar fields.
Details
Overview
Packaging & Delivery
Packaging Details:Strong Carton with Polyfoam Protection
Port:Beijing
Lead Time:Within 1-2 Weeks after Receiving Payment
Introduction
Introduction
BS-6005 series inverted metallurgical microscopes adopt professional metallurgical objective and plan eyepiece to provide superior image, high resolution and comfortable observation. They combine bright field, dark field and polarizing observation. They are widely used in teaching and research of metallographic analysis, semiconductor silicon wafer inspection, geology mineral analysis, precision engineering and similar fields.
Features
1.Dark field observation available
Dark field objectives are available, make observation in dark & bright field.
2.Wide view field
Wide field eyepiece, view field up to 22mm for comfortable observation.
3.High intensity illumination
12V/50W Halogen lamp provide high intensity illumination, can detect the details better.
4.High quality objectives
High quality bright field, bright & dark field metallurgical objective.

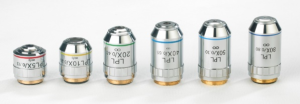

Metallurgical LWD Infinite Plan Objectives
Metallurgical LWD Infinite Plan Objectives for Bright & Dark Field
5.Large stage
Large size (210 mm×180mm) three-layer working stage, more choice for samples.
6.Viewing head
Light distribution (both): 100 : 0 (100% for eyepiece); 80 : 20 (80% for trinocular head and 20% for eyepiece), easy to use camera and have high definition and high resolution images.

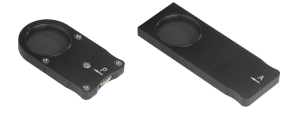

7.Standard polarizing set
Specification
|
Item |
Specification |
BS-6005 |
BS-6005D |
|
|
Optical System |
Infinite optical system |
● |
● |
|
|
Viewing Head |
Inclined 30° trinocular tube, interpupillary distance: 48-76mm, splitting ratio: eyepiece: trinocular=100:0 or 20:80 |
● |
● |
|
|
Eyepiece |
Wide field eyepiece WF10X/22mm, adjustable, tube diameter: 30mm |
● |
● |
|
|
Wide field eyepiece WF10X/22mm, adjustable, with reticule 0.1mm |
● |
● |
||
|
Objectives |
Infinity Long Working Distance Plan Metallurgical Objectives |
5X/ NA 0.15, WD=21.0mm |
● |
○ |
|
10X/ NA 0.30, WD=20.0mm |
● |
○ |
||
|
20X/ NA 0.40, WD=15.0mm |
● |
○ |
||
|
50X/ NA 0.55, WD=10.0mm |
● |
○ |
||
|
50X/ NA 0.75, WD=4.25mm |
○ |
○ |
||
|
80X/ NA 0.80, WD=0.85mm |
○ |
○ |
||
|
(Dry) 100X/NA 0.85, WD=3.0mm |
○ |
○ |
||
|

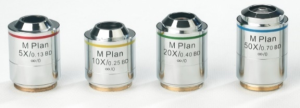

Infinity Long Working Distance Bright & Dark Field Plan Metallurgical Objectives |
5X/ NA 0.13, WD=7.3mm |
|
● |
|
|
10X/ NA 0.25, WD=11.5mm |
|
● |
||
|
20X/ NA 0.40, WD=5.6mm |
|
● |
||
|
50X/ NA 0.70, WD= 1.6mm |
|
● |
||
|
Nosepiece |
Quintuple nosepiece |
● |
|
|
|
Quadruple nosepiece, specially for bright & dark field objectives |
|
● |
||
|
Focusing |
Low position coaxial coarse and fine adjustment. With tightness adjustment. Coarse stroke per rotation 10mm, fine stroke per rotation 0.2mm; fine division 2μm. |
● |
● |
|
|
Stage |
Stage size: 210mm*180mm, moving range: 50mm*50mm. Scale: 0.1mm, round slide size: Φ110mm |
● |
● |
|
|
Sample holder |
○ |
○ |
||
|
Glass holder |
○ |
○ |
||
|
Illumination |
12V/50W Halogen lamp, input voltage: 100V-240V |
● |
● |
|
|
5W LED lamp, input voltage: 100V-240V |
○ |
○ |
||
|
Auto power on-off system |
Power off automatically upon user leaving 10 minutes, power on automatically upon user approaching |
○ |
○ |
|
|
Polarizing kit |
Polarizer and the analyzer |
● |
● |
|
|
Filter |
Blue filter (Φ34) |
● |
● |
|
|
Green filter (Φ34) |
○ |
○ |
||
|
Amber filter (Φ34) |
○ |
○ |
||
|
Grey filter (Φ34) |
○ |
○ |
||
|
Video Adapter |
0.35X C-mount adapter, adjustable focus |
○ |
○ |
|
|
0.5X C-mount adapter, adjustable focus |
○ |
○ |
||
|
0.75X C-mount adapter, adjustable focus |
○ |
○ |
||
|
1X C-mount adapter, adjustable focus |
○ |
○ |
||
|
Trinocular digital eyepiece interface |
○ |
○ |
||
|
Packing |
Packing Size: 660mm×590mm×325mm, Gross Weight: 17 kgs, Net Weight: 12.5 kgs |
● |
● |
|
Note: ● Standard Outfit, ○ Optional

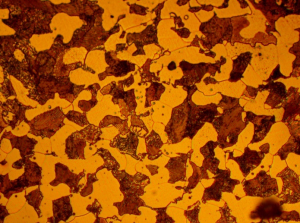

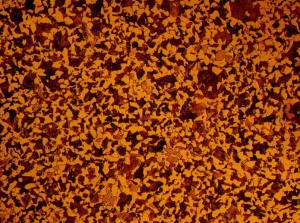

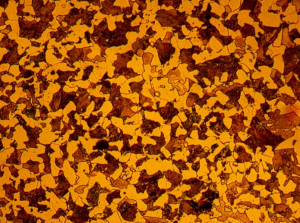

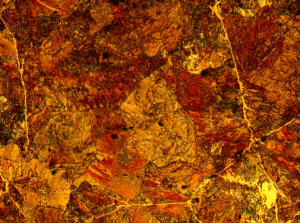

Sample Image

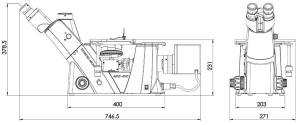

Dimension
