Introduction

BS-6062BD is flexible and practical tool for metallographic detection. With high quality component design, simple and flexible combination and strong metallographic detecting function, BS-6062BD is the best choice for large size sample observation. Compact and flexible structure adapt to various surroundings. Clear and sharp image can be got under various kinds of observations.

Details

Model:BS-6062BD
Viewing Head:Trinocular
Magnification:50×-500×
Eyepiece:PL10X
Objective:5×, 10×, 20×, 50×
Nosepiece:Quintuple
Illumination:LED
Share

Overview

Packaging & Delivery

Packaging Details:Strong Carton with Polyfoam Protection

Port:Beijing

Lead Time:Within 1-2 Weeks after Receiving Payment

Introduction

BS-6062BD is flexible and practical tool for metallographic detection. With high quality component design, simple and flexible combination and strong metallographic detecting function, BS-6062BD is the best choice for large size sample observation. Compact and flexible structure adapt to various surroundings. Clear and sharp image can be got under various kinds of observations. Optical components are all specially processed and coated with special film. New design of long working distance professional metallurgical objectives which is high power adopted semi-apochromatic technology.

Features



1.Independent metallographic detecting system

Different from traditional metallographic microscope, BS-6062BD has a compact structure. The appearance is small and exquisite. The operation is easier and quicker. Large flat base and coaxial focusing bracket, conquer the limit of large or thick sample observation with common metallographic microscope. With integrated several observing functions such as bright field, dark field, polarizing and DIC, the users could choose freely according to practical application.



2.Visual system for large-scale equipment

Integration of several observations, professional metallographic microscopy technology and flexible contraption, BS-6062BD becomes the first professional metallographic microscope that can be mounted in large mechanical equipment as visual system, for production or testing equipment of large LCD or PCD panels. With photo and video mount, the image can be output to monitor or computer, making the rapid detection more convenient.



3.Long working distance metallurgical objectives

New design of long working distance professional metallurgical objectives, with semi-apochromatic and multilayer broadband coating technology, the image is clear and sharp and the color is natural and bright in the whole field. Long working distance design makes DIC differential interference observation perfectly.

Complete set of bright/dark field objectives, luminance of new dark field illumination is double than the traditional objectives.



Specification



Item

Specification

BS-6062

BS-6062BD

Optical System

Infinite Color Corrected Optical System

Viewing Head

30° inclined gemel trinocular head, 360° rotatable, interpupillary distance 54-75mm, visual adjustment: ±5 diopter, splitting ratio binocular: trinocular =100:0 or 50:50

Eyepiece

High eye point wide field plan eyepiece PL10X/22mm

High eye point wide field plan eyepiece PL10X/22mm, with micrometer

High eye point wide field plan eyepiece PL10X/22mm, with adjustable diopter

High eye point wide field plan eyepiece PL10X/22mm, with micrometer and adjustable diopter

High eye point wide field plan eyepiece PL10X/23mm, with adjustable diopter

High eye point wide field plan eyepiece PL15X/16mm

Objective

Infinity Long Working Distance Bright Field Plan Achromatic Metallurgical Objectives

5X/NA=0.15, WD=10.8mm

10X/NA=0.3, WD=12.2mm

20X/NA=0.45, WD=4.0mm

50X/NA=0.55, WD=7.9mm

100X/NA=0.8, WD=2.1mm

Infinity Long Working Distance Bright & Dark Field Plan Achromatic Metallurgical Objectives

5X/NA=0.15, WD=9.0mm

10X/NA=0.3, WD=9.0mm

20X/NA=0.45, WD=3.4mm

Infinity Long Working Distance Bright & Dark Field Semi-Apochromatic Metallurgical Objective

50X/NA=0.55, WD=7.5mm

100X/NA=0.8, WD=2.1mm

Nosepiece

Inward quintuple nosepiece, with DIC slot



Inward quintuple bright & dark field nosepiece, with DIC slot



Microscope Body

Coaxial focusing mechanism with a column hole diameter of 32mm, coarse range: 45mm, fine precision: 0.002mm, with upper limited and tension adjustment.

Large flat base

Column type large flat base, base size: 320*260*16mm (excluding feet), equipped with seismic resistant feet. Installation holes on the base for movable stage.

Illumination

With variable aperture and field diaphragm, both center adjustable. For single fiber optic lighting



With variable aperture and field diaphragm, both center adjustable. With switch device between bright field and dark field. For single fiber optic lighting



Fiber optic adapter kit

Power box (black) of high brightness LED cold color lamp, input 85-265V/AC, output 20W. LED color temperature 6000K.

Single fiber tube (length: 0.55m)

Single fiber tube (length: 1m)

Single fiber tube (length: 1.5m)

Polarizer and Analyzer

Polarizer and fixed analyzer

Polarizer and 360-degree rotatable analyzer

Filters

Blue interference filter for reflected use: <480nm

Green interference filter for reflected use: 520nm-570nm

Red interference filter for reflected use: 630nm-750nm

Interference filter for reflected use, color balance plate (white light)

C-mount Adapter

0.35× C-mount adapter, focus adjustable

0.5× C-mount adapter, focus adjustable

0.65× C-mount adapter, focus adjustable

1× C-mount adapter, focus adjustable

Other Accessories

DIC Kit, for infinity LWD BD plan achromatic metallurgical objectives and infinity LWD BD semi-apochromatic metallurgical objectives

High precision micrometer, 0.01mm increment

Ordinary micrometer, 0.01mm increment

Internal hexagonal Spanner M3

Internal hexagonal Spanner M4

Note: ● Standard Outfit, ○ Optional



Application

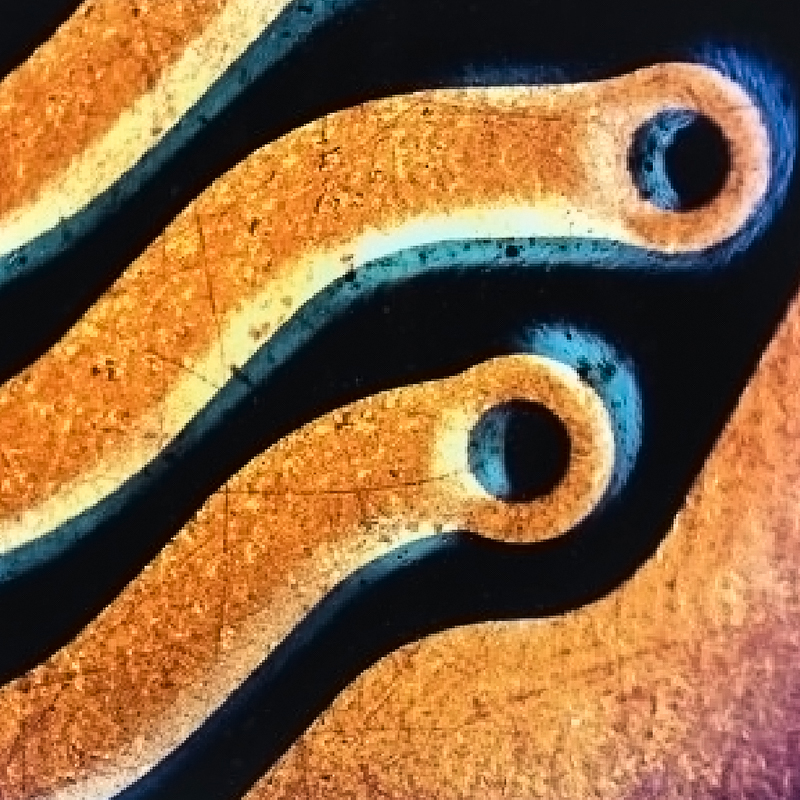

FPC (10X/Dark Field)



IC  (50X/Bright Field)



Conducting Particles (20X/DIC)



CD (20X/DIC)

Accessories



1.Different illuminator for option

Bright field reflecting illuminator: with iris field diaphragm and aperture diaphragm, center adjustable, with oblique illumination.



Bright/dark field reflecting illuminator: with iris field diaphragm and aperture diaphragm, center adjustable, with switch device between bright field and dark field.





2.Wide field of view gemel trinocular head

Gemel trinocular head, inverted image, compact structure design, assemble easily and lighten the weight of the whole body.





3.Photo and video accessories

Trinocular head with video accessories, user can get the image from monitor or computer, to achieve image analysis, processing, save or transmitting. Use special C-mount and relay lens, connecting with digital camera to take photos and catch images.





4.Various interference filters for option

You can choose LBD sunlight filter, to get soft bright and white background. In industry use, choose other filter to adjust the light spectrum to get the best image result.





5.Polarizing and DIC accessories

Insert polarizer and analyzer into the exact slot of illuminator, you would achieve simple polarizing observation. On the base of orthogonality polarizing, insert Nomarski DIC prism to match DIC observation. DIC technology can indicate significant relief effects on small surface height differences, greatly improving image contrast.







6.Objectives

Infinity long working distance metallurgical objective



Infinity long working distance bright/dark field metallurgical objective





7.Eyepieces
