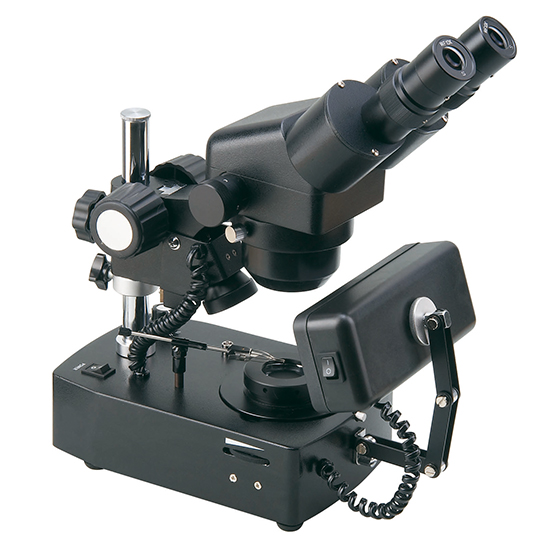

BS-8030T Trinocular Gemological Microscope
Introduction
A gemological microscope is the microscope used by jewelers and gem stone experts. Equipped with good illumination, gem clamp and dark field attachment, BS-8020B&BS-8030B/T gemological microscopes can meet most of the works for gem experts. The most obvious advantage of them is cost effective and affordable. They are especially designed to view precious stone samples and the pieces of jewelry that are contained in them.
Details
Overview
Packaging & Delivery
Packaging Details:Strong Carton with Polyfoam Protection
Port:Beijing
Lead Time:Within 1-2 Weeks after Receiving Payment
Introduction
A gemological microscope is the microscope used by jewelers and gem stone experts. Equipped with good illumination, gem clamp and dark field attachment, BS-8020B&BS-8030B/T gemological microscopes can meet most of the works for gem experts. The most obvious advantage of them is cost effective and affordable. They are especially designed to view precious stone samples and the pieces of jewelry that are contained in them.
Features
- Good quality illumination, come with gem clamp and dark field attachment.
- Cost effective and affordable gemological microscopes.
Application
BS-8020 and BS-8030 series gemological microscopes are usually used to identify the authenticity of gemstones. They also can be used in the design, creation, production and repair of jewelry. The gemological microscopes are precision microscopes that are capable of inspecting diamonds, emeralds, rubies and all other types of precious stones.
Specification
|
Item |
Specification |
BS-8020B |
BS-8030B |
BS-8030T |
|
Viewing Head |
Inclined Binocular head, 360° Rotatable, Interpupilary distance 55-75mm |
● |
● |
|
|
Inclined Trinocular head, 360° Rotatable, Interpupilary distance 55-75mm |
|
|
● |
|
|
Eyepiece |
WF10×/20mm |
● |
○ |
○ |
|
WF10×/22mm |
|
● |
● |
|
|
WF15×/15mm |
○ |
○ |
○ |
|
|
WF20×/10mm |
○ |
○ |
○ |
|
|
Objective |
1×-4× |
|
● |
● |
|
0.7×~3.6× |
|
○ |
○ |
|
|
2×, 4× |
● |
|
|
|
|
1×, 2× |
○ |
|
|
|
|
1×, 3× |
○ |
|
|
|
|
Auxiliary Objective |
0.5× |
○ |
○ |
○ |
|
0.75× |
○ |
○ |
○ |
|
|
1.5× |
○ |
○ |
○ |
|
|
2× |
○ |
○ |
○ |
|
|
Incident Illumination |
Halogen lamp 12V/10W |
● |
● |
● |
|
Fluorescent 10W |
○ |
● |
● |
|
|
Transmitted Illumination |
Halogen lamp 12V/10W |
● |
● |
● |
|
LED illumination |
○ |
○ |
○ |
|
|
Accessories |
High quality Jewel clamp |
● |
● |
● |
|
Darkfield working stage (with Iris diagram) |
● |
● |
● |
Note: ● Standard Outfit, ○ Optional
Optical Parameters
|
Model |
Objective |
Working Distance(mm) |
Field of View(mm) |
|
BS-8030B & BS-8030T |
1×-4× |
90.5 |
22-5.5 |
|
0.7×~3.6× |
86 |
26-5.8 |
|
|
BS-8020B |
1× |
75 |
20 |
|
2× |
91 |
91 |
|
|
3× |
69 |
10 |
|
|
4× |
70 |
5 |
