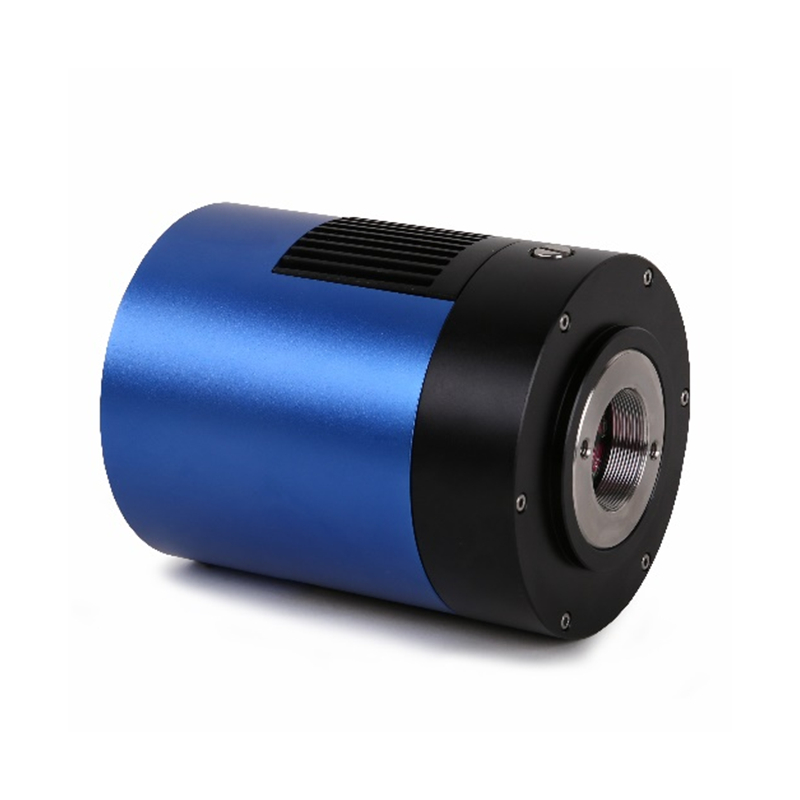

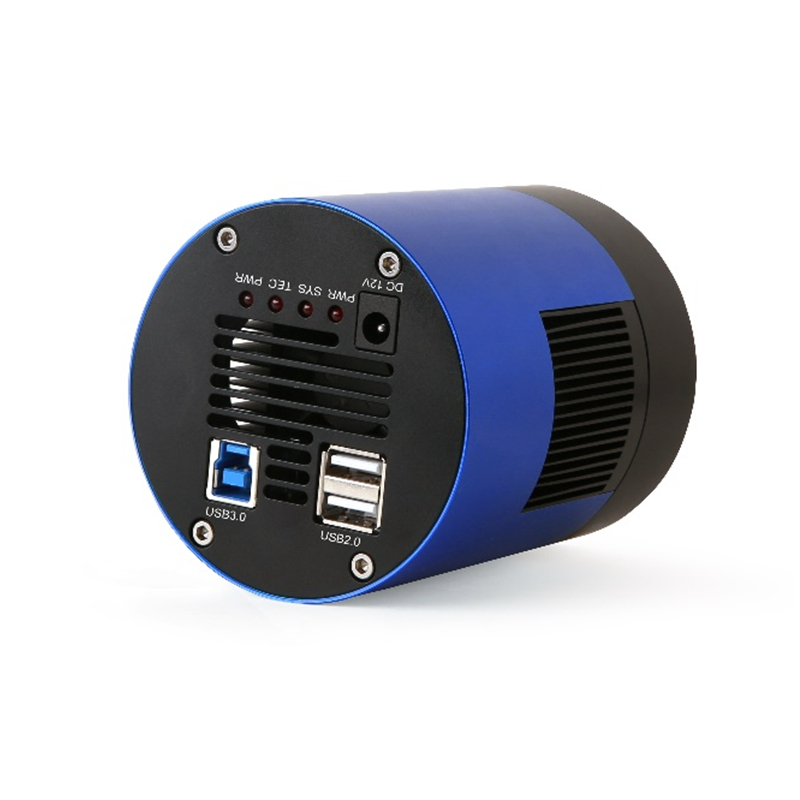

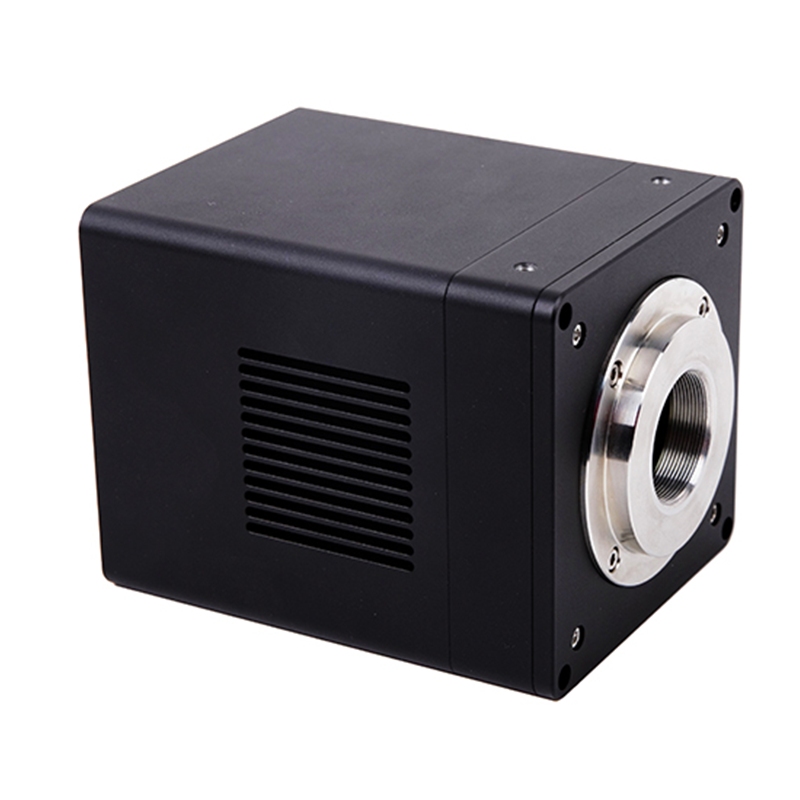

BUC5IB-2000C Cooled C-mount USB3.0 CMOS Camera(Sony IMX183 Sensor)
BUC5IB-2000C Cooled C-mount USB3.0 CMOS Camera(Sony IMX183 Sensor)
BUC5IB-2000C Cooled C-mount USB3.0 CMOS Camera(Sony IMX183 Sensor)
BUC5IB-2000C Cooled C-mount USB3.0 CMOS Camera(Sony IMX183 Sensor)
BUC5IB-2000C Cooled C-mount USB3.0 CMOS Camera(Sony IMX183 Sensor)
BUC5IB-2000C Cooled C-mount USB3.0 CMOS Camera(Sony IMX183 Sensor)
BUC5IB-2000C Cooled C-mount USB3.0 CMOS Camera(Sony IMX183 Sensor)
BUC5IB-2000C Cooled C-mount USB3.0 CMOS Camera(Sony IMX183 Sensor)
BUC5IB-2000C Cooled C-mount USB3.0 CMOS Camera(Sony IMX183 Sensor)
BUC5IB-2000C Cooled C-mount USB3.0 CMOS Camera(Sony IMX183 Sensor)
BUC5IB-2000C Cooled C-mount USB3.0 CMOS Camera(Sony IMX183 Sensor)
BUC5IB-2000C Cooled C-mount USB3.0 CMOS Camera(Sony IMX183 Sensor)

BUC5IB-2000C Cooled C-mount USB3.0 CMOS Camera(Sony IMX183 Sensor)

Introduction

BUC5IB-2000C(With Sony IMX183(C) Sensor) cameras have adopted SONY Exmor CMOS sensor as the image-picking device and USB3.0 is used as the transfer interface to increase the frame rate.

Details

Model:BUC5IB-2000C
Sensor & Size(mm):20M/IMX183(C) 1 “(13.056x8.755)
Pixel(μm):2.4 x2.4
FPS/Resolution:5@5440x3648,10@4096x2160,15@2736x1824,30@1824x1216
Binning:1x1, 1x1, 2x2, 3x3
Exposure:0.1ms~3600s
Spectral Range:380-650nm
USB Port:USB3.0 High-speed Port
Share

Overview

Quick Details

Model:BUC5IB-2000C

Sensor & Size(mm):20M/IMX183(C) 1 “(13.056x8.755)

Pixel(μm):2.4 x2.4

FPS/Resolution:5@5440x3648,10@4096x2160,15@2736x1824,30@1824x1216

Binning:1x1, 1x1, 2x2, 3x3

Exposure:0.1ms~3600s

Spectral Range:380-650nm

USB Port:USB3.0 High-speed Port

Packaging & Delivery

Packaging Details:Strong Carton with Polyfoam Protection

Port:Beijing

Lead Time:Within 1-2 weeks after receiving payment

Introduction

BUC5IB-2000C(With Sony IMX183(C) Sensor) cameras have adopted SONY Exmor CMOS sensor as the image-picking device and USB3.0 is used as the transfer interface to increase the frame rate.

With the two-stage peltier cooling sensor chip to -42 degree below ambient temperature. This will greatly increase the signal to noise ratio and decrease the image noise. Smart structure is designed to assure the heat radiation efficiency and avoid the moisture problem. Electric fan is used to increase the heat radiation speed.

BUC5IB series cameras come with advanced video & image processing application ImageView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API.

The BUC5IB series cameras can be widely used in low light environment and microscope fluorescence image capture and analysis, as well as the astronomy deep sky applications.

Feature

The basic characteristic of BUC5IB can be summarized as follows:

1.Standard C-Mount camera with SONY Exmor CMOS sensors from1.7M to 20M;

2.Two-stage TE-cooling with controllable electric fan;

3.Sensor chip cooling up to 42°C below ambient temperature;

4.Working temperature can be regulated to specified temperature in 5 minutes;

5.Smart structure to assure the heat radiation efficiency and avoid the moisture problem;

6.IR-CUT/ARcoated windows;

7.Up to 1 hour long time exposure;

8.USB3.0 5Gbit/second interface ensuring high speed data transmission;

9.Ultra-FineTMcolor engine with perfect color reproduction capability;

10.With advanced video & image processing application ImageView;

11.Support both video and trigger modes;

12.Providing Windows/Linux/Mac OS multiple platforms SDK;

13.Native C/C++, C#/VB.NET, DirectShow, Twain control API.

Specification

Model

Sensor & Size(mm)

Pixel(μm)

G Sensitivity

Dark Signal

FPS/Resolution

Binning

Exposure

BUC5IB-2100C

21M/IMX269(C)
4/3 “(17.4×13.1)

3.3 x3.3

400mv with 1/30s
0.1mv with 1/30s

5@5280×3956

6@3952×3952

15@2640×1978

50@1760×1318

100@584×440

1×1

1×1

2×2

3×3

9×9

0.1ms~3600s

BUC5IB-2000C

20M/IMX183(C)
1 “(13.056×8.755)

2.4 x2.4

462mv with 1/30s
0.21mv with 1/30s

5@5440×3648

10@4096×2160

15@2736×1824

30@1824×1216

1×1,
1×1,
2×2,
3×3

0.1ms~3600s

BUC5IB-2000M

20M/IMX183(M)
1 “(13.056×8.755)

2.4 x2.4

388mv with 1/30s
0.21mv with 1/30s

(F8.0)

17.8@5440×3648

41@4096×2160

51@2736×1824

64@1824×1216

1×1,
1×1,
2×2,
3×3

0.1ms~3600s

BUC5IB-1600C

16M/MN34230PLJ(C)
4/3“ (17.6×13.3)

3.8×3.8

2413LSB
89.1LSB
(Gain = 0dB)

6@4640×3506
20@2304×1750
48@1536×1160

1×1
2×2
3×3

0.15ms~3600s

BUC5IB-1600M

16M/MN34230ALJ(M)
4/3“ (17.6×13.3)

3.8×3.8

2650LSB
89.1LSB
(Gain = 0dB)

22.5@4648×3506
43.0@2304×1750
48.0@1536×1168

1×1
2×2
3×3

0.15ms~3600s

BUC5IB-1030C

10.3M/IMX294(C)
4/3 “(17.47×12.86)

4.63 x4.63

419mv with 1/30s
0.12mv with 1/30s

7.5@3704×2778
8.5@4096×2160
30@2048×1080
60@1360×720

1×1,
1×1,
2×2,
3×3

0.15ms~3600s

BUC5IB-700C

7.0M/IMX428(C, G)
1.1 “(14.4×9.9)

4.5 x4.5

2058mv with 1/30s
0.15mv with 1/30s

12@3200×2200

33@1600×1100

1×1

1×1

0.1ms~3600s

BUC5IB-700M

7.0M/IMX428(M, G)
1.1 “(14.4×9.9)

4.5 x4.5

3354mv with 1/30s
0.15mv with 1/30s

51@3200×2200
133@1600×1100

1×1

2×2

0.1ms~3600s

BUC5IB-170C

1.7M/IMX432(C, G)
1.1 “(14.4×9.9)

9.0 x9.0

4910mv with 1/30s
0.3mv with 1/30s

33@1600×1100

1×1

0.1ms~3600s

BUC5IB-170M

1.7M/IMX432(M, G)
1.1 “(14.4×9.9)

9.0 x9.0

8100mv with 1/30s
0.3mv with 1/30s

94@1600×1100

1×1

0.1ms~3600s

C:Color; M:Monochrome; G: Global shutter



Other Specification for BUC5IB Cameras

Spectral Range

380-650nm (with IR-cut Filter)

White Balance

ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor

Color Technique

Ultra-FineTM Color Engine/NA for Monochromatic Sensor

Capture/Control API

Native C/C++, C#/VB.NET, DirectShow, Twain and Labview

Recording System

Still Picture and Movie

Cooling System*

Two-stage TE-cooling System -45 °C below Camera Body Temperature

Operating Environment

Operating Temperature (in Centidegree)

-10~ 50

Storage Temperature (in Centidegree)

-20~ 60

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 5V over PC USB Port

External Power Adapter for Cooling System, DC12V, 3A

Software Environment

Operating System

Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit)

OSx(Mac OS X)

Linux

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory: 2GB or More

USB Port: USB3.0 High-speed Port

Display: 17” or Larger

CD-ROM

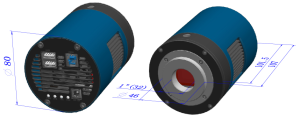

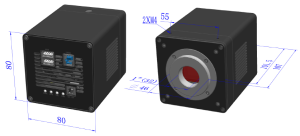

Dimension

The BUC5IB body, made from tough, alloy with CNC technique, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT or AR to block the IR light or protect the camera sensor. The fan‘s vibration is minimized to the low level to eliminate the vibration caused imaging blur. This design ensures a rugged, robust solution with an increased lifespan when compared to the other industrial camera solutions.

Packing Information for BUC5IB Cameras

Standard Package

A

Carton L:50cm W:30cm H:30cm (20pcs, 12~17Kg/ carton), not shown in the photo (TBD)

B

3-A safety equipment case: L:28cm W:23cm H:15cm (1pcs, 2.8Kg/ box); Carton size: L:28.2cm W:25.2cm H:16.7cm (TBD)

C

BUC5IB camera(C-mount)

D

Drying tube and desiccant

E

Power adapter: input: AC 100~240V 50Hz/60Hz, output: DC12 V 3A

F

High-Speed USB3.0 A male to B male gold-plated connectors cable /1.5m

G

CD (Driver & utilities software, Ø12cm)

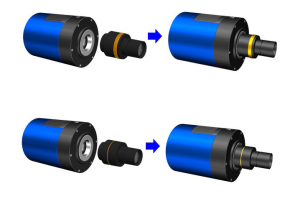

Optional Accessory

H

Adjustable lens adapter

C-mount to Dia.23.2mm eyepiece tube
(Please choose 1 of them for your microscope)

BCN2A-0.37×
BCN2A-0.5×
BCN2A-0.75×

BCN2A-1×

C-Mount to Dia.31.75mm eyepiece tube
(Please choose 1 of them for your telescope)

BCN3A-0.37×
BCN3A-0.5×
BCN3A-0.75×

BCN3A-1×

I

Fixed lens Adapter

C-mount to Dia.23.2mm eyepiece tube
(Please choose 1 of them for your microscope)

BCN2F-0.37×
BCN2F-0.5×
BCN2F-0.75×

BCN2F-1×

C-mount to Dia.31.75mm eyepiece tube
(Please choose 1 of them for your telescope)

BCN3F-0.37×
BCN3F-0.5×
BCN3F-0.75×

BCN3F-1×

Note: For H and I optional items, please specify your camera type (C-mount, microscope camera or telescope camera), our engineer will help you to determine the right microscope or telescope camera adapter for your application.

J

(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube

K

(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube

L

Calibration kit

106011/TS-M1(X=0.01mm/100Div.);
106012/TS-M2(X,Y=0.01mm/100Div.);
106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
