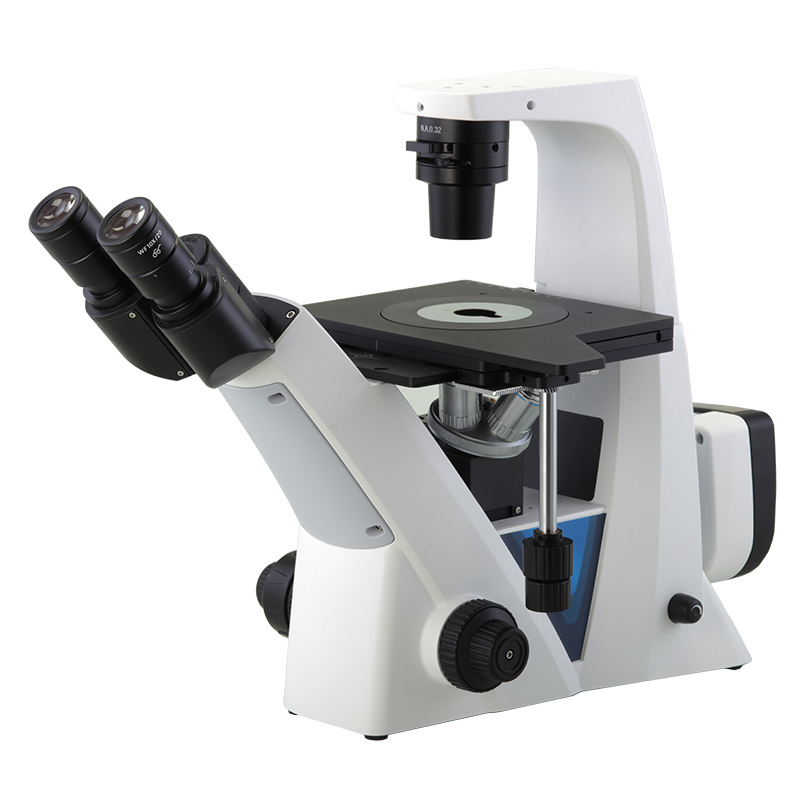

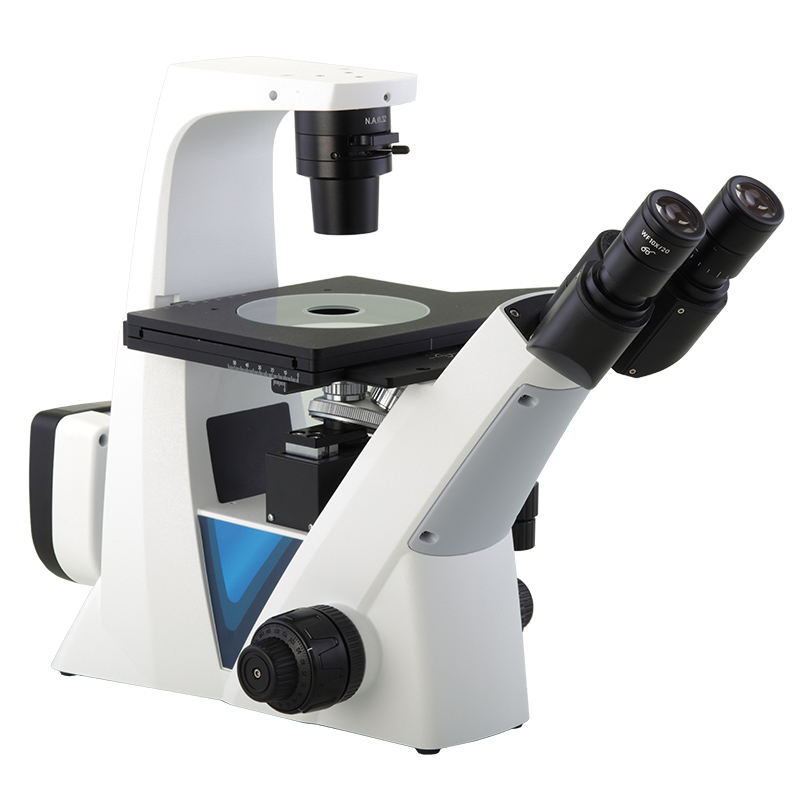

BS-2009 Inverted Biological Microscope
Introduction
BS-2009 Inverted Biological Microscope is perfect for cell tissue observation and cultivation, specially designed for medical and health units, universities, research institutes to observe cultured living cells. With an innovative infinite optical system and ergonomic design, it has excellent optical performance and easy to operate features.
Details
Overview
Packaging & Delivery
Packaging Details:Strong Carton with Polyfoam Protection
Port:Beijing
Lead Time:Within 3-4 Weeks after Receiving Payment
Introduction
BS-2009 Inverted Biological Microscope is perfect for cell tissue observation and cultivation, specially designed for medical and health units, universities, research institutes to observe cultured living cells. With an innovative infinite optical system and ergonomic design, it has excellent optical performance and easy to operate features. This inverted biological microscope makes your work enjoyable. Digital cameras can be added to the trinocular head to take photos, videos and make measurement.
Features
1.Excellent infinite optical system
Infinity optical system, perfect for cell tissue observation and cultivation.
2.Viewing head
Butterfly binocular head, 360°rotatable, more convenient for users with different height.
3.Stage
Two types stage, applicable to samples of different sizes.

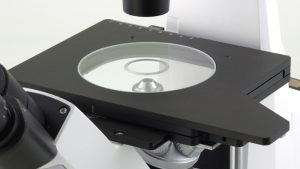

180mm*155mm mechanical stage

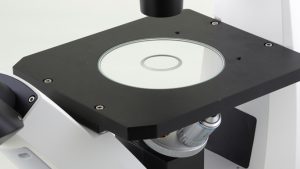

180mm*203mm fixed stage

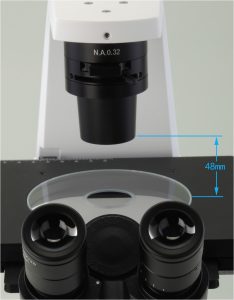

4.Long working distance condenser
Long working distance condenser NA 0.32, WD=48mm.

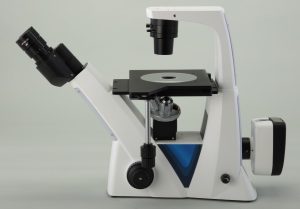

5.Camera adapter
Digital camera is located at the back of the microscope, which does not interfere with the user’s operation.

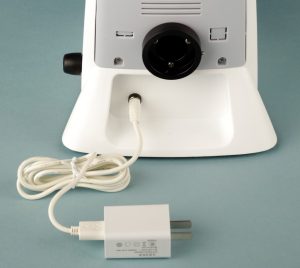

6.Power supply
5-12V low voltage input, to ensure safe use.
Built-in LED illumination system which can be powered with power bank, laptop and vehicle power, ensures it being used anywhere and any condition.
7.Objectives
New designed objectives for both bright field and phase contrast observation, not necessary to change objectives.
Specification
|
Item |
Specification |
BS-2009 |
|
|
Optical System |
Infinite Optical System |
● |
|
|
Viewing Head |
Inclined 45° trinocular tube, interpupillary distance: 48-75mm, splitting ratio: eyepiece: trinocular=70:30 |
● |
|
|
Eyepiece |
High eyepoint wide field eyepiece WF10X/20mm, eyepiece tube diameter Φ23.2mm |
● |
|
|
Objective |

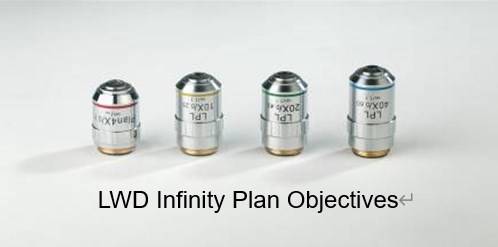

Infinity Long Working Distance Plan Objectives |
4X/NA=0.11, WD=12.1mm |
○ |
|
10X/NA=0.25, WD=10.3mm |
● |
||
|
20X/NA=0.45, WD=5.8mm |
○ |
||
|
40X/NA=0.65, WD=5.1mm |
● |
||
|
Infinity Long Working Distance Plan Phase Contrast Objectives |
10X/NA=0.25, WD=10.3mm |
○ |
|
|
20X/NA=0.45, WD=5.8mm |
● |
||
|
40X/NA=0.65, WD=5.1mm |
○ |
||
|
Nosepiece |
Quadruple nosepiece |
● |
|
|
Centering Telescope |
Centering telescope (Φ23.2mm) |
○ |
|
|
Phase Annular Plate |
10X phase annular plate |
○ |
|
|
20X/40X phase annular plate, for both 20X and 40X |
● |
||
|
Stage |
Three-layer mechanical stage. Stage size: 180mm(X)*155mm(Y), moving range: 75mm*40mm. Scale: 0.1mm, round slide size: Φ110mm. |
● |
|
|
Fixed stage, stage size: 180mm*204mm. |
○ |
||
|
Glass holder, outer diameter Φ110mm, inner diameter Φ30mm |
● |
||
|
Drop-shaped metal holder, outer diameter Φ110mm, inner diameter Φ25mm |
○ |
||
|
Focusing |
Coaxial coarse and fine focusing adjustment, coarse stroke: 10mm, fine stroke per rotation: 0.2mm, fine division 2um. |
● |
|
|
Condenser |
Long working distance condenser, N.A.0.32. Working distance:48mm |
● |
|
|
Illumination |
5W LED lamp, input voltage: 100V-240V |
● |
|
|
Filter |
Green filter (Φ21mm) |
● |
|
|
Blue filter (Φ21mm) |
○ |
||
|
Yellow filter (Φ21mm) |
○ |
||
|
Grey filter (Φ21mm) |
○ |
||
|
C-mount |
Built-in 0.65X C-mount adapter |
● |
|
|
Packing |
Packing size: 515mm*480mm*315mm, gross weight: 9kg, net weight: 7kg |
● |
|
Note: ● Standard Outfit, ○ Optional
Application
BS-2009 Inverted microscope is used by medical and health units, universities, research institutes for observations of micro-organisms, cells, bacteria and tissue cultivation. It can be used for continuous observation of process of cells, bacteria grow and divide in the culture medium. Videos and images can be taken during the process. This microscope is widely used in cytology, parasitology, oncology, immunology, genetic engineering, industrial microbiology, botany and other fields.
