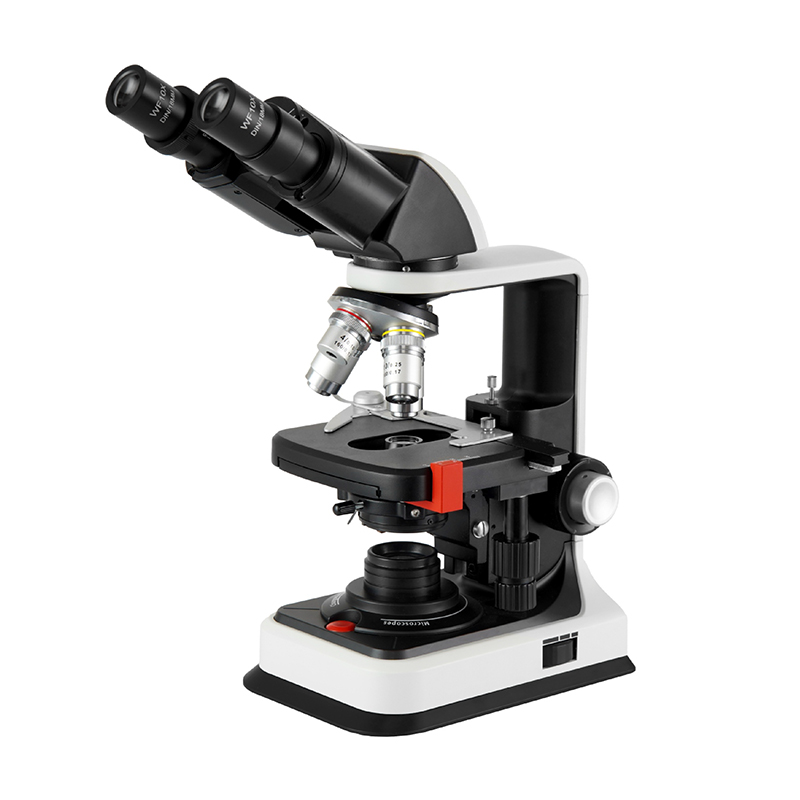

BS-2024B Binocular Biological Microscope
Introduction
BS-2024B microscope is high quality and high cost-effectiveness biological microscopes, which is ideal choice for basic research and teaching experiments.
Details
Overview
Packaging & Delivery
Packaging Details:Strong Carton with Polyfoam Protection
Port:Beijing
Lead Time:Within 1-4 Weeks after Receiving Payment
Introduction
BS-2024B microscope is high quality and high cost-effectiveness biological microscopes, which is ideal choice for basic research and teaching experiments. With finite color correction optical system, BS-2024B can get clear and bright images at any magnification.
User-friendly design, simple and convenient operation, even students can easily operate. Maintains excellent reliability and durability, suitable for high-intensity use in the education area.
Features

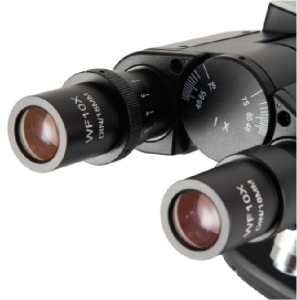

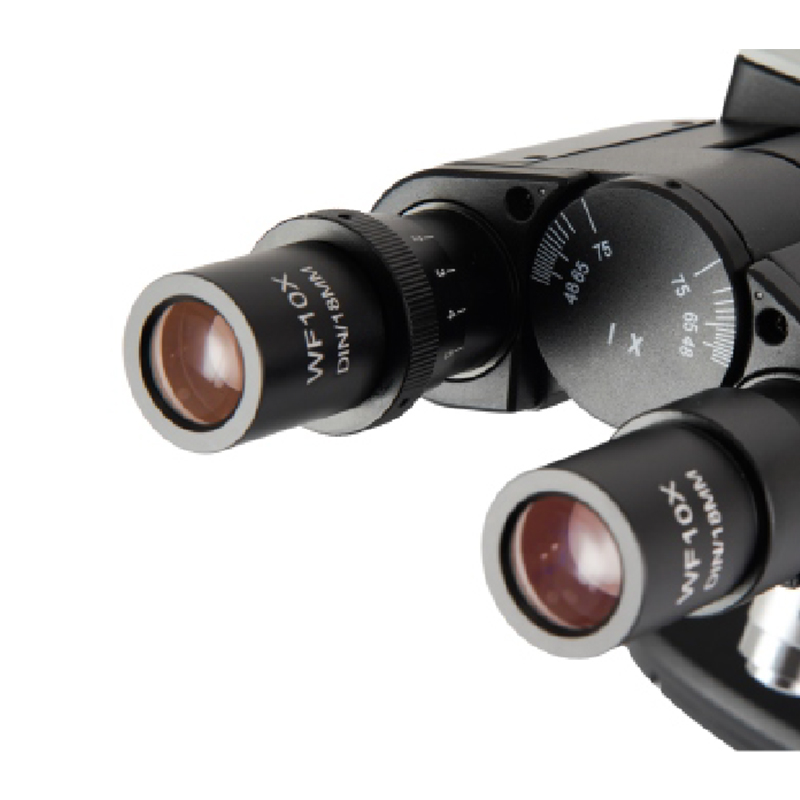

1.Eyepiece
Wide field 10X/18mm eyepieces. There are also WF16X, WF20X, WF25X for option.

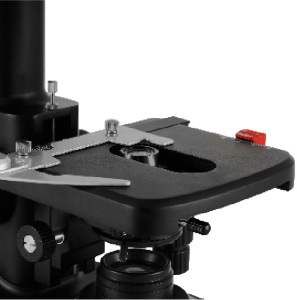

2.Stage
Double-layer mechanical stage, easy and precise.
3.Winding board
There is a winding board on the back of microscope body, convenient for organizing power cord.

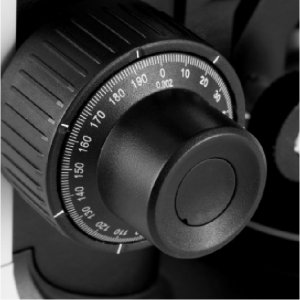

4.Gearbox for option
Coaxial coarse and fine focusing, fine precision 0.02mm. With the gearbox, fine precision can be 0.002mm.

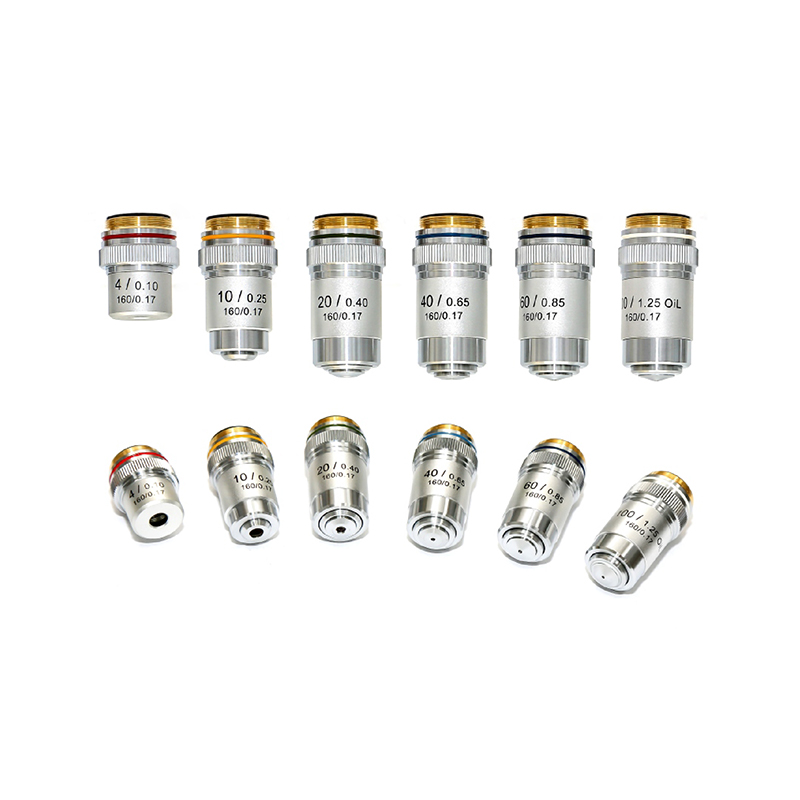

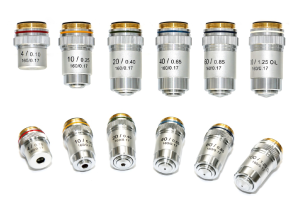

5.Objectives
4X, 10X, 40X and 100X 195mm finite achromatic objectives for standard. Finite e-plan achromatic objectives for option.
Application
BS-2024B microscope is ideal instruments in biological, pathological, histological, bacterial, immune, pharmacological and genetic fields. It can be widely used in education, medical and sanitary establishments, such as schools, hospitals, clinics, laboratories, medical academies, colleges, universities and related teaching labs and research centers.
Specification
|
Item |
Specification |
BS-2024M |
BS-2024B |
BS-2024T |
|
|
Optical System |
Finite Color Corrected Optical System |
● |
● |
● |
|
|
Viewing Head |
Monocular head, 30° inclined, interpupillary distance: 48-75mm |
● |
|
|
|
|
Binocular head, 30° inclined, interpupillary distance: 48-75mm |
|
● |
|
||
|
Trinocular head, 30° inclined, interpupillary distance: 48-75mm, splitting ratio=50:50 |
|
|
● |
||
|
Eyepiece |
Wide field eyepiece WF10X/18mm |
● |
● |
● |
|
|
Wide field eyepiece WF16X |
○ |
○ |
○ |
||
|
Wide field eyepiece WF20X |
○ |
○ |
○ |
||
|
Wide field eyepiece WF25X |
○ |
○ |
○ |
||
|
Objectives |
Finite Achromatic Objectives |
4X/NA=0.1 |
● |
● |
● |
|
10X/NA=0.25 |
● |
● |
● |
||
|
40X/NA=0.65 |
● |
● |
● |
||
|
100X (Oil)/NA=1.25 |
● |
● |
● |
||
|
Finite E-Plan Achromatic Objectives |
4X/NA=0.1 |
○ |
○ |
○ |
|
|
10X/NA=0.25 |
○ |
○ |
○ |
||
|
40X/NA=0.65 |
○ |
○ |
○ |
||
|
100X (Oil)/NA=1.25 |
○ |
○ |
○ |
||
|
Nosepiece |
Quadruple Nosepiece |
● |
● |
● |
|
|
Upgraded Quadruple Nosepiece |
○ |
○ |
○ |
||
|
Stage |
Double layers mechanical stage, size: 115mm*125mm, moving range: 80mm*30mm |
● |
● |
● |
|
|
Focusing System |
Coarse and fine coaxial focus system with gear box, fine precision 0.002mm |
● |
● |
● |
|
|
Condenser |
N.A.1.25 abbe condenser, with adjustable aperture |
● |
● |
● |
|
|
Filters |
Blue filter |
○ |
○ |
○ |
|
|
Yellow filter |
○ |
○ |
○ |
||
|
Neutral filter |
○ |
○ |
○ |
||
|
Illumination |
LED lamp, 1W, brightness adjustable, rechargeable |
● |
● |
● |
|
|
Power Supply |
Input: AC 100-240V. Output: DC 5V-12V/1A. Type-C interface. |
● |
● |
● |
|
|
Adapter |
1.0X C-mount adapter |
|
|
● |
|
Note: ● Standard Outfit, ○ Optional
